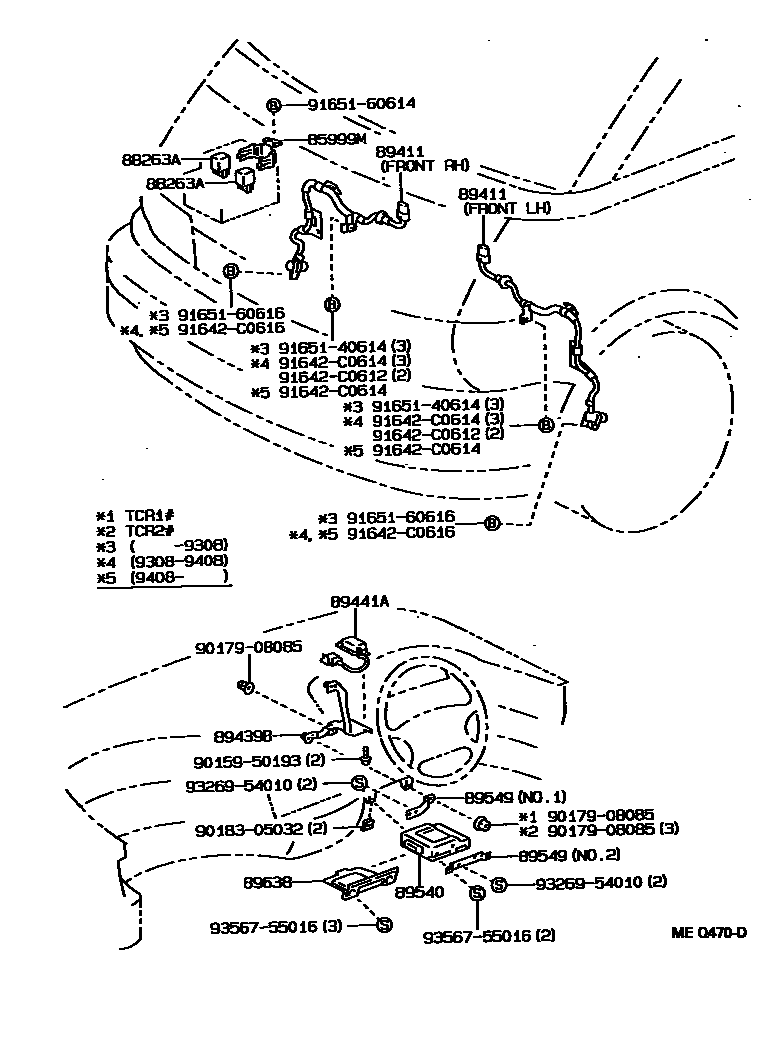

ABS & VSC

0001 1 0002 1 0003 1

85999MBRACKET, RELAY

main85999-28350iTCR10,20199408-199608

main85999-28400iTCR11,21199408-199608

main85999-28480iTCR1#,2#..SPC199608-199912

main85999-28510iTCR10,20..X199608-199801

88263ARELAY, SKID CONTROL

main88263-12110iTCR1#,2#199608-199912

MOTOR

main88263-14110iTCR1#,2#199005-199408

MOTOR

main88263-14120iTCR1#,2#199005-199408

SOLENOID

main88263-35070iTCR1#,2#199408-199912

SOLENOID

main89633-50030iTCR1#,2#199408-199608

MOTOR

89411SENSOR, SPEED

main89542-28010iTCR1#,2#199005-199308

FRONT RH

main89542-28040iTCR1#,2#199308-199608

FRONT RH

main89542-28050iTCR1#,2#199608-199912

FRONT RH

main89543-28010iTCR1#,2#199005-199308

FRONT LH

main89543-28040iTCR1#,2#199308-199608

FRONT LH

main89543-28050iTCR1#,2#199608-199912

FRONT LH

main89545-28011iTCR10,20199302-199308

REAR RH

main89545-28020iTCR11,21199005-199308

REAR RH

main89545-28050iTCR10,20199308-199608

REAR RH

main89545-28060iTCR11,21199308-199608

REAR RH

main89545-28090iTCR10,20199608-199912

REAR RH

main89545-28100iTCR11,21199608-199912

REAR RH

main89546-28010iTCR10,20199302-199308

REAR LH

main89546-28020iTCR11,21199005-199308

REAR LH

main89546-28050iTCR10,20199308-199608

REAR LH

main89546-28060iTCR11,21199308-199608

REAR LH

main89546-28090iTCR10,20199608-199912

REAR LH

main89546-28100iTCR11,21199608-199912

REAR LH

89439BBRACKET, SENSOR

main89439-28020iTCR2#199005-199608

89441ASENSOR, DECELERATION

main89441-20030iTCR2#199005-199308

main89441-28020iTCR2#199308-199608

89540COMPUTER ASSY, SKID CONTROL

main89540-28320iTCR1#199801-199912

main89540-28330iTCR2#199801-199912

main89541-28011iTCR1#199005-199308

main89541-28021iTCR2#199005-199308

main89541-28060iTCR1#199308-199608

main89541-28070iTCR2#199308-199608

main89541-28080iTCR1#199608-199801

main89541-28090iTCR2#199608-199801

89549BRACKET, SKID CONTROL COMPUTER

main86285-28070iTCR10,20199608-199912

main86285-28080iTCR10,20199608-199912

main88267-28060iTCR1#199005-199308

main88267-28070iTCR2#199005-199308

main88267-28110iTCR1#199308-199608

main88267-28120iTCR2#199308-199608

main88268-28060iTCR1#,2#199005-199308

main88268-28080iTCR1#,2#199308-199608

main89549-28120iTCR10,20; TCR10,20..V; TCR10,20..X; TCR11,21199608-199801

89638COVER, BRAKE CONTROL COMPUTER

main89638-28010iTCR10,20199302-199608

9015950193

main90159-50193

9017908085

main90179-08085

9018305032

main90183-05032

91642C0612

main91642-C0612

91642C0614

main91642-C0614

91642C0616

main91642-C0616

9165140614

main91651-40614

9165160614

main91651-60614

9165160616

main91651-60616

9326954010

main93269-54010

9356755016

main93567-55016

19 parts on this diagram · 3 diagrams in section
