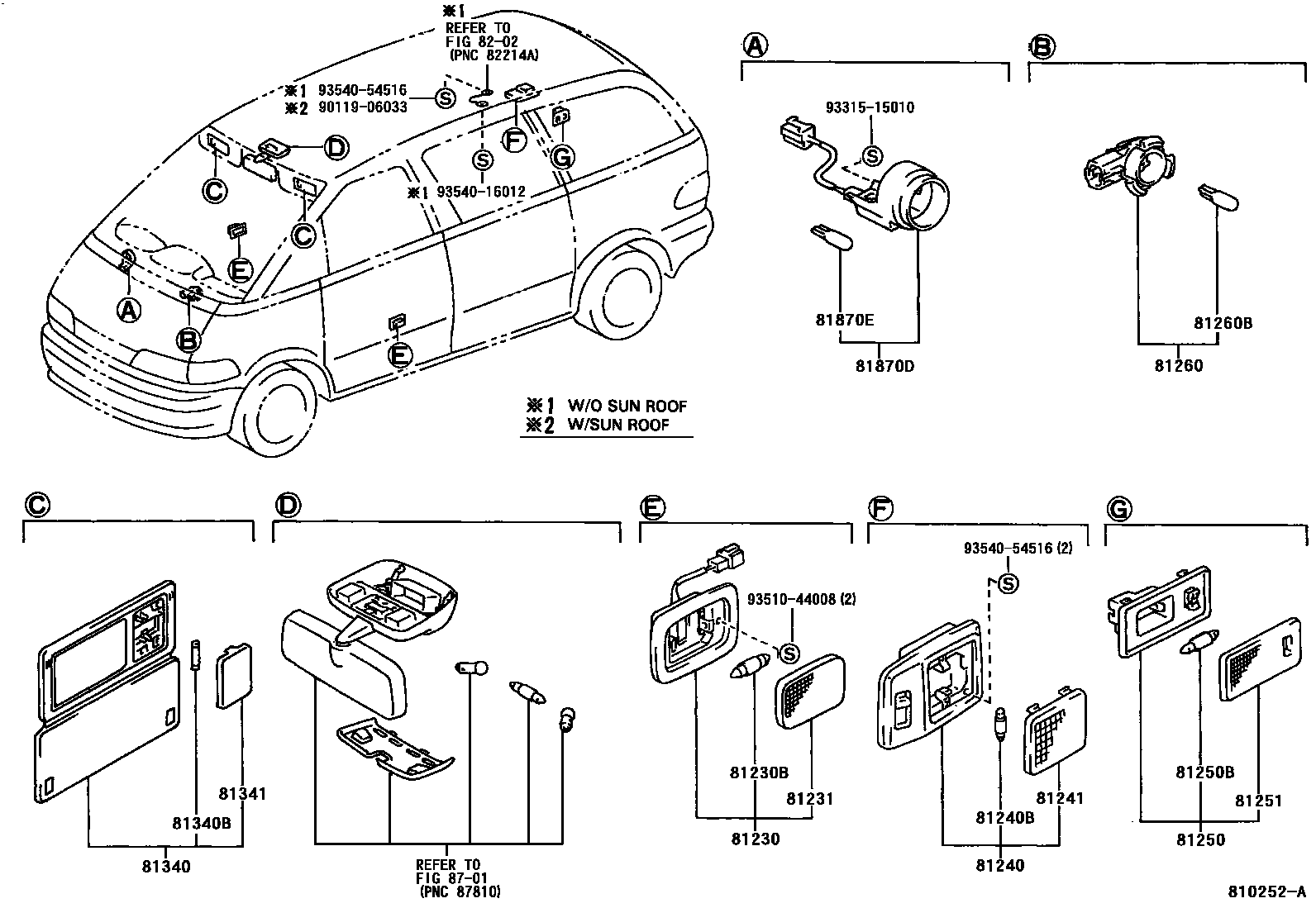

INTERIOR LAMP

81230LAMP ASSY, COURTESY

main81230-28020-B0×2iTCR1#,2#199108-199912

GRAY,TRIM1#

main81230-28020-E1×2iTCR10,20..V199708-199712

81230BBULB(FOR COURTESY LAMP)

main90981-14001×2iTCR1#,2#199108-199912

81231LENS, COURTESY LAMP

main81231-28020×2iTCR1#,2#199108-199912

81240LAMP ASSY, ROOM, NO.1

main81240-95D01-03iTCR1#,2#199005-199308

LIGHT GRAY,TRIM1#

main81240-95D01-05iTCR11,21199005-199308

LIGHT GRAIGE,TRIM4#

main81240-95D01-B2iTCR1#,2#199801-199912

LT.GRAY,TRIM1#

main81240-95D01-B8iTCR1#,2#199308-199801

LIGHT GRAY,TRIM1#

main81240-95D01-L1iTCR10,20..V199708-199712

81240BBULB, ROOM LAMP, NO.1

main99132-12100iTCR1#,2#199005-199912

81241LENS, ROOM LAMP, NO.1

main81241-30100iTCR1#,2#199005-199912

81250LAMP ASSY, ROOM, NO.2

main81250-12030-13iTCR1#,2#199005-199308

GRAY,TRIM1#

main81250-12030-B1iTCR1#,2#..AERAS,G,V,X199308-199912

BLUISH GRAY,TRIM1#

main81250-12030-E2iTCR10,20..V199704-199708

81250BBULB, ROOM LAMP, NO.2

main99132-13050iTCR1#,2#199005-199912

81251LENS, ROOM LAMP, NO.2

main81251-12030iTCR1#,2#199005-199912

81260LAMP ASSY, GLOVE BOX

main81260-32071iTCR1#,2#199005-199912

81260BBULB(FOR GLOVE BOX)

main90981-11018iTCR1#,2#199005-199912

81340LAMP ASSY, VANITY

main81340-28011-B0×2iTCR1#; TCR2#199308-199801

main81340-28011-E0×2iTCR11; TCR21199308-199408

main81340-28021-B0iTCR2#199308-199801

main81340-28021-E0iTCR21199308-199408

main81340-33090-B5iTCR1#,2#199801-199912

main81340-33090-E1iTCR10,20..V199810-199912

main81340-95D00-03×2iTCR1#199005-199308

LIGHT GRAY,TRIM1#

main81340-95D00-05iTCR21199108-199308

main81340-95D01-03iTCR21199005-199108

LIGHT GRAY,TRIM1#

main81340-95D01-05iTCR21199108-199308

main81350-33040-B5iTCR1#,2#199801-199912

81340BBULB (FOR VANITY LAMP)

main90981-14003×2iTCR1#,2#199801-199912

main90981-14007×2iTCR1#,2#199108-199801

81341LENS, VANITY LAMP

main81341-95D00iTCR11,21199108-199308

81870DLAMP ASSY, KEY CYLINDER

main81870-28020iTCR1#,2#199005-199912

81870EBULB, KEY CYLINDER LAMP

main90981-11014iTCR1#,2#199005-199912

8202WIRING & CLAMP

→ Go to FIG 82-02

8701MIRROR

→ Go to FIG 87-01

9011906033

main90119-06033

9331515010

main93315-15010

9351044008

main93510-44008

9354016012

main93540-16012

9354054516

main93540-54516

23 parts on this diagram · 1 diagram in section
