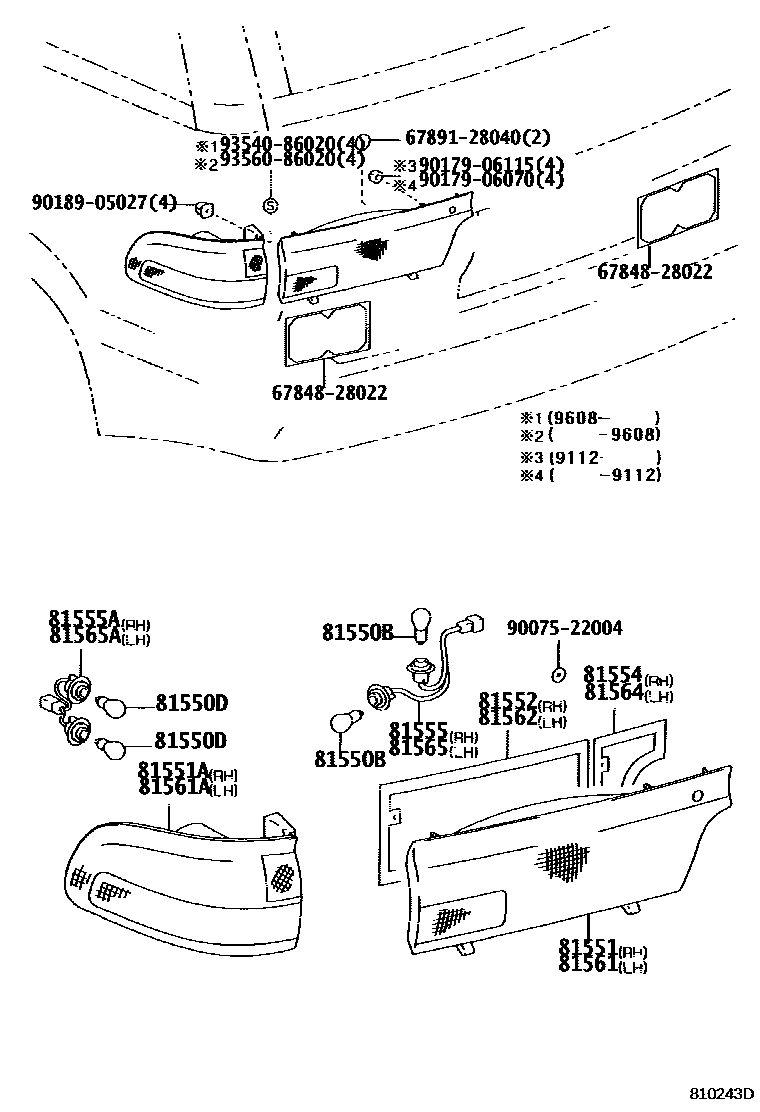

REAR COMBINATION LAMP

0001 1 0002 1

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11039×2iTCR1#,2#199801-199912

sub90981-11059

main90981-13051×4iTCR1#,2#199801-199912

sub90981-11048

main99132-11210×2iTCR1#,2#199005-199801

main99132-21210×2iTCR1#,2#199005-199801

81550DBULB(FOR REAR COMBINATION LAMP)

main90981-13044×2iTCR1#,2#199801-199912

main90981-15009×2iTCR1#,2#199801-199912

main99132-11210×2iTCR1#,2#199005-199801

main99132-21210×2iTCR1#,2#199005-199801

81551LENS, REAR COMBINATION LAMP, RH

main81551-28150iTCR1#,2#199801-199912

main81551-95D02iTCR1#,2#199005-199801

81551ALENS, REAR COMBINATION LAMP, RH

main81551-28100iTCR1#,2#199801-199912

main81551-28200iTCR1#,2#199410-199801

main81551-95D03iTCR1#,2#199005-199410

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-95D02iTCR1#,2#199005-199801

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-95D02iTCR1#,2#199005-199801

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-28150iTCR1#,2#199801-199912

sub81555-28490

main81555-95D07iTCR1#,2#199005-199801

81555ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-28100iTCR1#,2#199801-199912

main81555-95D01iTCR1#,2#199005-199801

81561LENS, REAR COMBINATION LAMP, LH

main81561-28120iTCR1#,2#199801-199912

main81561-95D02iTCR1#,2#199005-199801

81561ALENS, REAR COMBINATION LAMP, LH

main81561-28090iTCR1#,2#199801-199912

main81561-28180iTCR1#,2#199410-199801

main81561-95D03iTCR1#,2#199005-199410

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81562-95D02iTCR1#,2#199005-199801

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-95D02iTCR1#,2#199005-199801

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-28150iTCR1#,2#199801-199912

sub81555-28490

main81555-95D07iTCR1#,2#199005-199801

81565ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-28100iTCR1#,2#199801-199912

main81555-95D01iTCR1#,2#199005-199801

6784828022COVER, BACK DOOR SERVICE HOLE, LH

main67848-28022

6789128040WEATHERSTRIP, REAR DOOR PANEL

main67891-28040

9007522004

main90075-22004

9017906070

main90179-06070

9017906115

main90179-06115

9018905027

main90189-05027

9354086020

main93540-86020

9356086020

main93560-86020

22 parts on this diagram · 2 diagrams in section
