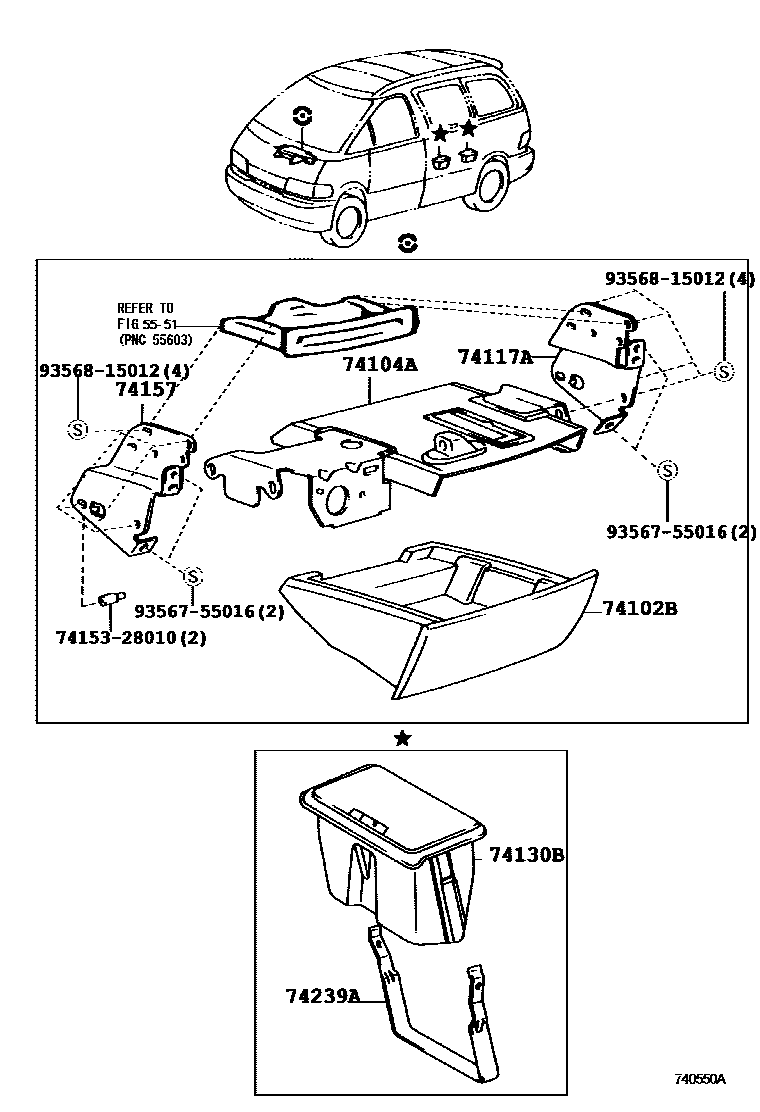

ASH RECEPTACLE

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-95D00-03iTCR1#,2#199005-199308

GRAY,TRIM1#

main74102-95D00-05iTCR11,21199005-199308

GREIGE,TRIM4#

main74102-95D00-17iTCR1#,2#199308-199912

GRAY,TRIM1#

main74102-95D00-44iTCR10,20..V199810-199912

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-95D02iTCR1#,2#199005-199912

74117ABRACKET, FRONT ASH RECEPTACLE MOUNTING, RH

main74117-95D00iTCR1#,2#199005-199912

74130BRECEPTACLE ASSY, REAR ASH

main74130-95D00-03×2iTCR1#,2#199005-199308

GRAY,TRIM1#

main74130-95D00-05×2iTCR11,21199005-199308

GREIGE,TRIM4#

main74130-95D00-B0×2iTCR1#,2#199308-199912

GRAY,TRIM1#

main74130-95D00-E2iTCR10,20..V199704-199708

74157BRACKET, FRONT ASH RECEPTACLE MOUNTING, LH

main74157-95D00iTCR1#,2#199005-199912

74239AHOLDER, REAR ASH RECEPTACLE

main74239-95D00×2iTCR1#,2#199005-199912

7415328010

main74153-28010

9356755016

main93567-55016

9356815012

main93568-15012

10 parts on this diagram · 1 diagram in section
