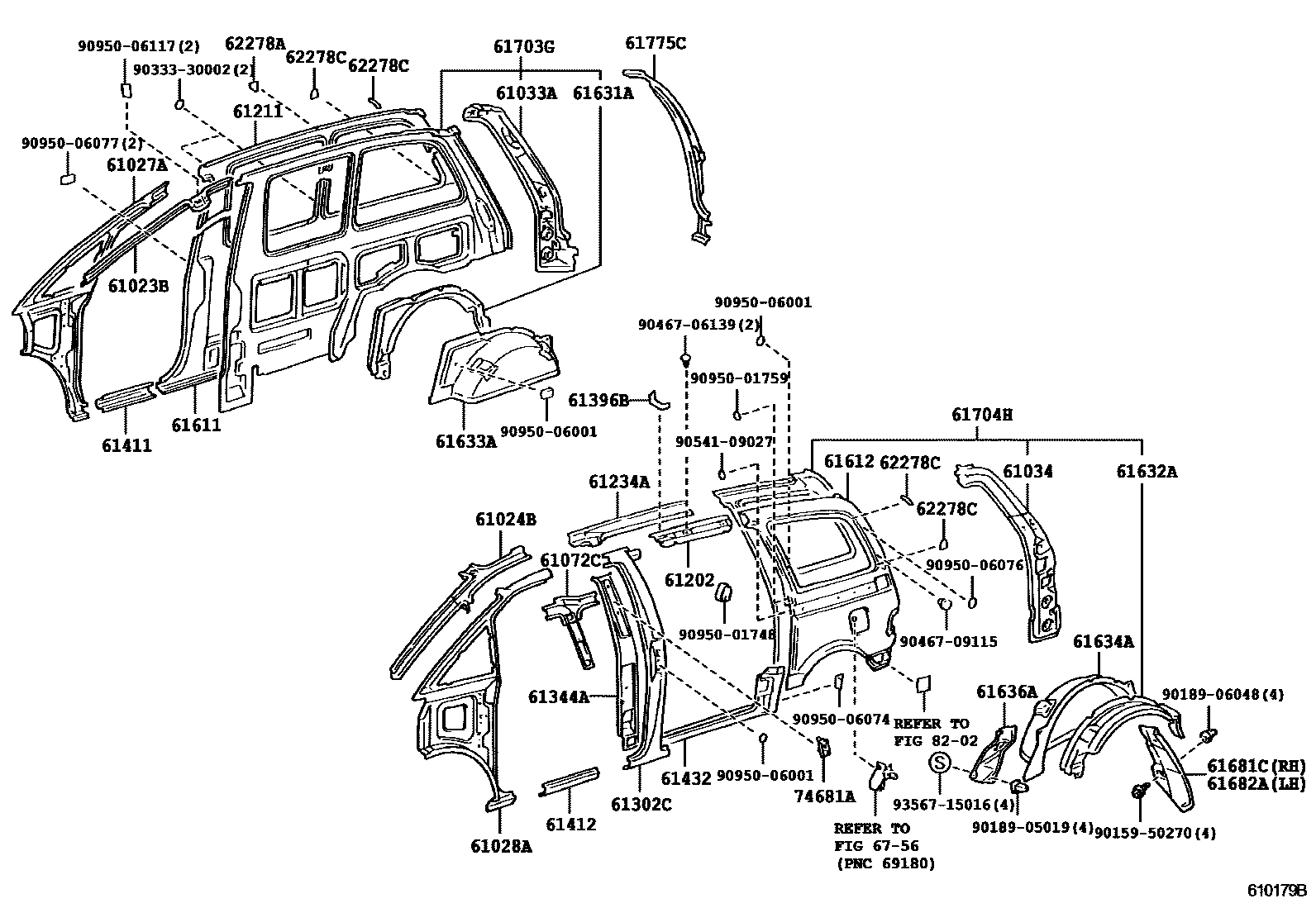

SIDE MEMBER

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-28050iTCR1#,2#199108-199912

main61023-95D03iTCR11,21199005-199108

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-28050iTCR1#,2#199108-199912

main61024-95D03iTCR11,21199005-199108

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-28040iTCR11,21199005-199912

main61027-28050iTCR10,20199302-199912

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-28090iTCR1#,2#199005-199912

main61028-28140iTCR1#,2#199103-199408

61033AREINFORCE SUB-ASSY, BACK DOOR OPENING SIDE

main61033-95D00iTCR1#,2#199005-199912

61034REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH

main61034-95D00iTCR1#,2#199005-199912

61072CREINFORCEMENT SUB-ASSY, SEAT BELT ANCER, UPPER LH

main61072-95D00iTCR1#,2#199005-199912

61202RAIL SUB-ASSY, ROOF SIDE, LH

main61202-28010iTCR1#,2#199005-199912

61211RAIL, ROOF SIDE, OUTER RH

main61201-28110iTCR1#,2#199005-199912

61234ARAIL, ROOF SIDE, INNER NO.2 LH

main61234-28050iTCR1#,2#199412-199912

main61234-95D00iTCR1#,2#199005-199912

61302CPILLAR SUB-ASSY, CENTER BODY, OUTER LH

main61302-28020iTCR11,21199108-199212

main61302-28030iTCR11,21199005-199108

main61302-28090iTCR1#,2#..G,V,X199302-199912

main61302-28100iTCR1#,2#..AERAS,STD199212-199912

main61302-28100iTCR1#,2#..G,V,X199308-199912

61344APILLAR, CENTER BODY, INNER LH

main61344-95D00iTCR1#,2#199005-199912

61396BSEAL, CENTER BODY PILLAR, LH

main61395-95D00iTCR1#,2#199005-199912

61411PANEL, ROCKER, OUTER RH

main61411-28010iTCR1#,2#199005-199912

61412PANEL, ROCKER, OUTER LH

main61412-28010iTCR1#,2#199005-199912

61432PANEL, ROCKER, OUTER REAR LH

main61432-95D00iTCR1#,2#199005-199912

61611PANEL, QUARTER, RH

main61601-28A00iTCR1#,2#199108-199912

main61601-28A10iTCR11,21199005-199108

61612PANEL, QUARTER, LH

main61602-28100iTCR11,21199005-199108

main61602-28110iTCR1#,2#199108-199306

main61602-28111iTCR1#,2#199306-199912

main61602-28120iTCR1#,2#199108-199306

main61602-95D16iTCR11,21199005-199108

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-95D01iTCR1#,2#199005-199912

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-95D01iTCR1#,2#199005-199912

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-28040iTCR10,20199302-199912

main61607-95D00iTCR11,21199005-199912

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-28040iTCR10,20199302-199912

main61608-95D01iTCR11,21199005-199912

61636ABRACE, QUARTER WHEEL HOUSE, LH

main61636-95D00iTCR1#,2#199005-199912

61681CEXTENSION, REAR WHEEL OPENING, RH

main61681-95D00iTCR1#,2#199005-199912

61682AEXTENSION, REAR WHEEL OPENING, LH

main61682-95D00iTCR1#,2#199005-199912

61703GPANEL SUB-ASSY, QUARTER, INNER RH

main61703-2J470iTCR1#,2#199608-199912

main61703-95D12iTCR1#,2#199005-199912

61704HPANEL SUB-ASSY, QUARTER, INNER LH

main61704-28120iTCR11,21199005-199912

main61704-2J290iTCR11,21199608-199912

main61704-2J300iTCR10,20199608-199912

main61704-95D02iTCR10,20199302-199912

61775CFRAME, BACK DOOR OPENING SIDE, RH

main61705-95D00iTCR1#,2#199005-199912

62278APROTECTOR, SIDE WINDOW

main62278-28010iTCR1#,2#199005-199912

UPPER

main62278-28020iTCR1#,2#199005-199912

LOWER

main62278-28030iTCR10,20199302-199912

62278CPROTECTOR, SIDE WINDOW

main62278-28020iTCR1#,2#199005-199912

main62278-28030iTCR1#,2#199005-199912

main62278-28040iTCR1#,2#199005-199912

6756REAR DOOR LOCK & HANDLE

→ Go to FIG 67-56

74681ARETAINER, ASSIST GRIP

main74681-28040iTCR1#,2#199308-199912

8202WIRING & CLAMP

→ Go to FIG 82-02

9015950270

main90159-50270

9018905019

main90189-05019

9018906048

main90189-06048

9033330002

main90333-30002

9046706139

main90467-06139

9046709115

main90467-09115

9054109027

main90541-09027

9095001748

main90950-01748

9095001759

main90950-01759

9095006001

main90950-06001

9095006074

main90950-06074

9095006076

main90950-06076

9095006077

main90950-06077

9095006117

main90950-06117

9356715016

main93567-15016

48 parts on this diagram · 1 diagram in section
