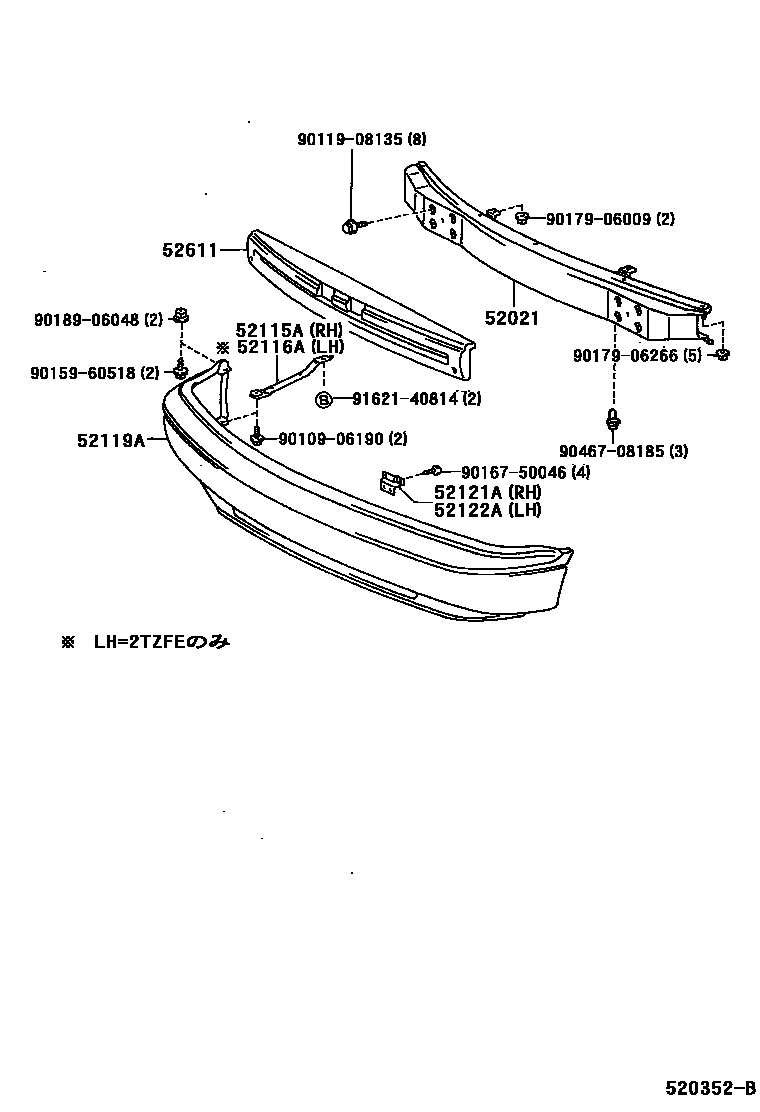

FRONT BUMPER & BUMPER STAY

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-28050iTCR1#,2#..SPC; TCR10,20..X199608-199801

main52021-28060iTCR1#,2#199108-199308

main52021-28140iTCR1#,2#199801-199912

main52021-95D01iTCR11,21199005-199108

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-28050iTCR1#,2#199408-199912

main52115-95D00iTCR1#,2#199005-199408

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52115-28050iTCR10,20..X199408-199801

main52115-95D00iTCR1#,2#199005-199408

52119ACOVER, FRONT BUMPER

main52119-28220-B0iTCR10,20199408-199608

main52119-28220-B1iTCR10,20199408-199608

main52119-28290-A0iTCR10,20..V199804-199912

main52119-28290-B0iTCR11,21199408-199608

main52119-28290-B1iTCR1#,2#..G,V199801-199912

main52119-28290-B2iTCR10,20..V199904-199912

main52119-28290-B3iTCR1#,2#..G,V199803-199912

main52119-28290-D0iTCR1#,2#..SPC; TCR10,20..X199608-199801

main52119-28290-E0iTCR11,21199408-199608

main52119-28290-E1iTCR1#,2#..G,V199801-199912

main52119-28300-B0iTCR11,21199408-199608

main52119-28300-E0iTCR11,21199408-199608

main52119-28390-A0iTCR10,20..AERAS199801-199912

WHITE PEARL,042

main52119-28390-D0iTCR10,20..AERAS199801-199912

GRAY,191

main52119-28490-B0iTCR1#,2#..G,V199801-199912

main52119-28490-D0iTCR1#,2#..G,V199801-199912

main52119-28490-E0iTCR1#,2#..SPC199608-199801

main52119-95D04-03iTCR11,21199308-199408

main52119-95D04-06iTCR11,21199005-199108

main52119-95D04-13iTCR11,21199005-199108

main52119-95D05-03iTCR11,21199005-199308

GRAY M,6L3 ,8G2 ,8H4

main52119-95D05-06iTCR11,21199005-199108

BROWN M,4K9 ,4L6

main52119-95D05-13iTCR11,21199108-199408

GRAY M,046 ,3J7 ,4K9

main52119-95D06-03iTCR10,20199308-199408

COOL GRAY,6L3 ,8H4

main52119-95D06-13iTCR10,20199302-199408

WARM GRAY,3J7

52121ABRACKET, FRONT LICENSE PLATE MOUNTING, RH

main52121-95D00iTCR1#,2#199005-199912

52122ABRACKET, FRONT LICENSE PLATE MOUNTING, LH

main52122-95D00iTCR1#,2#199005-199912

52611ABSORBER, FRONT BUMPER ENERGY

main52611-28050iTCR10,20..AERAS199810-199912

main52611-28060iTCR10,20..AERAS199801-199912

main52611-95D00iTCR1#,2#199005-199408

9010906190

main90109-06190

9011908135

main90119-08135

9015960518

main90159-60518

9016750046

main90167-50046

9017906009

main90179-06009

9017906266

main90179-06266

9018906048

main90189-06048

9046708185

main90467-08185

9162140814

main91621-40814

16 parts on this diagram · 1 diagram in section
