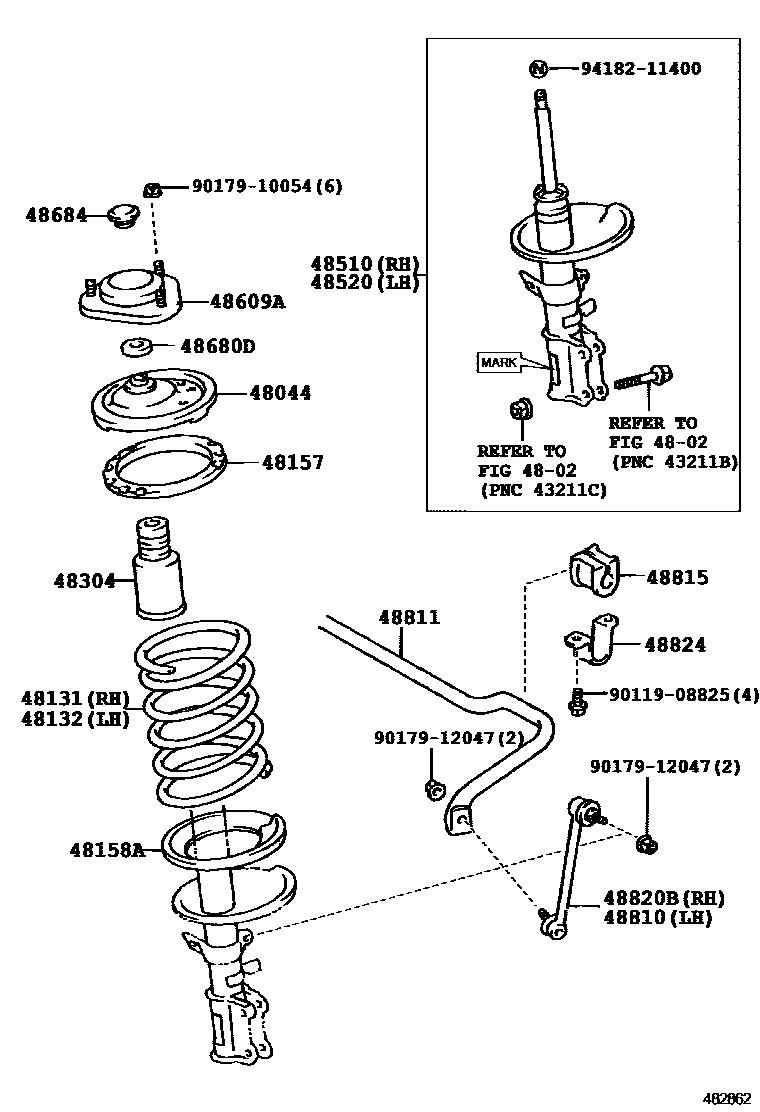

FRONT SPRING & SHOCK ABSORBER

4802

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48044-28010iTCR1#,2#199005-199912

48131SPRING, FRONT COIL, RH

main48131-28150iTCR10..AERAS199801-199912

main48131-28210iTCR10..AERAS199801-199912

main48131-28230iTCR1#199005-199308

main48131-28250iTCR10199302-199308

sub48131-28260

main48131-28250iTCR11199005-199308

sub48131-28260

main48131-28270iTCR11199005-199308

sub48131-28280

main48131-28370iTCR1#..EFI199308-199801

main48131-28380iTCR1#..G,V199408-199912

sub48131-28390

main48131-28390iTCR1#..G,V199408-199912

main48131-28400iTCR1#..EFI199308-199801

sub48131-28410

main48131-28410iTCR1#..G,V199408-199912

main48131-28430iTCR20199302-199608

sub48131-28450

main48131-28430iTCR1#..G,V199408-199912

sub48131-28450

main48131-28450iTCR20..X199302-199801

main48131-28470iTCR2#..G,STD,V199308-199912

sub48131-28480

main48131-28480iTCR2#..G,V199408-199912

main48131-28630iTCR10..AERAS199801-199912

sub48131-28200

main48131-28640iTCR10..AERAS199801-199912

sub48131-28650

main48131-28660iTCR20..AERAS199801-199912

sub48131-28650

main48131-28670iTCR20..AERAS199801-199912

sub48131-28680

48132SPRING, FRONT COIL, LH

main48131-28200iTCR10..AERAS199801-199912

main48131-28240iTCR1#199005-199308

sub48131-28380

main48131-28260iTCR1#199005-199308

main48131-28280iTCR21199005-199308

main48131-28380iTCR1#..EFI199308-199801

sub48131-28390

main48131-28390iTCR1#..G,V199408-199912

main48131-28400iTCR1#..G,V199408-199912

sub48131-28410

main48131-28410iTCR1#..EFI199308-199801

main48131-28430iTCR1#..G,V199408-199912

sub48131-28450

main48131-28450iTCR20199302-199608

main48131-28450iTCR1#..G,V199408-199912

main48131-28470iTCR20..X199302-199801

sub48131-28480

main48131-28480iTCR2#..G,STD,V199308-199912

main48131-28530iTCR2#..G,V199408-199912

sub48131-28540

main48131-28630iTCR10..AERAS199801-199912

sub48131-28200

main48131-28640iTCR10..AERAS199801-199912

sub48131-28650

main48131-28650iTCR10..AERAS199801-199912

main48131-28670iTCR20..AERAS199801-199912

sub48131-28680

main48131-28680iTCR20..AERAS199801-199912

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-28010iTCR1#,2#199005-199912

48158AINSULATOR, FRONT COIL SPRING, LOWER

main48158-28010iTCR1#,2#199005-199912

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-28010iTCR1#,21199005-199912

main48304-28020iTCR10199302-199912

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-29095iTCR1#,2#199108-199912

main48510-29105iTCR11,21199005-199108

sub48510-29095

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-29025iTCR1#,2#199108-199912

main48520-29035iTCR11,21199005-199108

sub48520-29025

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-28010iTCR1#,2#199005-199912

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iTCR1#,2#199005-199912

48684COVER, BEARING DUST

main48684-32010iTCR1#,2#199005-199912

48810LINK ASSY, FRONT STABILIZER, LH

main48810-28010iTCR1#,2#199005-199512

sub48810-28020

main48810-28020iTCR1#,2#199512-199912

48811BAR, STABILIZER, FRONT

main48811-28100iTCR1#,2#199005-199912

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-28040iTCR11,21199005-199108

main48815-28060iTCR1#,2#199108-199407

sub48815-28061

sub90119-08825

main48815-28061iTCR1#,2#199407-199912

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-28010iTCR1#,2#199005-199512

sub48820-28030

main48820-28030iTCR1#,2#199512-199912

48824BRACKET, STABILIZER, FRONT

main48824-28070iTCR11,21199005-199108

main48824-28090iTCR1#,2#199108-199912

9011908825

main90119-08825

9017910054

main90179-10054

9017912047

main90179-12047

9418211400

main94182-11400

21 parts on this diagram · 1 diagram in section
