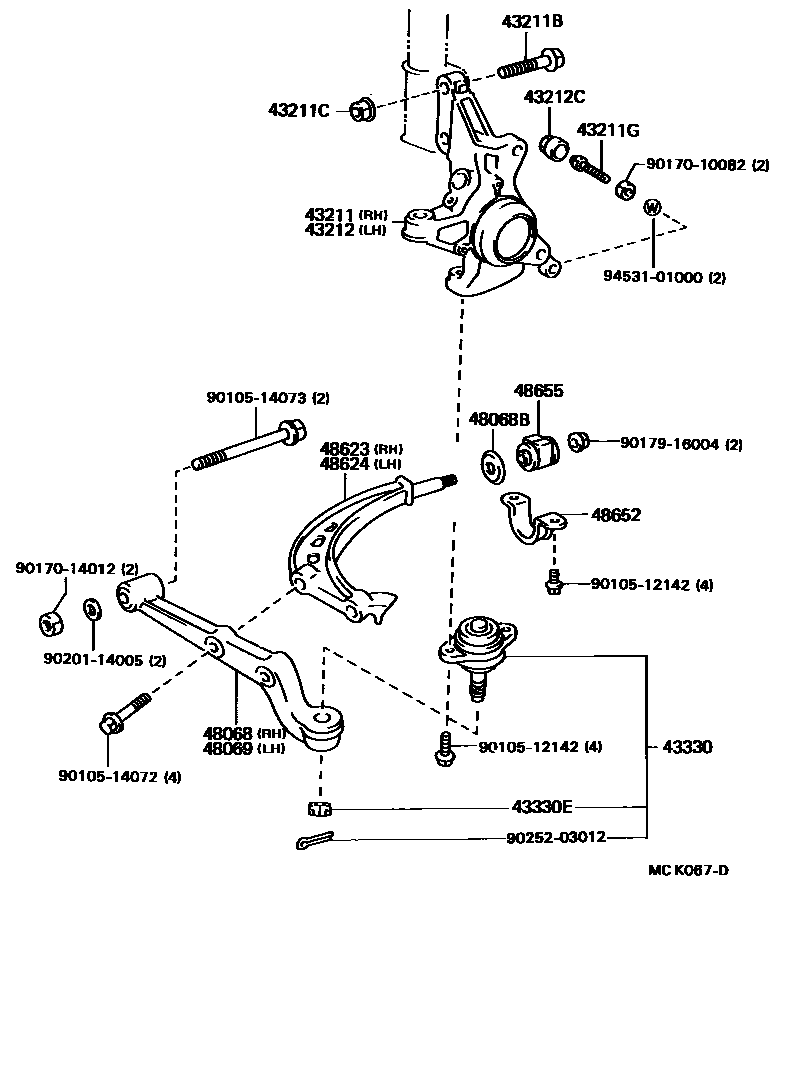

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-28040iTCR10,20199302-199608

main43211-28050iTCR10,20199302-199608

43211BBOLT (FOR ABSORBER SETTING)

main90105-17002×4iTCR1#,2#199005-199912

43211CNUT (FOR ABSORBER SETTING)

main90179-17001×4iTCR1#,2#199005-199912

43211GBOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER)

main90106-10032×2iTCR1#,2#199005-199912

43212KNUCKLE, STEERING, LH

main43212-28020iTCR10,20199302-199608

main43212-28030iTCR1#,2#199608-199912

43212CCOVER, FRONT KNUCKLE STOPPER

main45619-14020×2iTCR1#,2#199005-199912

43330JOINT ASSY, LOWER BALL, FRONT

main43330-29235×2iTCR1#,2#199005-199912

43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)

main94146-71600×2iTCR1#,2#199005-199912

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-28050iTCR1#,2#199005-199912

48068BRETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM)

main90948-02090×2iTCR1#,2#199005-199912

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-28050iTCR1#,2#199005-199912

48623ARM, FRONT SUSPENSION, LOWER NO.2 RH

main48623-28040iTCR1#,2#199005-199912

48624ARM, FRONT SUSPENSION, LOWER NO.2 LH

main48624-28030iTCR1#,2#199005-199912

48652BRACKET, FRONT LOWER ARM

main48652-20040×2iTCR1#,2#199005-199912

48655BUSH, LOWER ARM, NO.2

main48655-28010×2iTCR1#,2#199005-199912

9010512142

main90105-12142

9010514072

main90105-14072

9010514073

main90105-14073

9017010082

main90170-10082

9017014012

main90170-14012

9017916004

main90179-16004

9020114005

main90201-14005

9025203012

main90252-03012

9453101000

main94531-01000

24 parts on this diagram · 1 diagram in section
