STEERING COLUMN & SHAFT

33878ALABEL, SHIFT LOCK INFORMATION, NO.2

main33878-27020iTCR1#,2#199005-199912

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-28010iTCR1#,2#199005-199912

45196ALABEL, STEERING SHAFT INSTAL CAUTION

main45196-30010iTCR10,20199302-199608

sub45196-30020

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18009iTCR1#,2#199108-199308

main90363-18009iTCR1#,2#199308-199912

main90363-18010iTCR1#,2#199005-199912

sub90363-18005

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iTCR1#,2#199005-199912

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iTCR1#,2#199005-199912

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-28050iTCR11,21199005-199108

main45204-28051iTCR1#,2#199108-199608

main45204-28052iTCR1#,2#199608-199912

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-28110iTCR1#,2#199005-199608

main45205-28120iTCR1#,2#199108-199608

main45205-28120iTCR1#,2#199608-199912

45205KSPRING(FOR STEERING COLUMN TUBE)

main90504-25002iTCR1#,2#199005-199912

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-16010iTCR1#,2#199005-199912

45210SHAFT ASSY, STEERING MAIN

main45210-28090iTCR1#,2#199005-199801

main45210-28091iTCR1#,2#199801-199912

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iTCR1#,2#199005-199912

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-28020iTCR1#,2#199005-199912

45266COVER, STEERING INTERMEDIATE SHAFT DUST

main45266-12020iTCR1#,2#199005-199912

45271CLAMP, STEERING COLUMN, UPPER

main45271-12060iTCR1#,2#199005-199912

45273BUSH, STEERING MAIN SHAFT

main45273-28010iTCR1#,2#199005-199912

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-28190iTCR1#,2#199005-199801

main45280-28191iTCR1#,2#199801-199912

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iTCR1#,2#199005-199912

45286COVER, STEERING COLUMN

main45286-28210-03iTCR1#,2#199005-199308

sub45286-28210

main45286-28210-05iTCR11,21199005-199308

sub45286-28210

main45286-28210-B0iTCR1#,2#199308-199608

sub45286-28210

main45286-28210-E2iTCR11,21199308-199408

sub45286-28210

main45286-28230-B0iTCR10,20..SPC199608-199912

sub45286-28230

main45286-28230-B0iTCR1#,2#..G,STD,X199108-199912

sub45286-28230

main45286-28230-E1iTCR10,20..V199704-199708

sub45286-28230

main45286-28230-E1iTCR11,21199108-199408

sub45286-28230

main45286-28230-E1iTCR10,20..V199708-199712

sub45286-28230

main45286-28230-E1iTCR10,20..V199804-199912

sub45286-28230

main45287-28230-03iTCR1#,2#199005-199308

sub45287-28230

main45287-28230-05iTCR11,21199005-199308

sub45287-28230

main45287-28230-B0iTCR1#,2#199308-199608

sub45287-28230

main45287-28230-E2iTCR11,21199308-199408

sub45287-28230

main45287-28270-B0iTCR10,20..SPC199608-199912

sub45287-28270

main45287-28270-B0iTCR1#,2#..G,STD,X199108-199912

sub45287-28270

main45287-28270-E1iTCR11,21199108-199408

sub45287-28270

main45287-28270-E1iTCR10,20..V199704-199708

sub45287-28270

main45287-28270-E1iTCR10,20..V199708-199712

sub45287-28270

main45287-28270-E1iTCR10,20..V199804-199912

sub45287-28270

45819RETAINER, TILT LEVER

main45819-22040iTCR1#,2#199005-199308

main45819-22060iTCR1#,2#199308-199912

45820SPRING ASSY, TILT STEERING SUPPORT

main45820-35010iTCR1#,2#199007-199912

45826LEVER, STEERING TILT

main45826-22050iTCR1#,2#199005-199912

45826CBUSH(FOR STEERING TILT LEVER)

main90386-06031iTCR11,21199005-199007

main90386-06043iTCR1#,2#199007-199912

45827ALEVER, STEERING TILT SUB

main45827-22030iTCR1#,2#199005-199912

45831BOLT, TILT LEVER LOCK, NO.1

main45831-22020iTCR1#,2#199005-199912

45856BOLT, TILT STEERING, NO.2

main45856-22010iTCR1#,2#199005-199912

45870TUBE ASSY, STEERING COLUMN

main45870-28060iTCR1#,2#199005-199912

45880LEVER ASSY, STEERING TILT

main45880-28010iTCR11,21199005-199106

sub45880-28011

main45880-28011iTCR1#,2#199106-199912

45890APAWL ASSY, TILT STEERING

main45890-20110iTCR1#,2#199005-199912

main45890-22090iTCR1#,2#199005-199912

45890DSPRING, TENSION(FOR TILT STEERING PAWL ASSY)

main90507-08010iTCR1#,2#199005-199912

main90507-12035iTCR1#,2#199005-199912

45893ASTOPPER, TILT STEERING PAWL

main45893-22030iTCR1#,2#199005-199912

main45893-22040iTCR1#,2#199005-199912

main45893-22050iTCR1#,2#199005-199912

main45893-22060iTCR1#,2#199005-199912

main45893-22070iTCR1#,2#199005-199912

main45893-22080iTCR1#,2#199005-199912

main45893-22090iTCR1#,2#199005-199912

main45893-22100iTCR1#,2#199005-199912

main45893-22110iTCR1#,2#199005-199912

main45893-22120iTCR1#,2#199005-199912

45893BSPRING, TENSION(FOR TILT STEERING PAWL STOPPER)

main90507-07003iTCR1#,2#199005-199912

45897BOLT, STEERING LOCK SET

main45897-12020iTCR1#,2#199005-199912

9010906162

main90109-06162

9011908560

main90119-08560

9016450048

main90164-50048

9017906009

main90179-06009

9017910055

main90179-10055

9017910065

main90179-10065

9163360625

main91633-60625

9165160816

main91651-60816

9165160820

main91651-60820

9331514012

main93315-14012

9338515010

main93385-15010

9413060600

main94130-60600

9418040800

main94180-40800

9451200600

main94512-00600

9461410600

main94614-10600

9616000800

main96160-00800

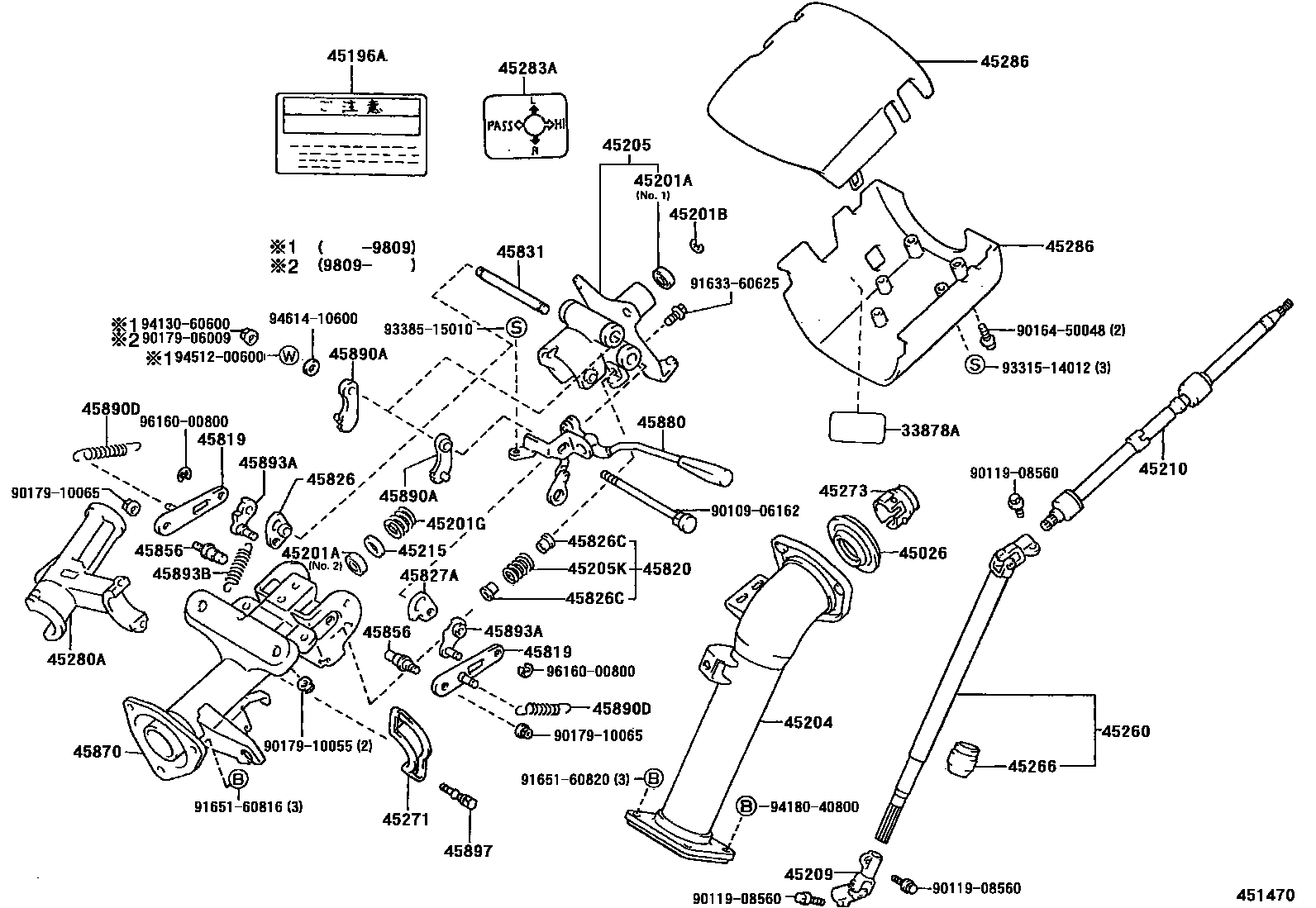

49 parts on this diagram · 1 diagram in section
