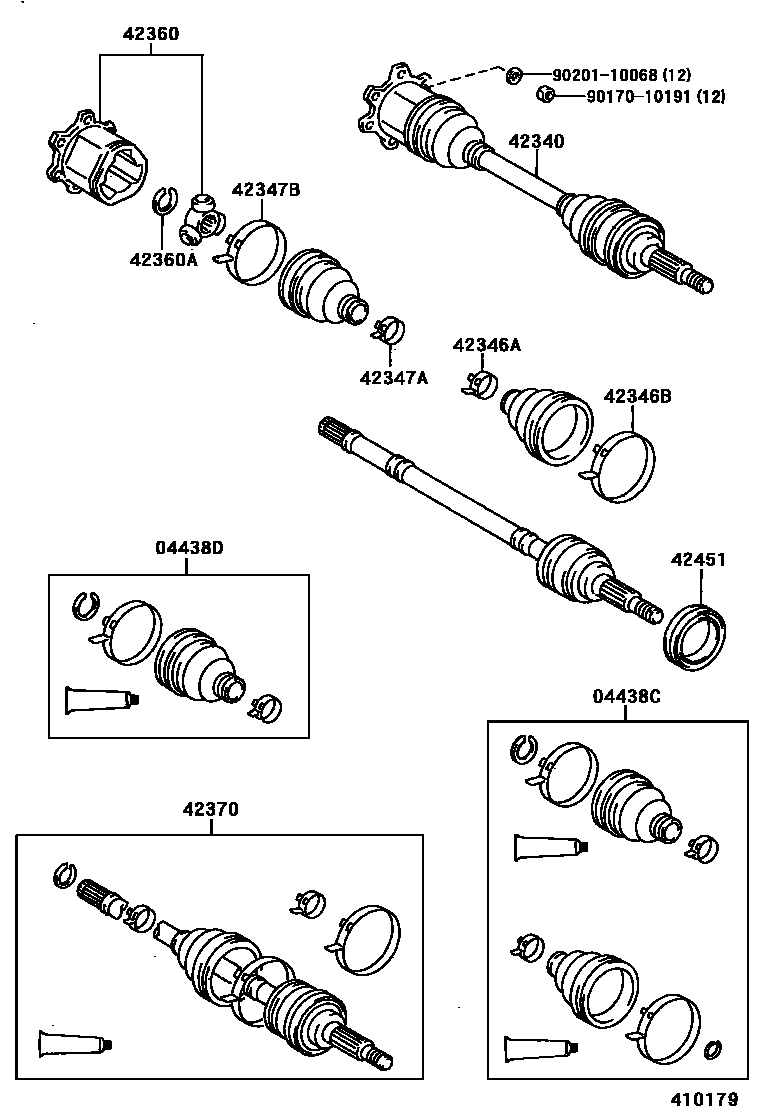

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

04438CBOOT KIT, REAR DRIVE SHAFT

main04437-28010×2iTCR11,21199005-199906

main04437-28011×2iTCR11,21199906-199912

sub04437-28013

04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

main04438-28011×2iTCR11,21199005-199906

sub04437-28021

main04438-28012×2iTCR11,21199906-199912

sub04437-28021

42340SHAFT ASSY, REAR DRIVE

main42340-28040×2iTCR11,21199005-199210

main42340-28041×2iTCR11,21199210-199912

42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-14010×2iTCR11,21199005-199912

42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)

main90949-01473×2iTCR11,21199005-199912

42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-14010×2iTCR11,21199005-199912

42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-30010×2iTCR11,21199005-199912

42360JOINT ASSY, REAR DRIVE SHAFT INBOARD

main43403-28020×2iTCR11,21199005-199906

main43403-28030×2iTCR11,21199906-199912

42360ARING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT)

main90520-26028×2iTCR11,21199005-199912

42370SHAFT ASSY, REAR DRIVE OUTBOARD JOINT

main42370-29075×2iTCR11,21199005-199210

main42370-29076×2iTCR11,21199210-199906

main42370-29077×2iTCR11,21199906-199912

42451DEFLECTOR, REAR WHEEL BEARING DUST, NO.1

main42452-28010×2iTCR11,21199005-199912

9017010191

main90170-10191

9020110068

main90201-10068

13 parts on this diagram · 3 diagrams in section
