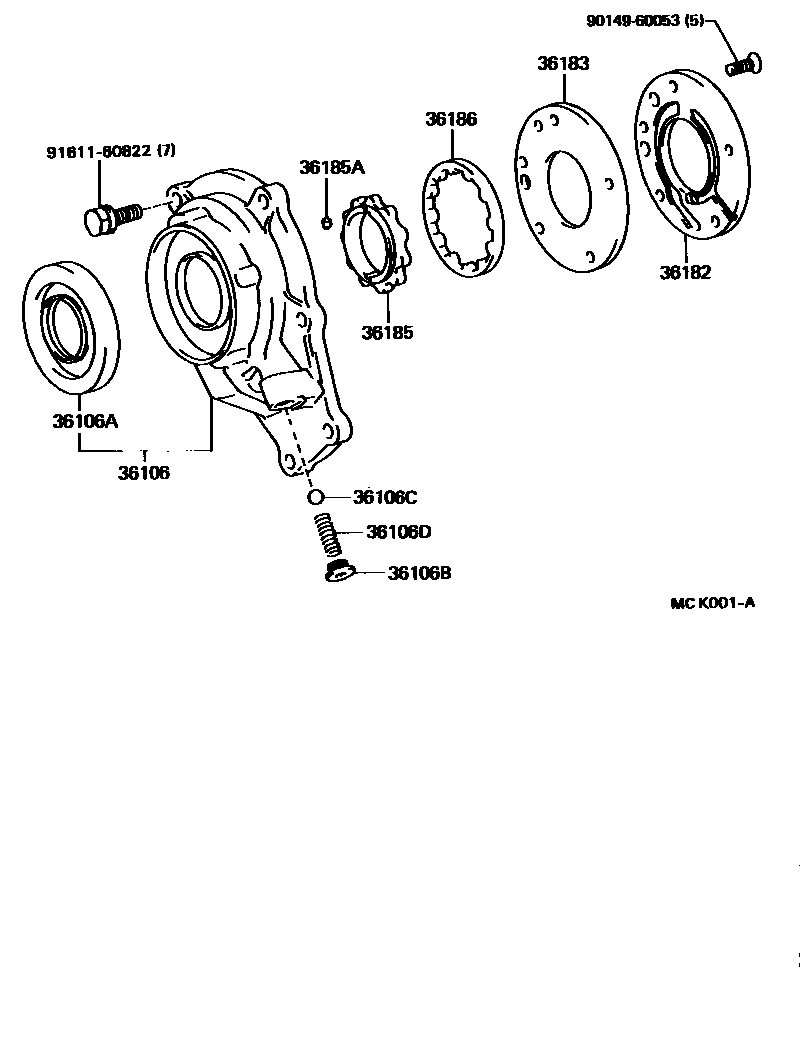

TRANSFER OIL PUMP

36106BODY SUB-ASSY, TRANSFER OIL PUMP

main36106-25010iTCR2#199610-199912

main36106-28040iTCR2#199005-199610

36106ASEAL, OIL (FOR TRANSFER OIL PUMP BODY)

main90310-40002iTCR2#199005-199705

main90310-40005iTCR2#199705-199912

36106BPLUG (FOR TRANSFER OIL PUMP BODY)

main90341-12014iTCR2#199005-199912

36106CBALL (FOR TRANSFER OIL PUMP BODY)

main90360-10003iTCR2#199005-199912

36106DSPRING, COMPRESSION (FOR TRANSFER OIL PUMP BODY)

main90501-09068iTCR2#199005-199912

36182COVER, TRANSFER OIL PUMP

main36182-28020iTCR2#199005-199912

36183PLATE, TRANSFER OIL PUMP

main36183-28020iTCR2#199005-199912

36185ROTOR, TRANSFER OIL PUMP DRIVE

main36185-25010iTCR2#199610-199912

main36185-28020iTCR2#199005-199610

36185APIN, STRAIGHT(FOR TRANSFER OIL PUMP DRIVE ROTOR)

main90250-05025iTCR2#199005-199912

36186ROTOR, TRANSFER OIL PUMP DRIVEN

main36186-25010iTCR2#199610-199912

main36186-28010iTCR2#199005-199610

9014960053

main90149-60053

9161160822

main91611-60822

12 parts on this diagram · 1 diagram in section
