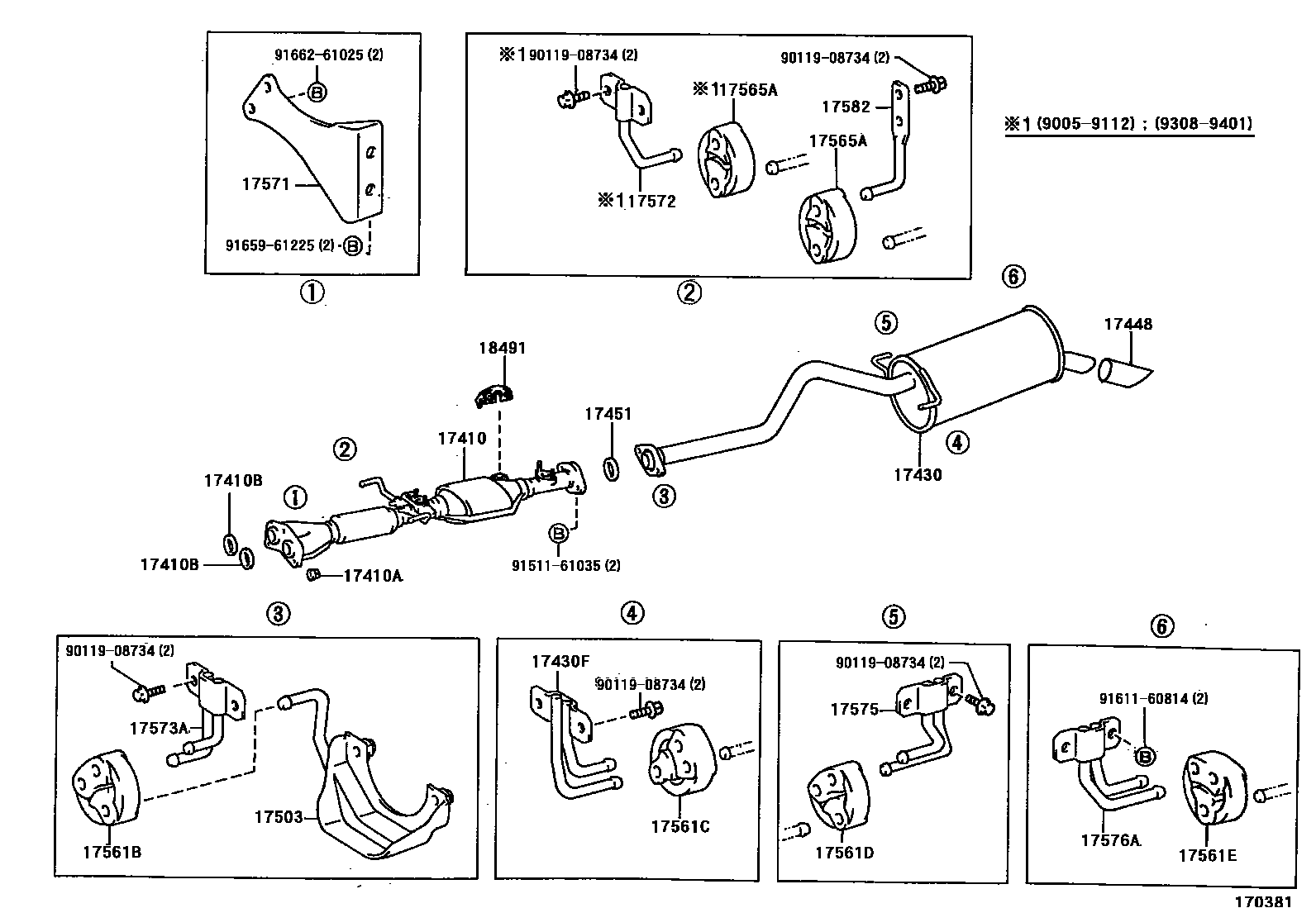

EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-76070i2TZFE..TCR1#,2#199005-199408

main17410-76180i2TZ#..TCR1#,2#199408-199607

main17410-76181i2TZFZE..TCR1#,2#199608-199801

main17410-76182i2TZFZE..TCR1#,2#199801-199912

main17410-76211i2TZFE..TCR10,20199608-199801

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×3i2TZ#..TCR1#,2#199005-199912

17410BGASKET, EXHAUST PIPE

main90917-06039×2i2TZ#..TCR1#,2#199005-199912

17430PIPE ASSY, EXHAUST, TAIL

main17430-76050i2TZFE..TCR11,21199005-199009

main17430-76051i2TZFE..TCR1#,2#199009-199308

main17430-76052i2TZFE..TCR1#,2#199308-199401

main17430-76053i2TZFE..TCR1#,2#199401-199408

main17430-76090i2TZFZE..TCR1#,2#199408-199801

main17430-76091i2TZFZE..TCR1#,2#199801-199912

main17430-76150i2TZFE..TCR10,20199408-199801

17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)

main17574-76020i2TZFE..TCR10,20199302-199801

main17574-76030i2TZFE..TCR11,21199005-199408

17448BAFFLE, TAILPIPE

main17448-76010i2TZFE..TCR1#,2#199005-199308

17451GASKET, EXHAUST PIPE

main90917-06057i2TZFE..TCR1#,2#199005-199801

17503BRACKET SUB-ASSY, CATALYTIC CONVERTER, REAR

main17503-76010i2TZFE..TCR11,21199005-199108

main17503-76020i2TZFE..TCR1#,2#199108-199408

main17503-76031i2TZFE..TCR10,20199608-199801

17561BSUPPORT, EXHAUST PIPE, NO.1

main17561-74110i2TZFE..TCR1#,2#199005-199408

17561CSUPPORT, EXHAUST PIPE, NO.1

main17561-74110i2TZ#..TCR1#,2#199005-199912

17561DSUPPORT, EXHAUST PIPE, NO.1

main17561-74110i2TZ#..TCR1#,2#199005-199912

17561ESUPPORT, EXHAUST PIPE, NO.1

main17561-74110i2TZ#..TCR1#,2#199005-199912

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-11160×3i2TZ#..TCR1#,2#199408-199912

main17565-76030i2TZFE..TCR1#,2#199112-199308

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-76040i2TZFE..TCR1#,2#199005-199308

main17571-76050i2TZFE..TCR10,20199308-199401

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17583-76010i2TZFE..TCR11,21199005-199112

17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3

main17573-76030i2TZFE..TCR1#,2#199005-199408

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-76020i2TZFE..TCR1#,2#199005-199801

17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6

main17576-76030i2TZFE..TCR1#,2#199005-199801

17582BRACKET, CATALYTIC CONVERTER SUPPORT, UPPER

main17582-76010i2TZFE..TCR1#,2#199005-199408

18491FLANGE, THERMOSENSOR INLET

main18491-63010i2TZ#..TCR1#,2#199005-199608

9011908734

main90119-08734

9151161035

main91511-61035

9161160814

main91611-60814

9165961225

main91659-61225

9166261025

main91662-61025

25 parts on this diagram · 3 diagrams in section
