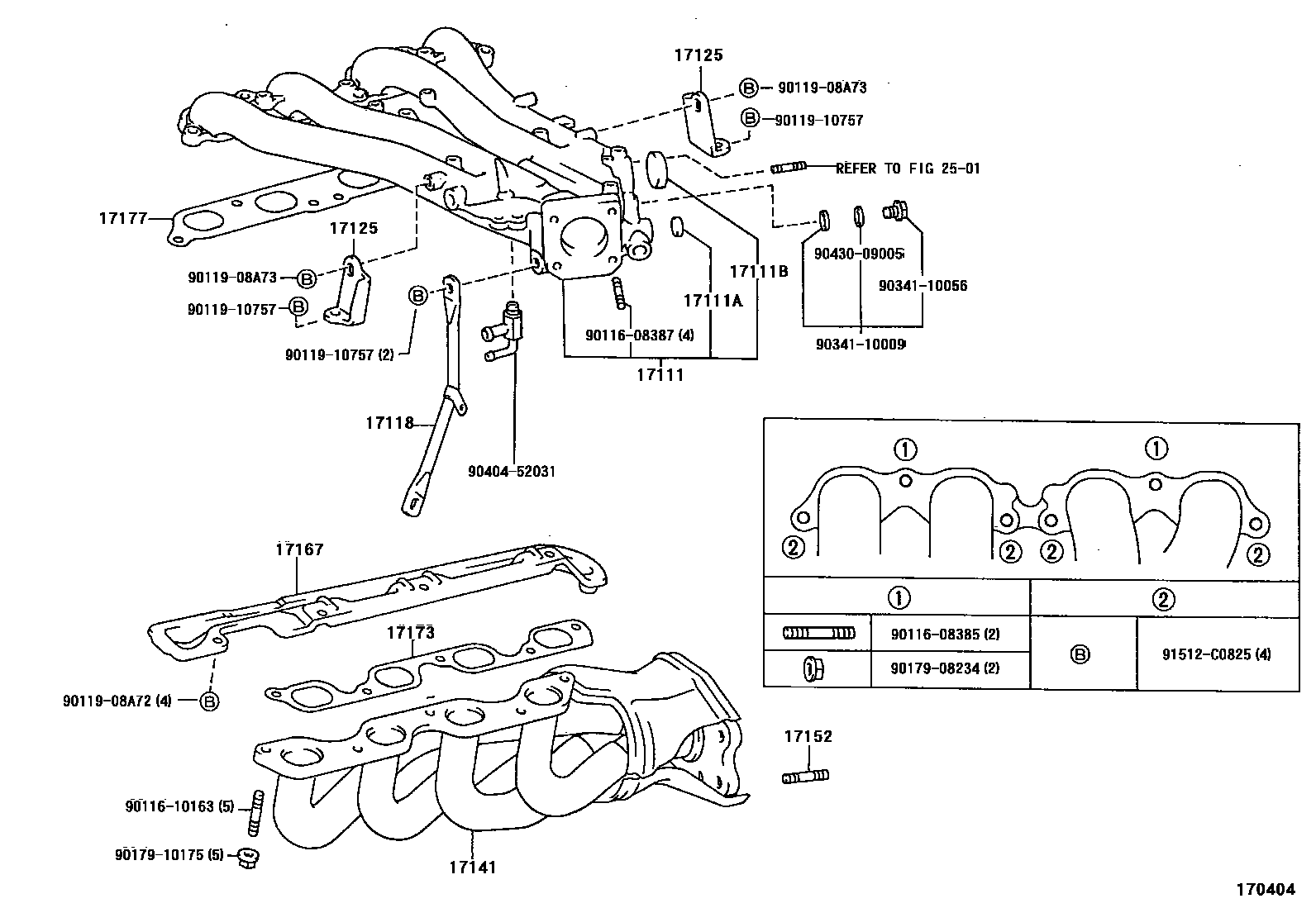

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1

17111MANIFOLD, INTAKE

main17101-76010i2TZFE..TCR1#,2#199005-199401

main17101-76011i2TZFE..TCR1#,2#199401-199403

main17101-76012i2TZFE..TCR1#,2#199403-199608

main17101-76020i2TZFZE..TCR1#,2#199408-199801

main17101-76021i2TZFZE..TCR1#,2#199801-199912

main17101-76030i2TZFE..TCR10,20199608-199801

17111APLUG, NO.1

main90331-16001i2TZ#..TCR1#,2#199005-199912

17111BPLUG, NO.2

main96411-43500i2TZ#..TCR1#,2#199005-199912

17118STAY, MANIFOLD

main17118-76010i2TZFE..TCR1#,2#199005-199308

main17118-76010i2TZ#..TCR1#,2#199308-199912

main17118-76020i2TZ#..TCR1#,2#199408-199912

17125STAY, SURGE TANK, NO.1

main17125-76010i2TZ#..TCR1#,2#199005-199912

17141MANIFOLD, EXHAUST

main17141-76040i2TZFE..TCR1#,2#199005-199408

main17141-76050i2TZ#..TCR1#,2#199408-199912

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10149i2TZ#..TCR1#,2#199005-199912

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-76010i2TZ#..TCR1#,2#199005-199912

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-76010i2TZ#..TCR1#,2#199005-199912

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-76011i2TZFE..TCR1#,2#199005-199401

main17177-76020i2TZ#..TCR1#,2#199401-199912

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

9011608385

main90116-08385

9011608387

main90116-08387

9011610163

main90116-10163

9011908A72

main90119-08A72

9011908A73

main90119-08A73

9011910757

main90119-10757

9017908234

main90179-08234

9017910175

main90179-10175

9034110009

main90341-10009

9034110056

main90341-10056

9040452031

main90404-52031

9043009005

main90430-09005

91512C0825

main91512-C0825

24 parts on this diagram · 5 diagrams in section
