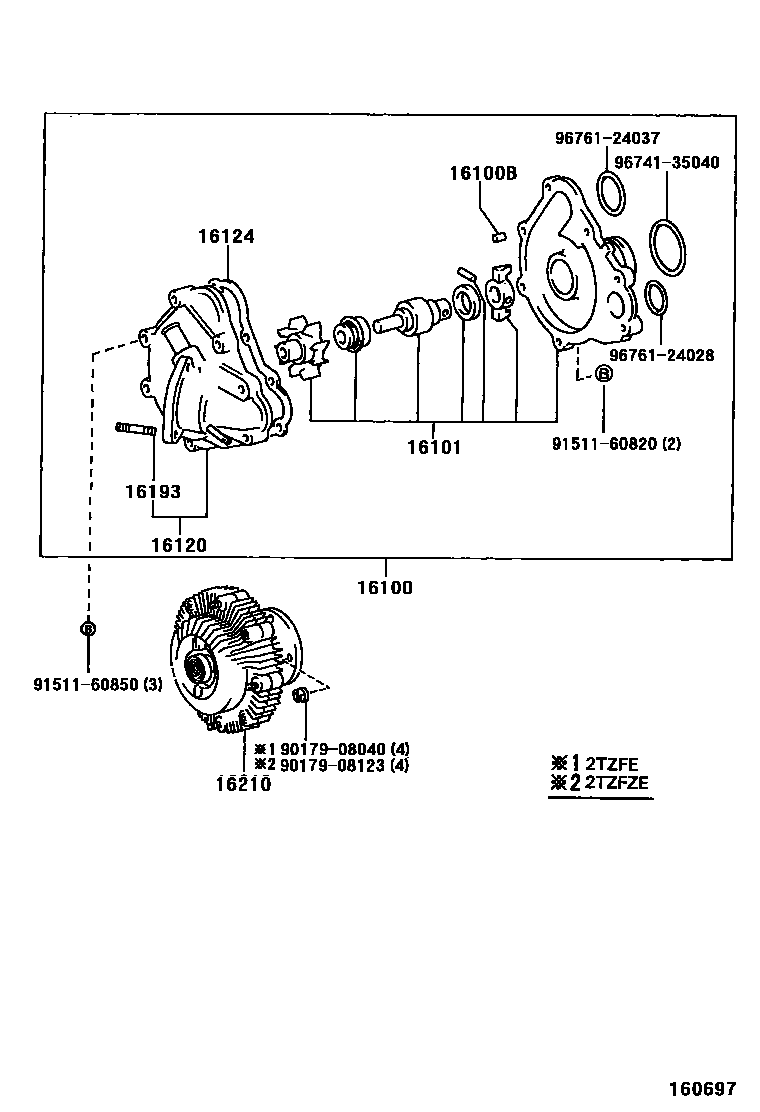

WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-79165i2TZ#..TCR1#,2#199005-199912

16100BPIN, RING(FOR WATER PUMP SET)

main16159-71010×2i2TZ#..TCR1#,2#199005-199912

16101BODY SUB-ASSY, WATER PUMP

main16101-76030i2TZ#..TCR1#,2#199005-199912

16120COVER ASSY, WATER PUMP

main16120-76030i2TZ#..TCR1#,2#199005-199912

16124GASKET, WATER PUMP COVER

main16124-76030i2TZFE..TCR1#,2#199005-199401

main16124-76040i2TZ#..TCR1#,2#..AERAS,STD,X199401-199912

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-76010×2i2TZ#..TCR1#,2#199005-199912

16210COUPLING ASSY, FLUID

main16210-76010i2TZ#..TCR1#,2#199005-199912

9017908040

main90179-08040

9017908123

main90179-08123

9151160820

main91511-60820

9151160850

main91511-60850

9674135040

main96741-35040

9676124028

main96761-24028

9676124037

main96761-24037

14 parts on this diagram · 1 diagram in section
