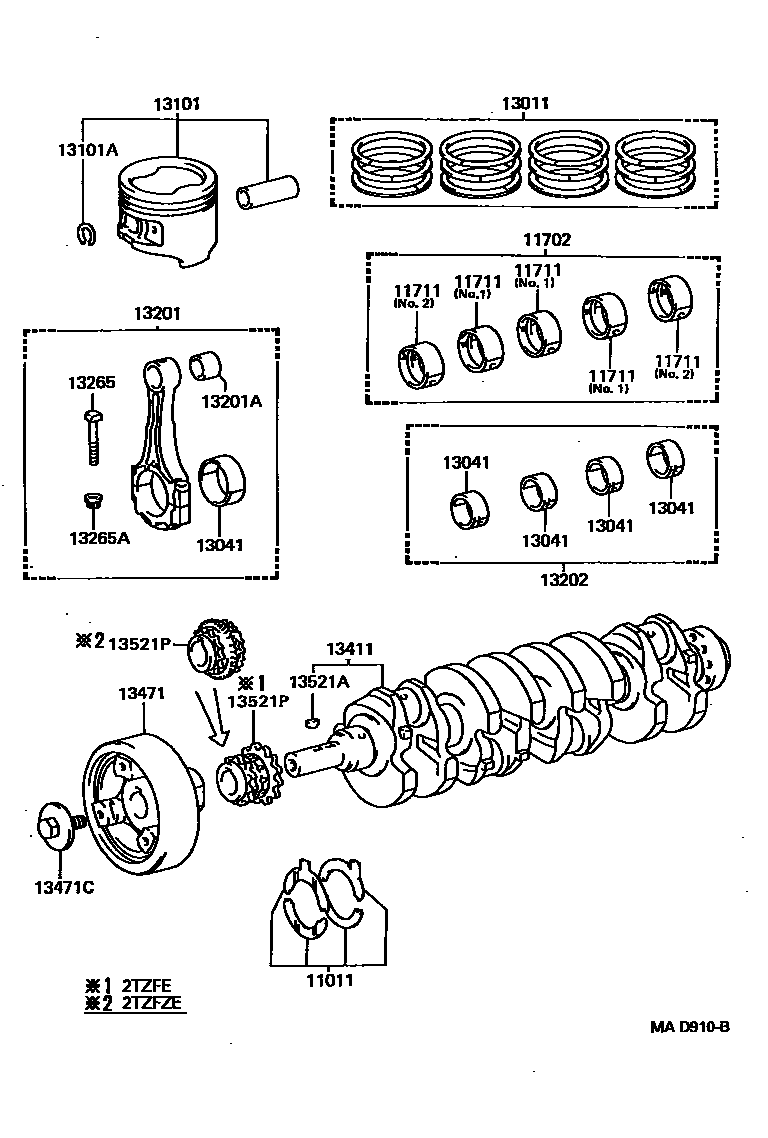

CRANKSHAFT & PISTON

11011WASHER SET, CRANKSHAFT THRUST

main11011-75010i2TZ#..TCR1#,2#199005-199912

11702BEARING SET, CRANKSHAFT

main11704-75010i2TZFE..TCR1#,2#199005-199308

main11704-75020i2TZ#..TCR1#,2#199308-199904

main11704-75021i2TZFZE..TCR1#,2#199904-199912

11711BEARING, CRANKSHAFT

main11071-75010-01×3i2TZFE..TCR1#,2#199005-199308

main11071-75010-02×3i2TZFE..TCR1#,2#199005-199308

main11071-75010-03×3i2TZFE..TCR1#,2#199005-199308

main11071-75020×3i2TZFE..TCR1#,2#199308-199309

main11071-75020-01×3i2TZ#..TCR1#,2#199308-199904

main11071-75020-02×3i2TZ#..TCR1#,2#199308-199904

main11071-75020-03×3i2TZ#..TCR1#,2#199308-199904

main11071-75021-01×3i2TZFZE..TCR1#,2#199904-199912

main11071-75021-02×3i2TZFZE..TCR1#,2#199904-199912

main11071-75021-03×3i2TZFZE..TCR1#,2#199904-199912

main11701-75010-01×2i2TZFE..TCR1#,2#199005-199308

main11701-75010-02×2i2TZFE..TCR1#,2#199005-199308

main11701-75010-03×2i2TZFE..TCR1#,2#199005-199308

main11701-75020×2i2TZFE..TCR1#,2#199308-199309

main11701-75020-01×2i2TZ#..TCR1#,2#199308-199904

main11701-75020-02×2i2TZ#..TCR1#,2#199308-199904

main11701-75020-03×2i2TZ#..TCR1#,2#199308-199904

main11701-75021-01×2i2TZFZE..TCR1#,2#199904-199912

main11701-75021-02×2i2TZFZE..TCR1#,2#199904-199912

main11701-75021-03×2i2TZFZE..TCR1#,2#199904-199912

13011RING SET, PISTON

main13011-76050i2TZ#..TCR1#,2#199005-199912

main13013-76050i2TZ#..TCR1#,2#199005-199912

13041BEARING, CONNECTING ROD

main13041-75010-01×4i2TZFE..TCR1#,2#199005-199308

MARK 1

main13041-75010-02×4i2TZFE..TCR1#,2#199005-199308

MARK 2

main13041-75010-03×4i2TZFE..TCR1#,2#199005-199308

MARK 3

main13041-75020-04×4i2TZ#..TCR1#,2#199308-199701

MARK 4

main13041-75020-05×4i2TZ#..TCR1#,2#199308-199701

MARK 5

main13041-75020-06×4i2TZ#..TCR1#,2#199308-199701

MARK 6

main13041-75021-04×4i2TZ#..TCR1#,2#199701-199912

MARK 4

main13041-75021-05×4i2TZ#..TCR1#,2#199701-199912

MARK 5

main13041-75021-06×4i2TZ#..TCR1#,2#199701-199912

MARK 6

13101PISTON SUB-ASSY, W/PIN

main13101-76040×4i2TZFE..TCR11,21199005-199203

main13101-76041×4i2TZFE..TCR1#,2#199203-199608

main13101-76050×4i2TZFZE..TCR1#,2#199408-199912

main13101-76060×4i2TZFE..TCR10,20199608-199801

main13103-76040×4i2TZFE..TCR11,21199005-199203

main13103-76041×4i2TZFE..TCR1#,2#199203-199608

main13103-76050×4i2TZFZE..TCR1#,2#199408-199912

main13103-76060×4i2TZFE..TCR10,20199608-199801

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90521-28003×8i2TZ#..TCR1#,2#199005-199912

13201ROD SUB-ASSY, CONNECTING

main13201-79165×4i2TZFE..TCR11,21199005-199102

main13201-79166×4i2TZFE..TCR1#,2#199102-199308

main13201-79167×4i2TZ#..TCR1#,2#199308-199912

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73129×4i2TZ#..TCR1#,2#199005-199912

13202BEARING SET, CONNECTING ROD

main13204-75010i2TZFE..TCR1#,2#199005-199308

main13204-75020i2TZ#..TCR1#,2#199308-199701

main13204-75021i2TZ#..TCR1#,2#199701-199912

13265BOLT, CONNECTING ROD

main13265-75010×8i2TZFE..TCR11,21199005-199102

main13265-75011×8i2TZFE..TCR1#,2#199102-199308

main13265-75030×8i2TZ#..TCR1#,2#199308-199912

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90179-09007×8i2TZFE..TCR11,21199005-199302

main90179-09009×8i2TZ#..TCR1#,2#199308-199912

13411CRANKSHAFT

main13411-75900i2TZ#..TCR1#,2#199005-199912

13471PULLEY, CRANKSHAFT

main13408-76012i2TZ#..TCR1#,2#199005-199912

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-16041i2TZ#..TCR1#,2#199005-199912

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05005×2i2TZ#..TCR1#,2#199303-199912

main95161-20519×2i2TZFE..TCR1#,2#199005-199303

13521PPULLEY, CRANKSHAFT TIMING

main13521-76020i2TZFE..TCR1#,2#199005-199801

main13521-76030i2TZFZE..TCR1#,2#199408-199912

17 parts on this diagram · 1 diagram in section
