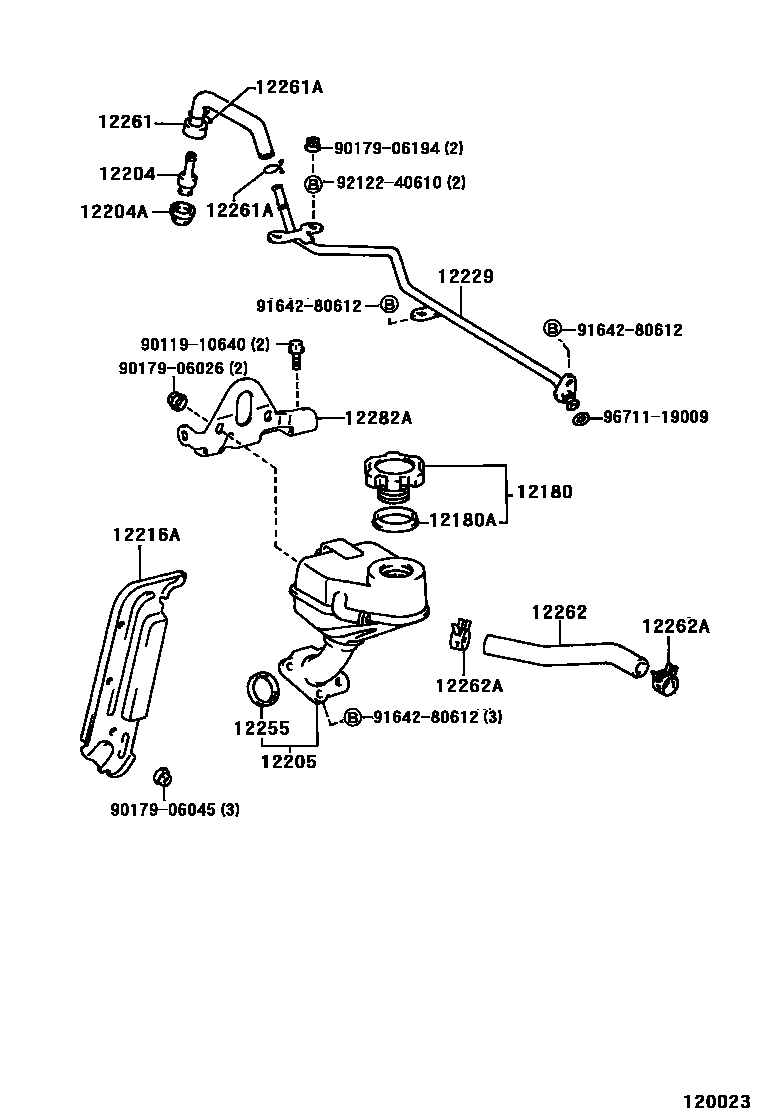

VENTILATION HOSE

0001 1 0002 1 0003 1

12180CAP ASSY, OIL FILLER

main12180-73011i2TZFE..TCR11,21199103-199208

main12180-75010i2TZFE..TCR11,21199005-199103

sub12180-73011

main12180-76010i2TZFE..TCR1#,2#199208-199403

sub12180-76011

main12180-76011i2TZ#..TCR1#,2#199403-199608

main12180-76020i2TZ#..TCR1#,2#199608-199912

12180AGASKET, OIL FILLER CAP

main12195-70010i2TZFE..TCR11,21199005-199103

main12195-73010i2TZ#..TCR1#,2#199103-199912

12204VALVE SUB-ASSY, VENTILATION

main12204-15022i2TZ#..TCR1#,2#199005-199608

main12204-75010i2TZ#..TCR1#,2#199608-199912

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18001i2TZ#..TCR1#,2#199005-199912

12205CASE SUB-ASSY, VENTILATION

main12205-76010i2TZFE..TCR1#,2#199005-199312

main12205-76020i2TZ#..TCR1#,2#199312-199912

12216APLATE, OIL BAFFLE

main12216-76010i2TZFE..TCR1#,2#199005-199401

main12216-76020i2TZ#..TCR1#,2#199401-199912

12229PIPE, VENTILATION

main12229-76010i2TZ#..TCR1#,2#199005-199912

12255GASKET, VENTILATION

main12255-76010i2TZ#..TCR1#,2#199005-199912

12261HOSE, VENTILATION

main12261-76010i2TZ#..TCR1#,2#199005-199912

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14001i2TZ#..TCR1#,2#199005-199912

12262HOSE, VENTILATION, NO.2

main12262-76010i2TZFE..TCR11,21199005-199108

main12262-76011i2TZFE..TCR1#,2#199108-199312

main12262-76012i2TZFE..TCR1#,2#199312-199801

main12262-76020i2TZFZE..TCR1#,2#199408-199912

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-17011i2TZFE..TCR1#,2#199403-199710

AIR CLEANER SIDE

sub96134-51700

main90467-17011i2TZFE..TCR1#,2#199005-199403

sub96134-51700

main90467-17011i2TZFZE..TCR1#,2#199408-199710

TUBE SIDE

sub96134-51700

main90467-17018i2TZFE..TCR1#,2#199403-199801

main90467-17018i2TZFZE..TCR1#,2#199408-199912

CASE SIDE

main96134-41700i2TZFE..TCR10,20199710-199801

AIR CLEANER SIDE

main96134-41700i2TZFZE..TCR1#,2#199710-199912

TUBE SIDE

12282AHANGER, ENGINE, NO.2

main12282-76020i2TZFE..TCR1#,2#199005-199312

main12282-76030i2TZ#..TCR1#,2#199312-199912

9011910640

main90119-10640

9017906026

main90179-06026

9017906045

main90179-06045

9017906194

main90179-06194

9164280612

main91642-80612

9212240610

main92122-40610

9671119009

main96711-19009

20 parts on this diagram · 3 diagrams in section
