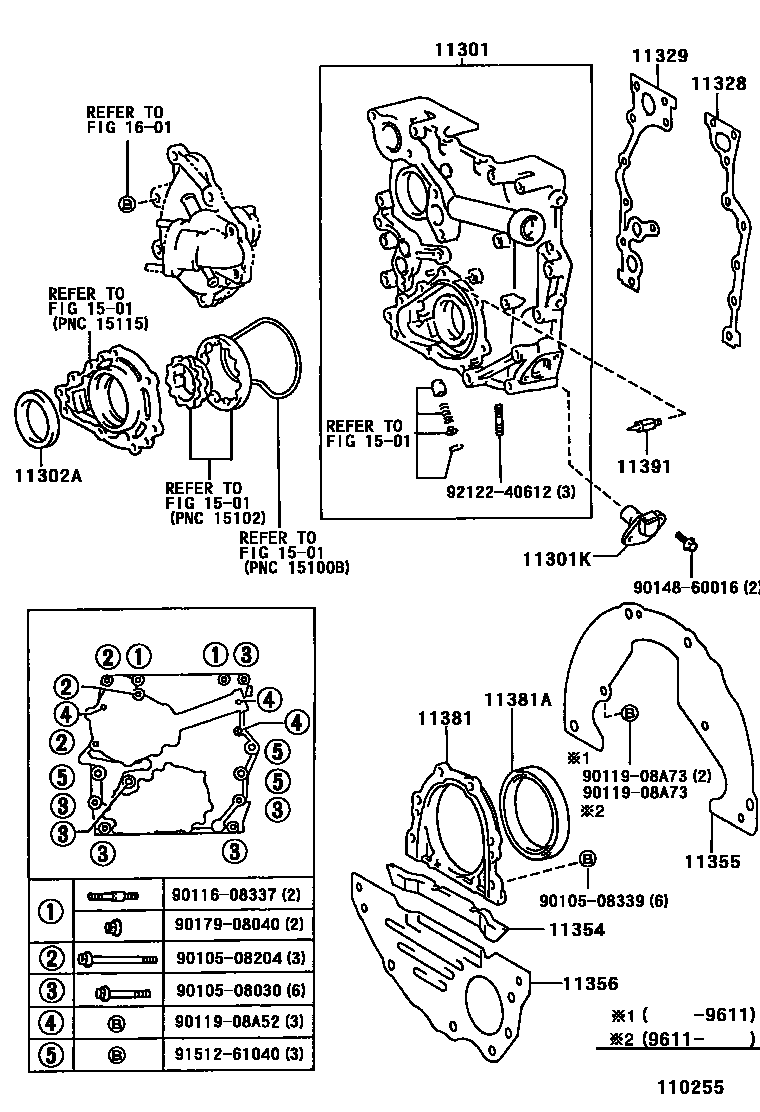

TIMING GEAR COVER & REAR END PLATE

11301CASE SUB-ASSY, TIMING GEAR

main11301-76010i2TZFE..TCR1#,2#199005-199401

main11301-76011i2TZFE..TCR1#,2#199401-199801

main11301-76020i2TZFZE..TCR1#,2#199408-199912

11301KSENSOR, CRANK POSITION

main90919-05015i2TZFZE..TCR1#,2#199408-199912

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-48014i2TZ#..TCR1#,2#199005-199912

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-75010i2TZ#..TCR1#,2#199005-199912

11329GASKET, TIMING GEAR REAR COVER

main11329-75010i2TZ#..TCR1#,2#199005-199912

11354SEAL, FLYWHEEL HOUSING DUST

main11354-76020i2TZ#..TCR1#,2#199005-199912

11355PLATE, REAR END

main11355-76010i2TZ#..TCR1#,2#199005-199912

11356PLATE, REAR END, NO.2

main11356-76020i2TZ#..TCR1#,2#199005-199912

11381RETAINER, ENGINE REAR OIL SEAL

main11381-75010i2TZ#..TCR1#,2#199005-199912

11381ASEAL, ENGINE REAR OIL

main90311-88001i2TZFE..TCR1#,2#199005-199308

main90311-88003i2TZ#..TCR1#,2#199308-199912

11391POINTER, TIMING

main11391-76010i2TZ#..TCR1#,2#199005-199912

1501ENGINE OIL PUMP

→ Go to FIG 15-01

1601WATER PUMP

→ Go to FIG 16-01

9010508030

main90105-08030

9010508204

main90105-08204

9010508339

main90105-08339

9011608337

main90116-08337

9011908A52

main90119-08A52

9011908A73

main90119-08A73

9014860016

main90148-60016

9017908040

main90179-08040

9151261040

main91512-61040

9212240612

main92122-40612

23 parts on this diagram · 1 diagram in section
