SHORT BLOCK ASSEMBLY

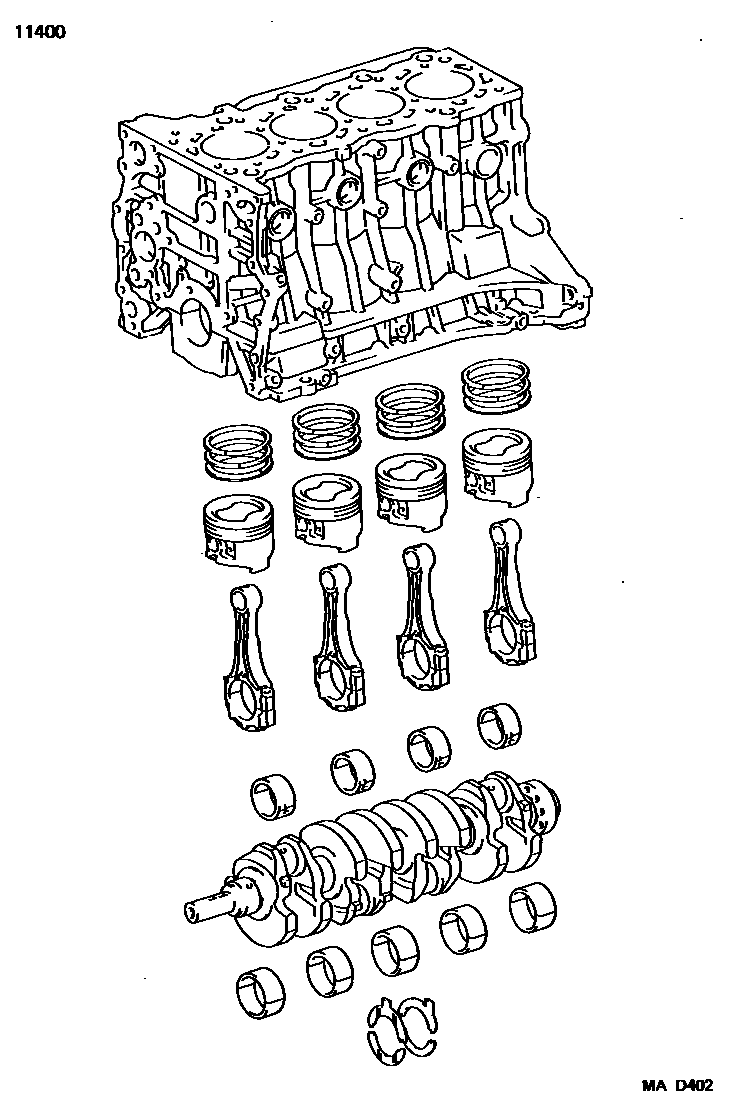

Parts diagram

11400BLOCK ASSY, SHORT

main11400-76020i199005-199307

main11400-76021i199307-199608

main11400-76040i199408-199912

main11400-76050i199608-199801

1 parts on this diagram · 1 diagram in section
