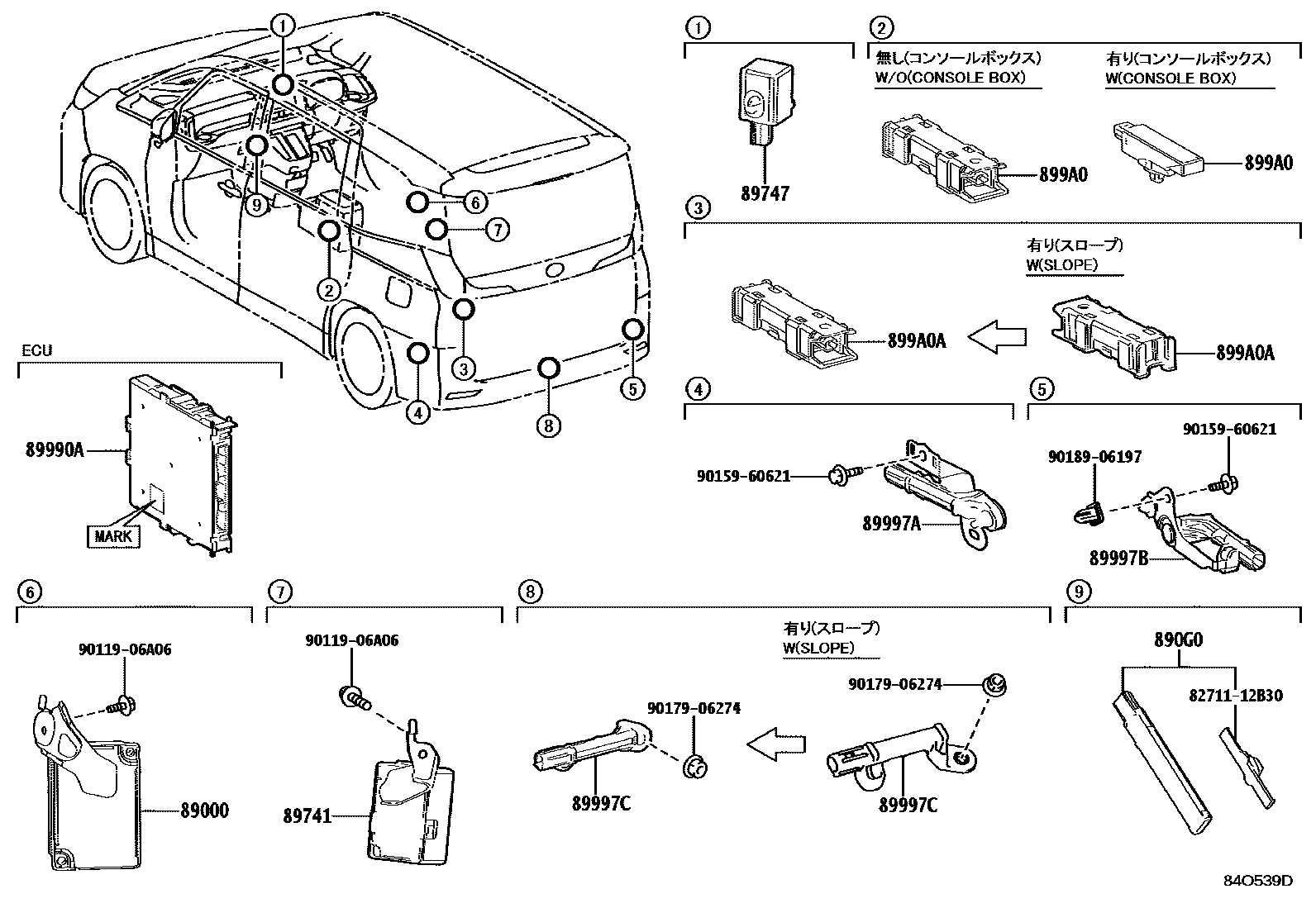

WIRELESS DOOR LOCK

0001 1 0002 1

89000COMPUTER ASSY, DIGITAL KEY

main89000-V1010iMZRA9#..X; MZRA90,95,ZWR90,95..(G,SG)..CBU; MZRA90,95,ZWR90,95..SZ,Z; MZRA95..SG..IV5;MZRA92,97,ZWR92..G,SG; ZWR9#..G,SG,SZ,Z; ZWR9#..X; ZWR9#;MZRA9#..G,SG,SZ,Z; ZWR90,95..G,SG; ZWR90,95..SZ,Z; ZWR92..G,SG; ZWR92..X;ZWR90,95..G,SG,X;MZRA90,95..(G,SG)..CBU202201-202202

main89000-V1011iMZRA9#..X; MZRA90,95,ZWR90,95..(G,SG)..CBU; MZRA90,95,ZWR90,95..SZ,Z; MZRA95..SG..IV5;MZRA92,97,ZWR92..G,SG; ZWR9#..G,SG,SZ,Z; ZWR9#..X; ZWR9#;MZRA9#..G,SG,SZ,Z; ZWR90,95..G,SG; ZWR90,95..SZ,Z; ZWR92..G,SG; ZWR92..X;ZWR90,95..G,SG,X;MZRA90,95..(G,SG)..CBU202203-202303

main89000-V1012iMZRA9#,ZWR9#..G,SG,SZ,Z; MZRA9#..X; MZRA90,95,ZWR90,95..(G,SG)..CBU; MZRA90,95,ZWR90,95..SZ,Z; MZRA95..SG..IV5;MZRA92,97,ZWR92..G,SG; ZWR9#..G,SG,SZ,Z; ZWR9#..X; ZWR90,95..G,SG; ZWR90,95..SZ,Z; ZWR92..G,SG; ZWR92..X;ZWR90,95..G,SG,X;MZRA90,95..(G,SG)..CBU202304-202407

main89000-V1013iMZRA90,95,ZWR90,95..G; MZRA90,95,ZWR90,95..Z; MZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z; MZRA92..08S..SG;MZRA95..SG..IV5;MZRA92,97,ZWR92..G; MZRA95..X..IV5; ZWR9#..G,Z; ZWR90,95..G; ZWR90,95..Z; ZWR92..G202408-202501

890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY

main890G0-V1010iMZRA90,95,ZWR90,95..G; MZRA90,95,ZWR90,95..Z; MZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z; MZRA92..08S..SG;MZRA95..SG..IV5;MZRA92,97,ZWR92..G; MZRA95..X..IV5; ZWR9#..G,Z; ZWR90,95..G; ZWR90,95..Z; ZWR92..G202201-202501

89741RECEIVER, DOOR CONTROL

main89740-V1010supersedes 89741-V1010iZWR9#..SG,SZ,X;MZRA92..07S..SG;MZRA90,95..(SG,SZ)..CBU202201

main89741-V1010iMZRA9#..X202201-202402

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iMZRA9#..G,Z;MZRA95..IV5;MZRA92..08S..SG202201-202501

89990ACOMPUTER ASSY, SMART KEY

main899H0-V1030iZWR9#202201-202202

main899H0-V1031iZWR9#202203-202404

main899H0-V1040iMZRA9#..G,SG,SZ,Z; MZRA9#..X202201-202404

main899H0-V1081iZWR9#202404

main899H0-V1091iMZRA9#..G,SG,SZ,Z; MZRA9#..X202404

main899H0-V1010iMZRA90,95..SZ,Z202201-202310

main899H0-V1011iMZRA90,95..SZ,Z202310-202404

main899H0-V1012iMZRA90,95..SZ,Z202404

main899H0-V1020iZWR90,95..SZ,Z202201-202404

main899H0-V1021iZWR90,95..SZ,Z202404

main899H0-V1050iZWR9#..G,SG,SZ,Z202201-202404

main899H0-V1051iZWR9#..G,SG,SZ,Z202404

89997ANTENNA, ELECTRICAL KEY

main89997-30100iZWR9#..SG,SZ; ZWR90,95..SZ202201

89997AANTENNA, ELECTRICAL KEY, NO.2

main89997-V1010iMZRA90,95,ZWR90,95..SZ; ZWR9#..SG,SZ202201

89997BANTENNA, ELECTRICAL KEY, NO.3

main89997-V1020iMZRA90,95,ZWR90,95..SZ; ZWR9#..SG,SZ202201

89997CANTENNA, ELECTRICAL KEY, NO.4

main89997-30100iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z; MZRA95..X..IV5202201-202501

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-12080iZWR9#..G,Z202201-202501

main899A0-V1010iMZRA9#..G;MZRA92..08S..SG;MZRA95..SG..IV5; MZRA90..07S..G; MZRA95..X..IV5202201-202501

main899A0-V1020iMZRA90,95..G; MZRA90,95..Z; MZRA92,97..G;MZRA92..08S..SG;MZRA95..SG..IV5202201-202501

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-V1010iZWR9#..SG,SZ,X;MZRA92..07S..SG;MZRA90,95..(SG,SZ)..CBU202201

8271112B30WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12B30

9011906A06

main90119-06A06

9015960621

main90159-60621

9017906274

main90179-06274

9018906197

main90189-06197

16 parts on this diagram · 2 diagrams in section
