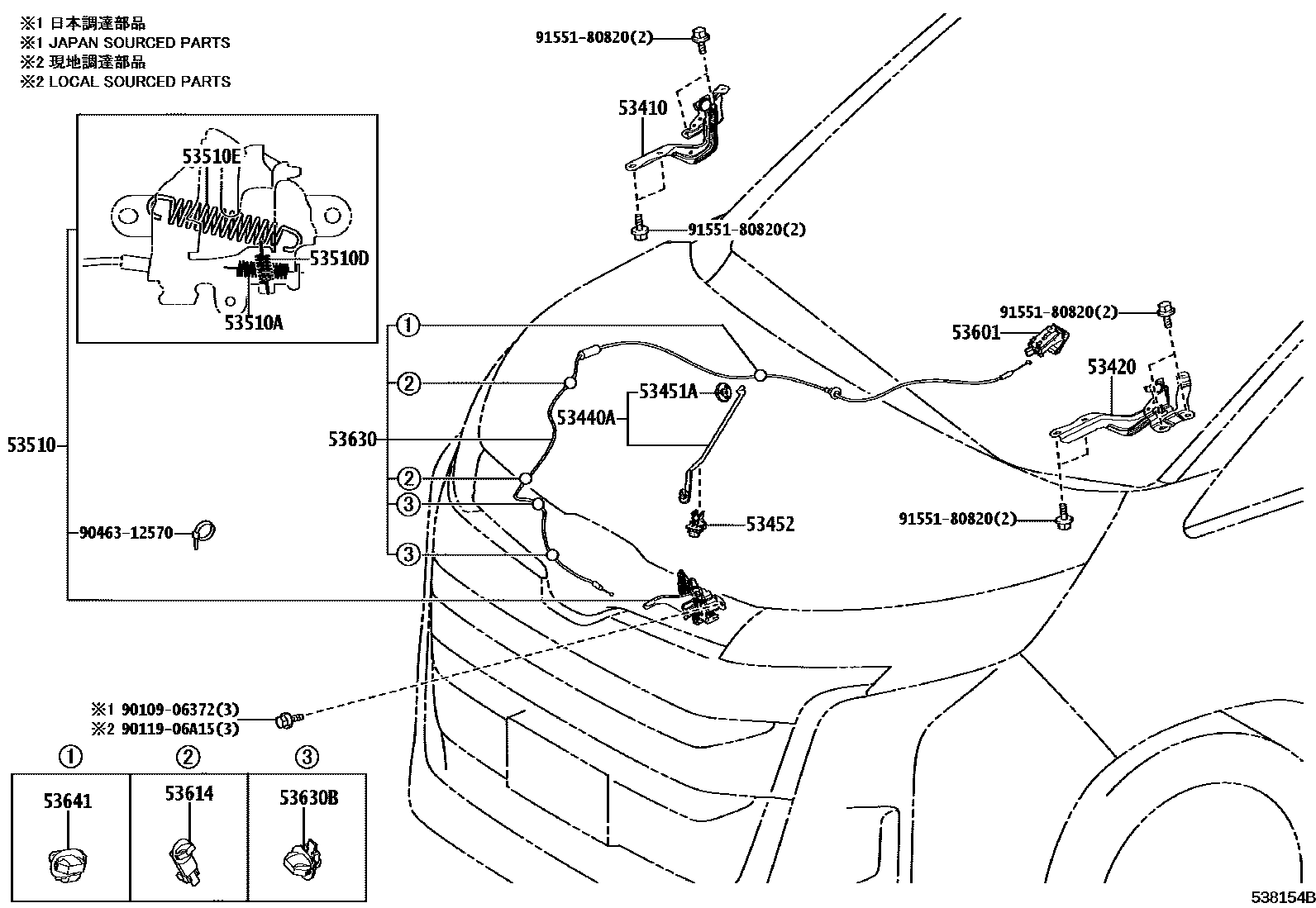

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-V1010iZWR9#..X;MZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97..(SG,SZ,X)..CBU202201-202605

53420HINGE ASSY, HOOD, LH

main53420-V1010iZWR9#..SG,SZ202201

53440ASUPPORT ASSY, HOOD, RH

main53440-V1010iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15025iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

53452HOLDER, HOOD STAY

main55729-V1010iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

53510LOCK ASSY, HOOD

main53510-V1010iMZRA92..X;MZRA92..NOAH..07S..SG;MZRA90,95,97,ZWR9#..NOAH..(SG,SZ,X)..CBU202201

main53510-V1020iMZRA92..VOXY..08S;MZRA95..VOXY..IV5202201-202501

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-C0iMZRA9#,ZWR9#..G; MZRA90,95,ZWR90,95..Z; MZRA92..08S..SG;MZRA95..SG..IV5; MZRA95..X..IV5202201-202501

BLACK,TRIM0#,2#; BLACK,TRIM1#; BLACK,TRIM2#; BLACK,TRIM2#,4#

53614CLAMP, HOOD LOCK CONTROL CABLE

main82711-3F400×2iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main82711-52070×2iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

53641CLAMP, HOOD LOCK CONTROL WIRE

main82711-1E230iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

9010906372

main90109-06372

9011906A15

main90119-06A15

9046312570

main90463-12570

9155180820

main91551-80820

18 parts on this diagram · 1 diagram in section
