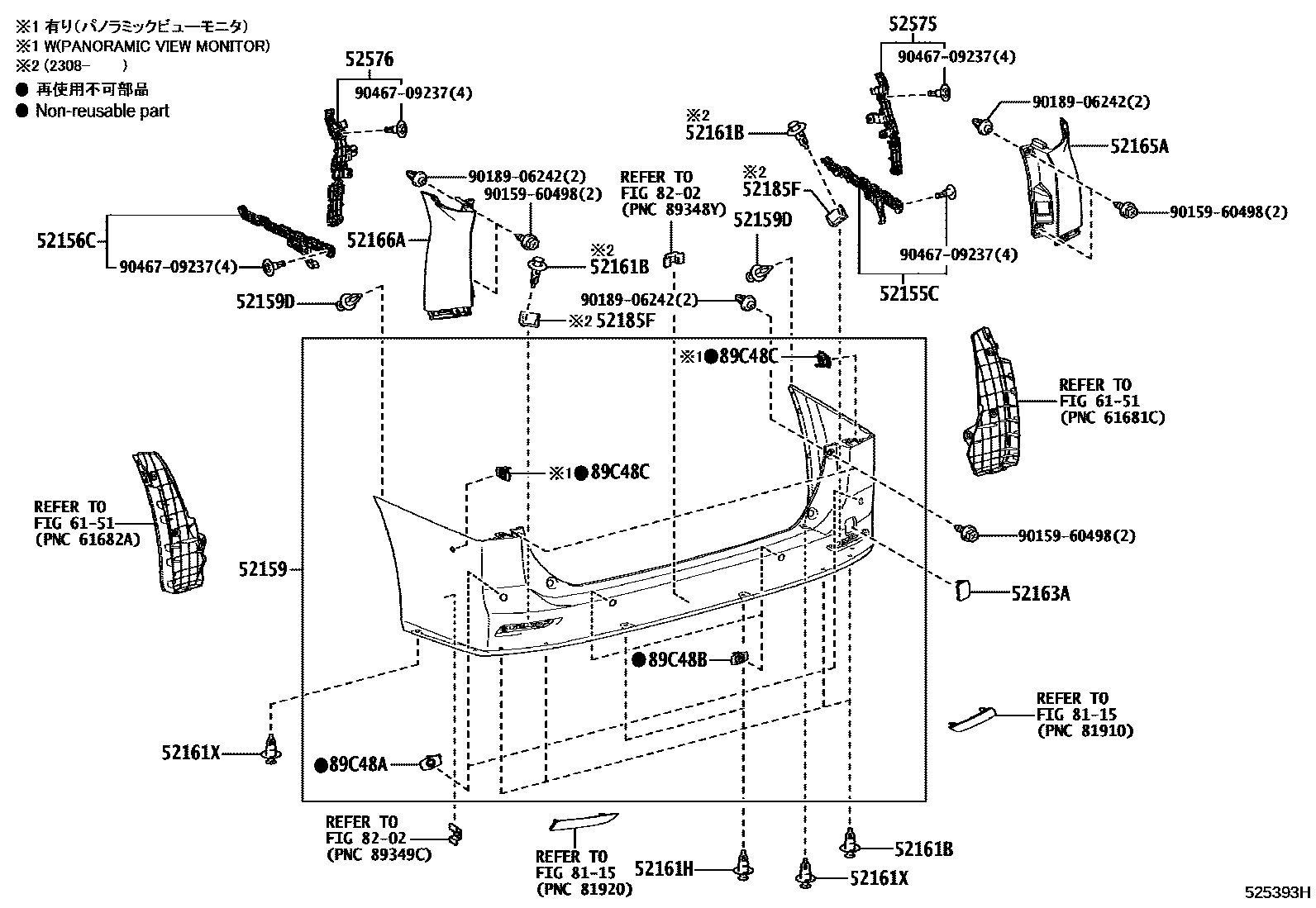

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52156-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

52159COVER, REAR BUMPER

main52159-V1910-A0iMZRA90,95,ZWR90,95..X..CBU202201-202502

WHITE PEARL CS,070

main52159-V1910-B0iMZRA90,95,ZWR90,95..X..CBU202201

METAL STREAM ME,1K0

main52159-V1910-C0iMZRA90,95,ZWR90,95..X..CBU202201

ATTITUDE BLACK MC,218

main52159-V1910-C1iMZRA90,95,ZWR90,95..X..CBU202201-202502

SPARKLING BLACK PEARL CS,220

main52159-V1910-E0iMZRA90,95,ZWR90,95..X..CBU202201-202502

STEEL BLONDE ME,4X1

main52159-V1912-B0iMZRA90,95,ZWR90,95..(SG,SZ)..CBU202201

METAL STREAM ME,070 ,1K0

main52159-V1912-C0iMZRA90,95,ZWR90,95..(SG,SZ)..CBU202201

ATTITUDE BLACK CS,1K0 ,218

main52159-V1912-C2iMZRA90,95,ZWR90,95..(SG,SZ)..CBU202201

GLITTER BLACK GF,218 ,226

main52159-V1914-A0iMZRA95..IV5;MZRA92..08S..SG;MZRA92,97,ZWR92..G202201-202501

WHITE PEARL CS,070

main52159-V1914-B0iMZRA95..IV5;MZRA92..08S..SG;MZRA92,97,ZWR92..G202201-202501

METAL STREAM ME,1K0

main52159-V1914-B2iMZRA92,ZWR92..VOXY..07S202201-202502

MASSIVE GRAY,1L6

main52159-V1914-C0iMZRA95..IV5;MZRA92..08S..SG;MZRA92,97,ZWR92..G202201-202501

ATTITUDE BLACK MC,218

main52159-V1914-C1iMZRA95..IV5;MZRA92..08S..SG;MZRA92,97,ZWR92..G202201-202501

SPARKLING BLACK PEARL CS,220

main52159-V1914-C2iMZRA92..08S..SG;MZRA95..SG..IV5202201-202501

GLITTER BLACK GF,226

main52159-V1914-D0iMZRA92..NOAH..08S..SG;MZRA95..NOAH..SG..IV5202201-202501

RED M.M,3R3

main52159-V1914-E0iMZRA92,97,ZWR92..X202201-202502

STEEL BLONDE ME,4X1

main52159-V1911-A0supersedes 52159-V1910-A0iMZRA90,95,ZWR90,95..G,Z202201-202501

main52159-V1911-B0supersedes 52159-V1910-B0iMZRA90,95,ZWR90,95..G,Z202201-202501

main52159-V1911-C0supersedes 52159-V1910-C0iMZRA90,95,ZWR90,95..G,Z202201-202501

main52159-V1911-C1supersedes 52159-V1910-C1iMZRA90,95,ZWR90,95..G,Z202201-202501

main52159-V1911-E0supersedes 52159-V1910-E0iMZRA90,95,ZWR90,95..G,Z202201-202501

main52159-V1913-A0supersedes 52159-V1912-A0iMZRA90,95,ZWR90,95..(SG,SZ)..CBU202201-202502

main52159-V1913-B0iMZRA90,95,ZWR90,95..(SG,SZ)..CBU202201

main52159-V1913-B2supersedes 52159-V1912-B2iMZRA90,95,ZWR90,95..VOXY..CBU202201-202502

main52159-V1913-C0iMZRA90,95,ZWR90,95..(SG,SZ)..CBU202201

main52159-V1913-C1supersedes 52159-V1912-C1iMZRA90,95,ZWR90,95..(SG,SZ)..CBU202201-202502

main52159-V1913-C2iMZRA90,95,ZWR90,95..(SG,SZ)..CBU202201

main52159-V1913-D0supersedes 52159-V1912-D0iMZRA90,95,ZWR90,95..NOAH..(SG,SZ)..CBU202201-202502

52159DCLIP, REAR BUMPER COVER

main90467-05170×2iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

52161BPIECE, REAR BUMPER

main52161-16010×4iMZRA90,95,ZWR90,95..CBU202201-202309

52161HPIECE, REAR BUMPER

main52161-16010×2iMZRA90,95,ZWR90,95..(SG,SZ,X)..CBU; MZRA92..08S..X;MZRA92,97,ZWR92..07S..(SG,X)202201

52161XPIECE, REAR BUMPER

main52161-16010×2iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

52163APLATE, REAR BUMPER, RH

main52163-V1010-A0iMZRA92..08S..X;MZRA92,ZWR92..07S..(SG,X);MZRA90,95,97,ZWR90,95..X..CBU202201-202502

WHITE PEARL CS.,070

main52163-V1010-B0iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

METAL STREAM ME,1K0

main52163-V1010-B1iMZRA92..VOXY..08S;MZRA95..VOXY..IV5202201-202501

MASSIVE GRAY,1L6

main52163-V1010-C0iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

ATTITUDE BLACK MC.,218

main52163-V1010-C1iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

SPARKLING BLACK PEARL CS.,220

main52163-V1010-C2iMZRA92,ZWR92..07S..SG202201

GLITTER BLACK GF.,226

main52163-V1010-D0iMZRA92..NOAH..08S..SG;MZRA95..NOAH..SG..IV5202201-202501

RED M.M.,3R3

main52163-V1010-E0iMZRA9#,ZWR9#..X..CBU202201-202502

STEEL BLONDE ME.,4X1

main52163-V1030iMZRA90,95,ZWR90,95..(SG,SZ)..CBU202201

52165ACOVER, REAR BUMPER, UPR RH

main52165-V1010-A0iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

WHITE PEARL CS.,070

main52165-V1010-B0iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

METAL STREAM ME,1K0

main52165-V1010-B1iMZRA90,95,ZWR90,95..VOXY..CBU; MZRA92,ZWR92..VOXY..07S202201-202502

main52165-V1010-C0iMZRA90,95,ZWR90,95..(SG,SZ)..CBU; MZRA92..08S..X;MZRA92,ZWR92..07S..(SG,X);MZRA90,95,97,ZWR90,95..X..CBU202201

main52165-V1010-C1iMZRA90,95,ZWR90,95..(SG,SZ)..CBU; MZRA92..08S..X;MZRA92,ZWR92..07S..(SG,X);MZRA90,95,97,ZWR90,95..X..CBU202201-202502

main52165-V1010-C2iMZRA90,95,ZWR90,95..(SG,SZ)..CBU; MZRA92,ZWR92..07S..SG202201

main52165-V1010-D0iMZRA90,95,ZWR90,95..NOAH..(SG,SZ)..CBU; MZRA92,ZWR92..NOAH..07S..SG202201-202502

main52165-V1010-E0iMZRA9#,ZWR9#..X..CBU202201-202502

STEEL BLONDE ME.,4X1

52166ACOVER, REAR BUMPER, UPR LH

main52166-V1010-A0iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

WHITE PEARL CS.,070

main52166-V1010-B0iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

METAL STREAM ME,1K0

main52166-V1010-B1iMZRA92..VOXY..08S;MZRA95..VOXY..IV5202201-202501

MASSIVE GRAY,1L6

main52166-V1010-C0iMZRA90,95,ZWR90,95..(SG,SZ)..CBU; MZRA92..08S..X;MZRA92,ZWR92..07S..(SG,X);MZRA90,95,97,ZWR90,95..X..CBU202201

main52166-V1010-C1iMZRA90,95,ZWR90,95..(SG,SZ)..CBU; MZRA92..08S..X;MZRA92,ZWR92..07S..(SG,X);MZRA90,95,97,ZWR90,95..X..CBU202201-202502

main52166-V1010-C2iMZRA92..08S..SG;MZRA95..SG..IV5202201-202501

GLITTER BLACK GF.,226

main52166-V1010-D0iMZRA90,95,ZWR90,95..NOAH..(SG,SZ)..CBU; MZRA92,ZWR92..NOAH..07S..SG202201-202502

main52166-V1010-E0iMZRA95..X..IV5;MZRA9#,ZWR9#..G,Z202201-202501

STEEL BLONDE ME.,4X1

52185FBRACKET, REAR BUMPER SIDE MOUNTING

main52185-V1040×2iMZRA90,95,ZWR90,95..(SG,SZ,X)..CBU202309

52575RETAINER, REAR BUMPER SIDE, RH

main52575-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

52576RETAINER, REAR BUMPER SIDE, LH

main52576-V1010iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

6151SIDE MEMBER

→ Go to FIG 61-51

8115REFLEX REFLECTOR

→ Go to FIG 81-15

8202WIRING & CLAMP

→ Go to FIG 82-02

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-42230-A2iZWR90,95..SG,SZ202501

main89348-42230-B8iZWR90,95..SG,SZ202406

main89348-42230-C0iMZRA90,95..(SG,SZ)..CBU202406-202605

main89348-42230-C7iZWR90,95..SG,SZ202406

main89348-42240-A2iMZRA90,95..(SG,SZ)..CBU202501-202605

main89348-42240-B8iMZRA90,95..(SG,SZ)..CBU202406-202605

main89348-42240-C0iZWR90,95..SG,SZ202406

main89348-42240-C7iZWR90,95..SG,SZ202406

main89348-K0280-A1iMZRA90,95,ZWR90,95..(SG,SZ)..CBU202201-202405

main89348-K0280-B5iMZRA90,95,ZWR90,95..(SG,SZ)..CBU202201-202405

main89348-K0280-B6iMZRA90,95,ZWR90,95..VOXY..CBU202201-202405

main89348-K0280-C2iMZRA90,95,ZWR90,95..(SG,SZ)..CBU202201-202405

main89348-K0280-C4iMZRA90,95,ZWR90,95..(SG,SZ)..CBU202201-202405

main89348-K0280-C5iMZRA90,95,ZWR90,95..(SG,SZ)..CBU202201-202405

main89348-K0280-D5iMZRA90,95,ZWR90,95..NOAH..(SG,SZ)..CBU202201-202405

main89348-K0290-A1iMZRA90,95,ZWR90,95..(SG,SZ)..CBU202201-202405

main89348-K0290-B5iMZRA90,95,ZWR90,95..(SG,SZ)..CBU202201-202405

main89348-K0290-B6iMZRA90,95,ZWR90,95..VOXY..CBU202201-202405

main89348-K0290-C2iMZRA90,95,ZWR90,95..(SG,SZ)..CBU202201-202405

main89348-K0290-C4iMZRA90,95,ZWR90,95..(SG,SZ)..CBU202201-202405

main89348-K0290-C5iMZRA90,95,ZWR90,95..(SG,SZ)..CBU202201-202405

main89348-K0290-D5iMZRA90,95,ZWR90,95..NOAH..(SG,SZ)..CBU202201-202405

main89348-V1100-A0iMZRA95..IV5;MZRA92,ZWR92;MZRA90,95,97,ZWR90,95..(G,X,Z)..CBU202201-202501

main89348-V1100-A1iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..X..CBU202501-202605

main89348-V1100-B0iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

main89348-V1100-B1iMZRA95..VOXY..IV5;MZRA92,ZWR92..VOXY202201-202501

main89348-V1100-C0iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..X..CBU202201-202605

main89348-V1100-C1iMZRA95..IV5;MZRA92,ZWR92;MZRA90,95,97,ZWR90,95..(G,X,Z)..CBU202201-202501

main89348-V1100-C2iMZRA92..07S..SG202201-202605

main89348-V1100-D0iMZRA95..NOAH..SG..IV5;MZRA92,ZWR92..NOAH..SG202201-202501

main89348-V1100-E0iMZRA9#,ZWR9#..G,X,Z202201-202501

main89348-V1110-A0iMZRA95..IV5;MZRA92,ZWR92;MZRA90,95,97,ZWR90,95..(G,X,Z)..CBU202201-202501

main89348-V1110-A1iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..X..CBU202501-202605

main89348-V1110-B0iZWR92..SG202201

main89348-V1110-B1iMZRA95..VOXY..IV5;MZRA92,ZWR92..VOXY202201-202501

main89348-V1110-C0iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

main89348-V1110-C1iMZRA95..IV5;MZRA92,ZWR92;MZRA90,95,97,ZWR90,95..(G,X,Z)..CBU202201-202501

main89348-V1110-C2iMZRA92..07S..SG202201-202605

main89348-V1110-D0iMZRA95..NOAH..SG..IV5;MZRA92,ZWR92..NOAH..SG202201-202501

main89348-V1110-E0iMZRA9#,ZWR9#..G,X,Z202201-202501

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-33240-A2×2iMZRA95..X..IV5;MZRA92,97,ZWR92;MZRA90,95,ZWR90,95..SG,SZ202201-202405

main89348-33240-B5×2iMZRA95..X..IV5;MZRA92,97,ZWR92;MZRA90,95,ZWR90,95..SG,SZ202201-202405

main89348-33240-B6×2iMZRA90,92,95,ZWR9#..VOXY202201-202405

main89348-33240-C0×2iMZRA95..X..IV5;MZRA92,97,ZWR92;MZRA90,95,ZWR90,95..SG,SZ202201-202405

main89348-33240-C3×2iMZRA95..X..IV5;MZRA92,97,ZWR92;MZRA90,95,ZWR90,95..SG,SZ202201-202405

main89348-33240-C4×2iMZRA90,92,95,ZWR9#..SG,SZ202201-202405

main89348-33240-D2×2iMZRA90,92,95,ZWR9#..NOAH..(SG,SZ)202201-202405

main89348-33240-E1×2iMZRA95..X..IV5;MZRA92,97,ZWR92..G,X202201-202405

main89348-45020×2iMZRA92,97,ZWR92..G; MZRA95..IV5;MZRA92..08S..SG;MZRA92,97,ZWR92..G202406-202501

main89348-45020-A1×2iMZRA92..08S..X;MZRA97,ZWR92..X;MZRA92..07S..(SG,X);MZRA90,95..(SG,SZ)..CBU202501-202605

main89348-45020-C1×2iZWR9#..SG,SZ202406

main89348-45020-C8×2iMZRA92..07S..SG;MZRA90,95..(SG,SZ)..CBU202406-202605

main89348-45020-P3×2iMZRA92..08S..X;MZRA97,ZWR92..X;MZRA92..07S..(SG,X);MZRA90,95..(SG,SZ)..CBU202406-202605

main89348-48320-A1×2iMZRA90,95,ZWR90,95..X..CBU202501-202605

PLATINUM WHITE PEARL MC.,089

main89348-48320-B1×2iMZRA90,95,ZWR90,95..X..CBU202406-202605

METAL STREAM ME,1K0

main89348-48320-C2×2iMZRA90,95,ZWR90,95..X..CBU202406-202605

ATTITUDE BLACK MC.,218

main89348-V1090-A0×2iMZRA90,95,ZWR90,95..(G,X,Z)..CBU202201-202405

WHITE PEARL CS.,070

main89348-V1090-B0×2supersedes 89348-48320-B1iMZRA90,95,ZWR90,95..(G,X,Z)..CBU202201-202405

METAL STREAM ME,1K0

main89348-V1090-C0×2supersedes 89348-48320-C2iMZRA90,95,ZWR90,95..(G,X,Z)..CBU202201-202405

ATTITUDE BLACK MC.,218

main89348-V1090-C1×2iMZRA90,95,ZWR90,95..(G,X,Z)..CBU202201-202405

SPARKLING BLACK PEARL CS.,220

main89348-V1090-E0×2iMZRA90,95,ZWR90,95..(G,X,Z)..CBU202201-202405

STEEL BLONDE ME.,4X1

main89348-48320×2iMZRA90,95,ZWR90,95..G,Z202406-202501

89C48CRETAINER, ULTRASONIC SENSOR, REAR SIDE

main89348-K0231×2iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202201-202501

9015960498

main90159-60498

9018906242

main90189-06242

9046709237

main90467-09237

22 parts on this diagram · 3 diagrams in section
