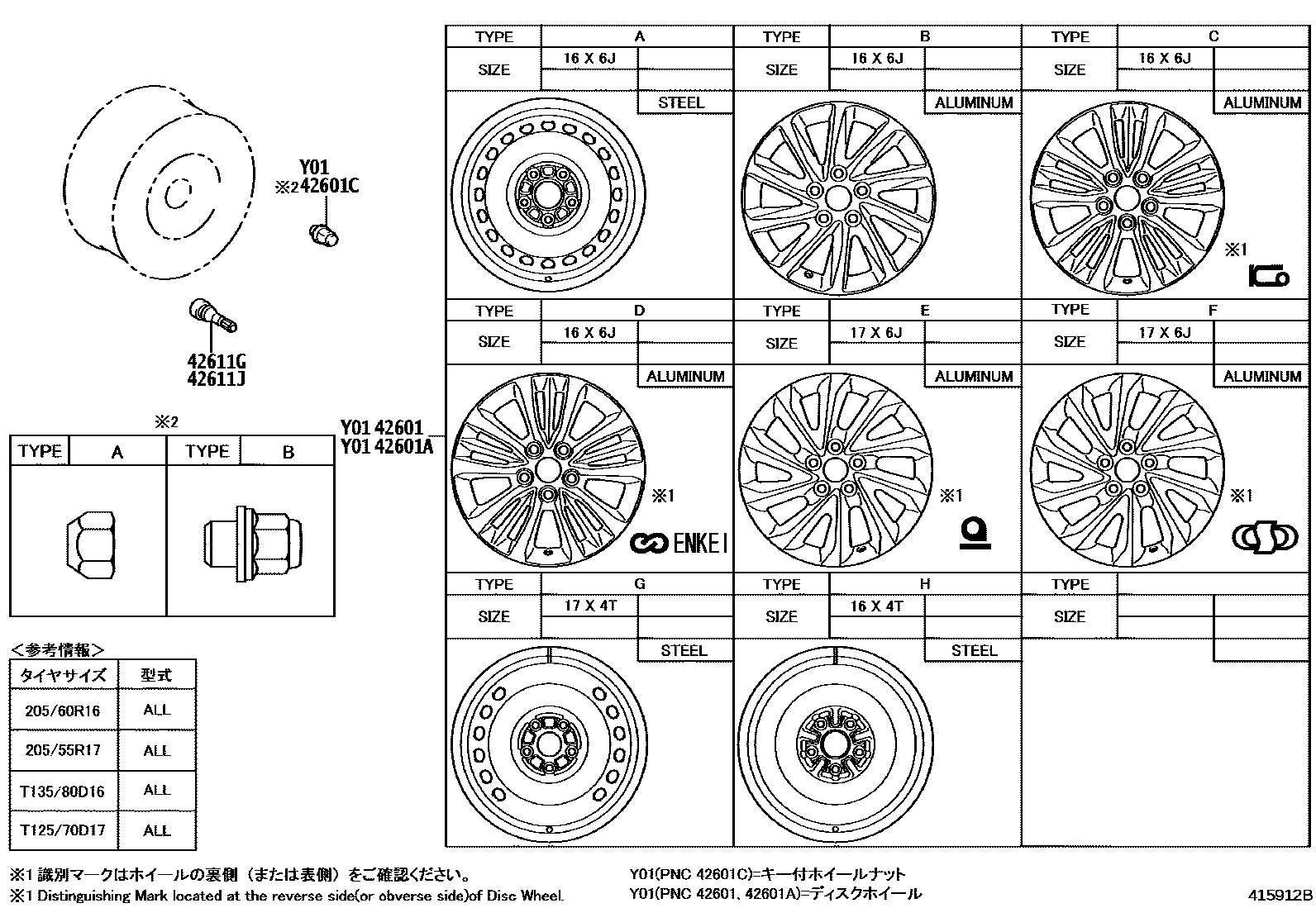

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-28A50×4iMZRA9#,ZWR9#..X..CBU202201

main42611-28B20×4iMZRA9#,ZWR9#..G,Z202201-202501

main42611-28B40×4iMZRA95,ZWR95..NOAH..(SG,SZ);MZRA90,92,ZWR90,92..NOAH..SG202201-202501

main42611-28B50×4iMZRA90,ZWR90..VOXY..SG;MZRA92,95,ZWR92,95..VOXY202201-202501

main42611-28B60×4iMZRA90,ZWR90..NOAH..SZ202201

main42611-28B70×4iMZRA90,ZWR90..VOXY..SZ202201

main42611-28B80×4iMZRA95,ZWR95..NOAH..(SG,SZ);MZRA90,92,ZWR90,92..NOAH..SG202201-202501

main42611-28B90×4iMZRA90,ZWR90..VOXY..SG;MZRA92,95,ZWR92,95..VOXY202201-202501

main42611-28C00×4iMZRA90,ZWR90..NOAH..SZ202201

main42611-28C10×4iMZRA90,ZWR90..VOXY..SZ202201

42601AWHEEL, DISC (FOR SPARE)

main42611-21280iMZRA95..(SG,SZ,X)..CBU202201

main4261B-42010iMZRA90,ZWR90,95..SG,SZ,X202201

42601CNUT, HUB (FOR AXLE)

main90942-01007×20iMZRA95..X..IV5202201-202501

main90942-01033×20iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202201-202501

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iMZRA95..X..IV5;MZRA95,ZWR95..G,SG,SZ,Z;MZRA90,92,97,ZWR90,92..G,SG,Z202201-202501

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iMZRA90,ZWR90,95..G,Z; MZRA95..G,Z202201-202501

5 parts on this diagram · 3 diagrams in section
