MANIFOLD

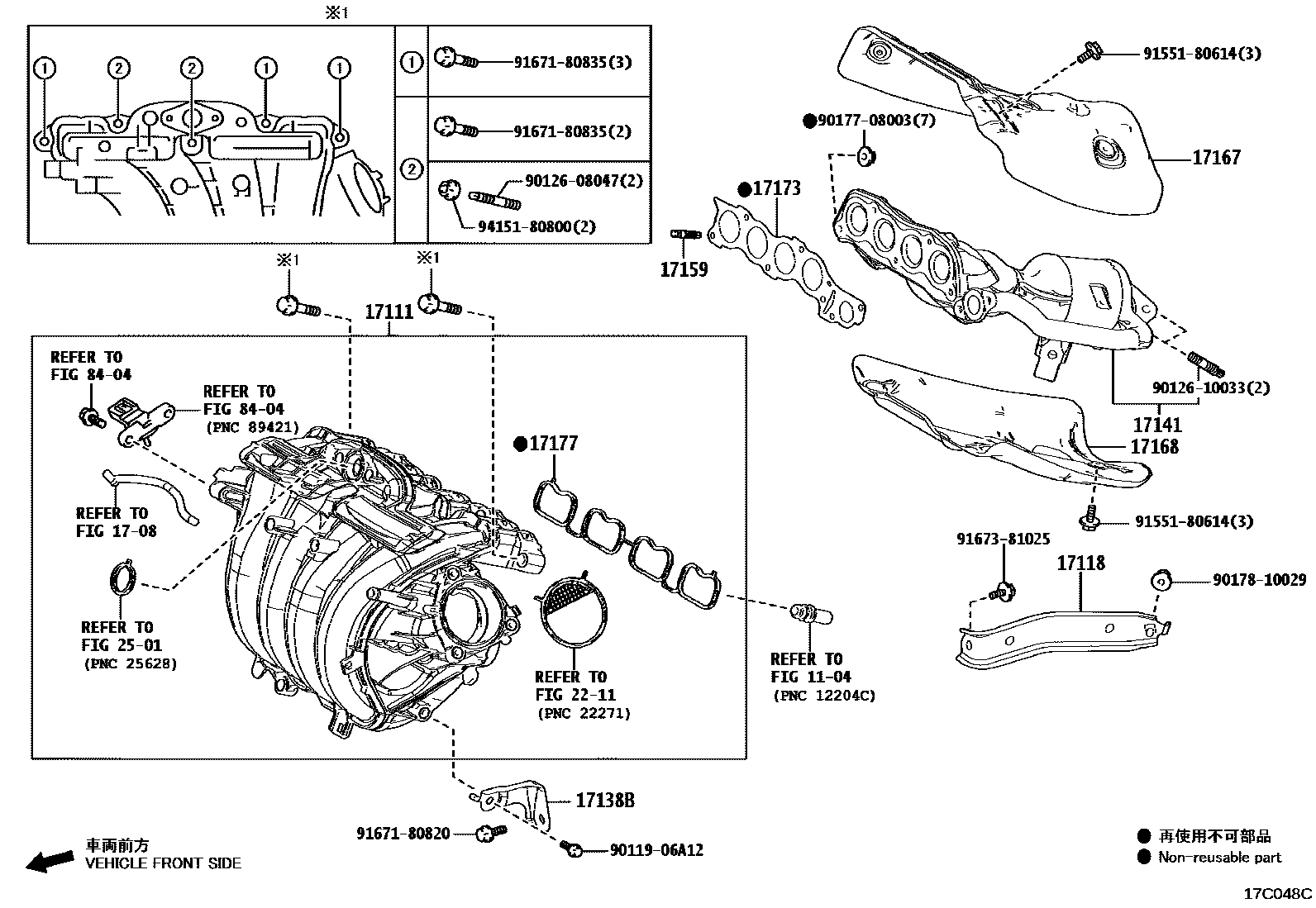

Parts diagram

1104CYLINDER HEAD

→ Go to FIG 11-04

1708VACUUM PIPING

→ Go to FIG 17-08

17111MANIFOLD, INTAKE

main17120-24010i202201-202605

main17120-37110i202201-202501

17118STAY, MANIFOLD

main17118-24040i202201

main17118-37100i202201

17138BSTAY, INTAKE MANIFOLD

main17138-24010i202201-202501

17141MANIFOLD, EXHAUST

main17141-24240i202201-202501

main17141-37270i202201-202501

main17141-37390i202501

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i202201

main90126-08052×7i202201-202501

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-24070i202201-202501

main17167-37100i202201-202501

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-24050i202201

main17168-37150i202201-202501

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-24010i202201-202501

main17173-37010i202201-202501

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-24020i202201-202501

main17177-37030i202201

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9011906A12

main90119-06A12

9012608047

main90126-08047

9012610033

main90126-10033

9017708003

main90177-08003

9017810029

main90178-10029

9155180614

main91551-80614

9167180820

main91671-80820

9167180835

main91671-80835

9167381025

main91673-81025

9415180800

main94151-80800

24 parts on this diagram · 2 diagrams in section
