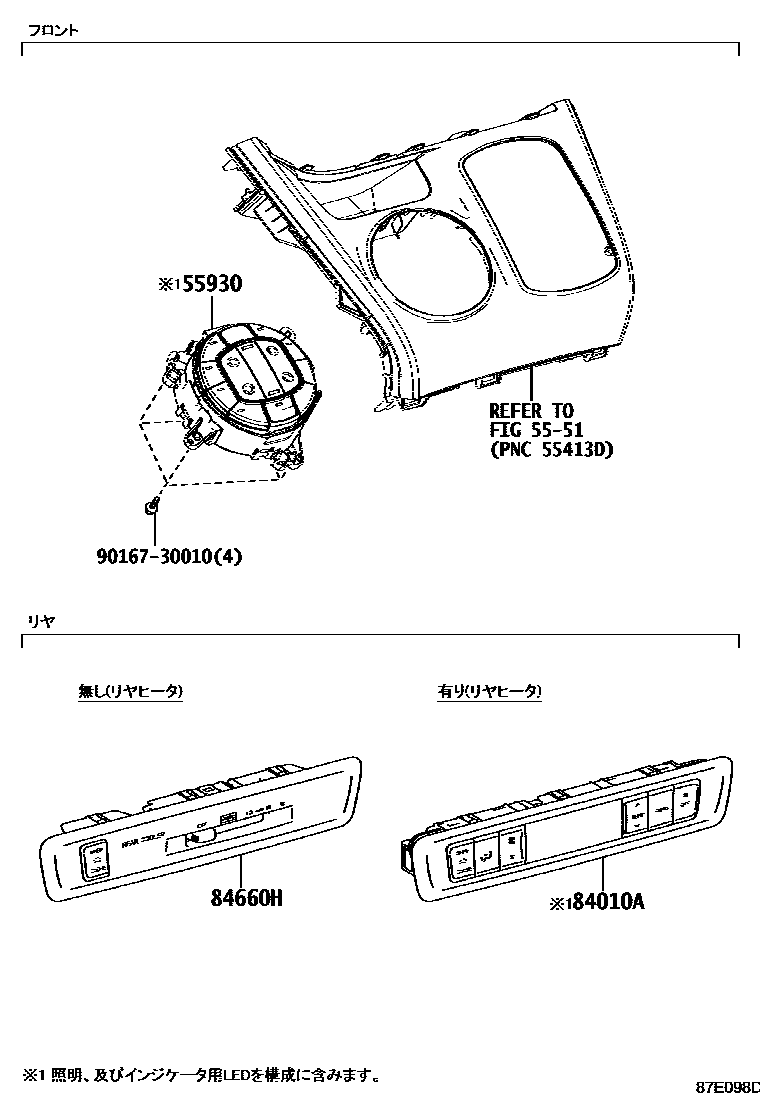

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1������������� 0002 1���� ������ 0003 1�� ������ 0004 1���

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

55930CONTROL ASSY, CENTER CLUSTER MODULE

main55930-28060supersedes 55930-28051iZRR8#..07S..X..CBU; ZRR8#..X..CBU; ZRR8#..X..IV5; ZRR80..07S..X..CBU201401-201706

main55930-28061iZRR8#..X..CBU; ZRR8#..X..IV5201706

main55930-28080supersedes 55930-28071iZRR8#..(G,GI,SI,V,XI,ZS)..CBU; ZRR8#..(SI,XI,ZS)..IV5; ZRR8#..07S..(SI,ZS)..CBU; ZRR80..07S..(SI,XI,ZS)..CBU; ZRR85..07S..(SI,ZS);ZRR80..07S..(SI,XI,ZS)..CBU201401-201706

main55930-28081iZRR8#..(G,GI,SI,V,XI,ZS)..CBU; ZRR8#..(SI,XI,ZS)..IV5201706

main55930-28100supersedes 55930-28091iZWR80..G,GI,V; ZWR80..SI,X,XI,ZS201402-201706

main55930-28101iZWR80..G,GI,V; ZWR80..SI,X,XI,ZS201706

main55930-28110iZRR80..07S..(SI,ZS)..CBU201605-201706

main55930-28120iZRR80..07S..(SI,ZS)..CBU201709

84010ACONTROL & PANEL ASSY, INTEGRATION

main84010-28200-B0iZRR8#,ZWR80..VOXY..X..CBU; ZRR8#..VOXY..X..IV5201706-202004

main84010-28320iZWR80..G,GI;ZRR80..(SI,ZS)..IV5; ZWR80..SI,ZS;ZRR8#..(G,GI,SI,ZS)..CBU201706

main84010-28210-B0iZRR80..07S..(SI,ZS)..CBU; ZRR80..G;ZRR85..07S..G; ZRR85..08S..(SI,ZS);ZRR85..07S..(GI,SI,V,ZS);ZRR80..(GI,SI,V,ZS)..CBU201401-201706

main84010-28330iZRR80..V;ZRR85..07S..V201706-202004

84660HSWITCH ASSY, COOLER CONTROL

main84660-28030-B0iZRR8#,ZWR80..NOAH..X..CBU; ZRR8#,ZWR80..SI..CBU; ZRR8#..(ESQIR,NOAH)..07S..(X,XI)..CBU; ZRR8#..07S..(SI,ZS)..CBU; ZRR8#..07S..(SI,ZS)..CBU;ZRR8#..VOXY..07S..X..CBU; ZRR8#..VOXY..07S..X..CBU; ZRR80..G;ZRR85..07S..G; ZRR85..08S..(SI,ZS);ZRR85..07S..(GI,SI,V,ZS);ZRR80..(GI,SI,V,ZS)..CBU; ZWR80..(ESQIR,NOAH)..(X,XI);ZRR8#..(ESQIR,NOAH)..(G,X,XI)..CBU; ZWR80..SI,ZS;ZRR8#..(GI,SI,V,ZS)..CBU;ZRR8#,ZWR80..VOXY..X..CBU201401-201706

main84660-28040-B0iZRR80..G;ZRR85..07S..G; ZRR85..08S..(SI,ZS);ZRR85..07S..(GI,SI,V,ZS);ZRR80..(GI,SI,V,ZS)..CBU201401-201706

main84660-28050iZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,ZS);ZRR80..(G,GI,SI,ZS)..CBU; ZWR80..SI,ZS;ZRR8#..(G,GI,SI,ZS)..CBU201706-202201

main84660-28060iZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU201706

9016730010

main90167-30010

5 parts on this diagram · 4 diagrams in section
