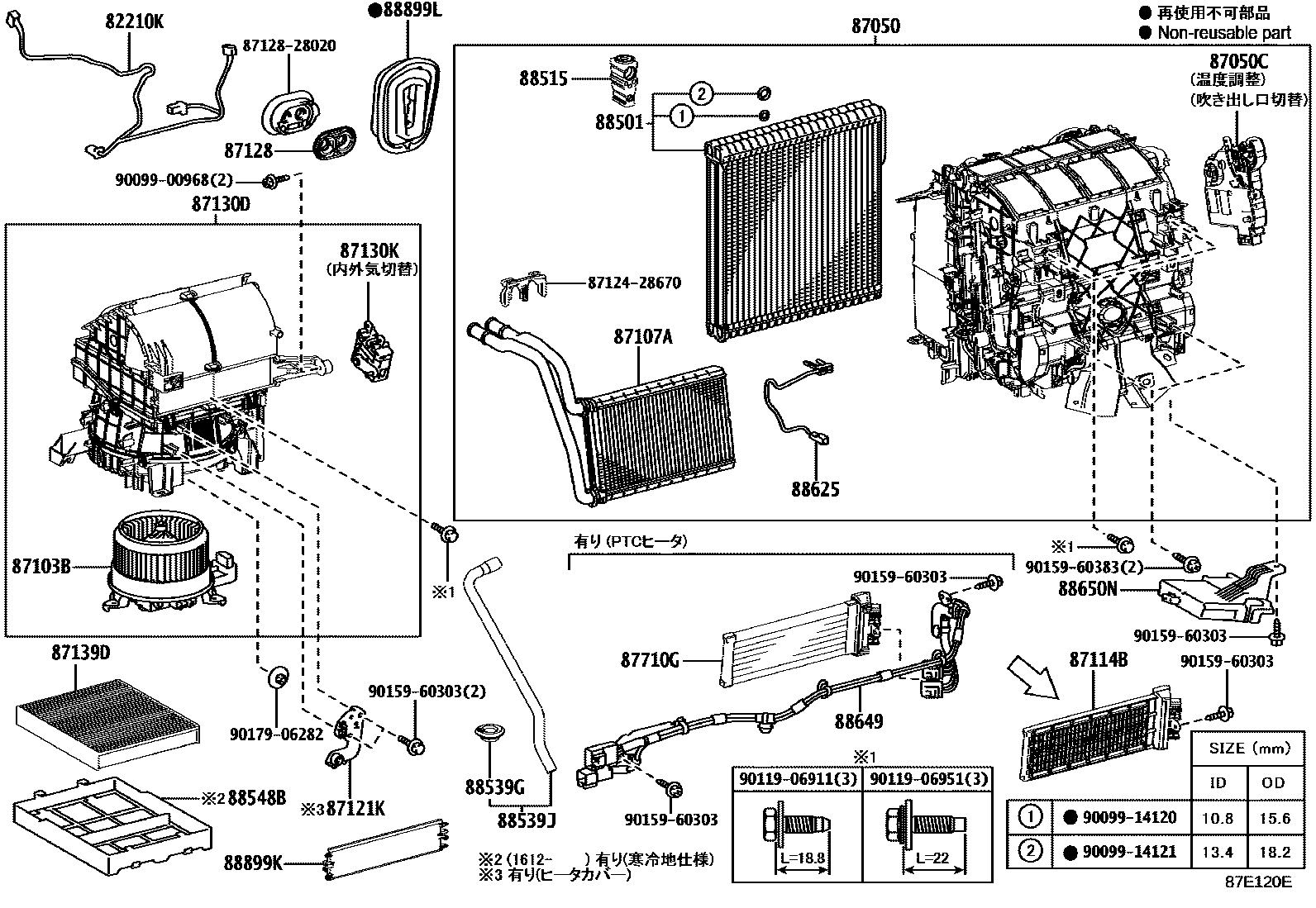

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1���� 0002 1����(��������) 0003 1���� 0004 1��,��(���) 0005 1��,��(���)

82210KHARNESS ASSY, AIR CONDITIONER

main82212-28080iZRR8#201401-201706

main82212-28090iZWR80201402-201706

87050RADIATOR ASSY, AIR CONDITIONER

main87050-28700iZRR8#201401-201706

main87050-28690iZRR80..X;ZRR85..X..CBU201401-201706

main87050-28730supersedes 87050-28710iZWR80..NOAH..X;ZWR80..G,GI,SI,ZS201706

main87050-28810iZRR8#; ZRR80..X;ZRR85..X..CBU201612-201706

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-48170iZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS201706

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-28120iZRR8#,ZWR80201401-201406

main87103-48160iZRR8#,ZWR80201407-201706

main87103-28130iZRR8#; ZRR80..X;ZRR85..X..CBU201612-201706

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-28320iZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS201706

87114BCOVER, HEATER

main87114-48110iZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS201706

87121KBRACKET, HEATER

main87114-28200iZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS201706

87128GROMMET, HEATER

main87128-28010iZRR8#,ZWR80201401-201706

87130DBLOWER ASSY

main87130-28590iZRR8#,ZWR80201401-201706

main87130-28600iZRR8#; ZRR80..X;ZRR85..X..CBU201612-201706

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-28240iZRR8#,ZWR80201401-201706

main87106-28250iZRR8#; ZRR80..X;ZRR85..X..CBU201612-201706

87139DELEMENT, AIR REFINER

main87139-28020iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201706-202004

main87139-58010iZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS201706

87710GQUICK HEATER ASSY

main87710-48020iZRR8#,ZWR80; ZRR80..X;ZRR85..X..CBU201401-201706

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-10180iZWR80202101-202112

main88501-28420iZWR80201402-201706

main88501-28430iZRR8#201706-202101

main88501-76020iZRR8#202101-202112

88515VALVE, COOLER EXPANSION

main88515-48110iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201706-202004

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90099-32129iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201706-202004

88539JHOSE, DRAIN COOLER

main88539-28400iZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS201706

88548BCASE, AIR FILTER

main88899-28640iZWR80201402-201706

88625THERMISTOR, COOLER, NO.1

main88620-28050iZWR80..NOAH..X;ZWR80..G,GI,SI,ZS201706

main88620-28060iZRR8#..(ESQIR,VOXY)..(V,X,XI)201706-202004

88649WIRING, COOLER, NO.2

main88649-28020iZRR8#; ZRR80..X;ZRR85..X..CBU201401-201612

main88649-28030iZWR80201402-201706

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-28A51iZRR8#..CBU201501-201706

main88650-28B90supersedes 88650-28A50iZRR8#..07S..(SI,ZS)..CBU; ZRR8#..07S..(X,XI)..CBU; ZRR8#..CBU; ZRR8#..IV5; ZRR80..07S..(SI,X,XI,ZS)..CBU; ZRR85..07S..(SI,ZS);ZRR80..07S..(SI,X,XI,ZS)..CBU201401-201501

main88650-28B91iZRR8#..07S..(SI,ZS)..CBU; ZRR8#..07S..(X,XI)..CBU; ZRR8#..CBU; ZRR8#..IV5; ZRR80..07S..(SI,X,XI,ZS)..CBU; ZRR85..07S..(SI,ZS);ZRR80..07S..(SI,X,XI,ZS)..CBU201501-201612

main88650-28B93iZRR8#..07S..(SI,ZS)..CBU; ZRR8#..07S..(X,XI)..CBU; ZRR8#..CBU; ZRR8#..GI; ZRR8#..IV5; ZRR80..07S..(SI,X,XI,ZS)..CBU; ZRR85..07S..(SI,ZS);ZRR80..07S..(SI,X,XI,ZS)..CBU201612-201706

main88650-28B94supersedes 88650-28A52iZRR8#..CBU; ZRR8#..IV5201706-201802

main88650-28B95supersedes 88650-28A53iZRR8#..NOAH..X..CBU;ZRR8#..(G,GI,SI,ZS)..CBU; ZRR80..(SI,ZS)..IV5;ZRR8#..NOAH..X..IV5201803

main88650-28C10iZWR80..G,GI,V; ZWR80..SI,X,XI,ZS201402-201706

main88650-28C11supersedes 88650-28C01iZWR80..G,GI,V; ZWR80..SI,X,XI,ZS201706-201802

main88650-28C12supersedes 88650-28C02iZWR80..(ESQIR,VOXY)..(X,XI); ZWR80..V201803-202004

88899KPLATE, COVER

main88899-28620iZRR8#,ZWR80201401-201706

main88899-47120iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201710-202004

88899LPARTS, COOLING UNIT

main88899-28660iZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS201706

8712428670CLAMP, HEATER

main87124-28670

8712828020GROMMET, HEATER

main87128-28020

9009900968

main90099-00968

9009914120

main90099-14120

9009914121

main90099-14121

9011906911

main90119-06911

9011906951

main90119-06951

9015960303

main90159-60303

9015960383

main90159-60383

9017906282

main90179-06282

32 parts on this diagram · 5 diagrams in section
