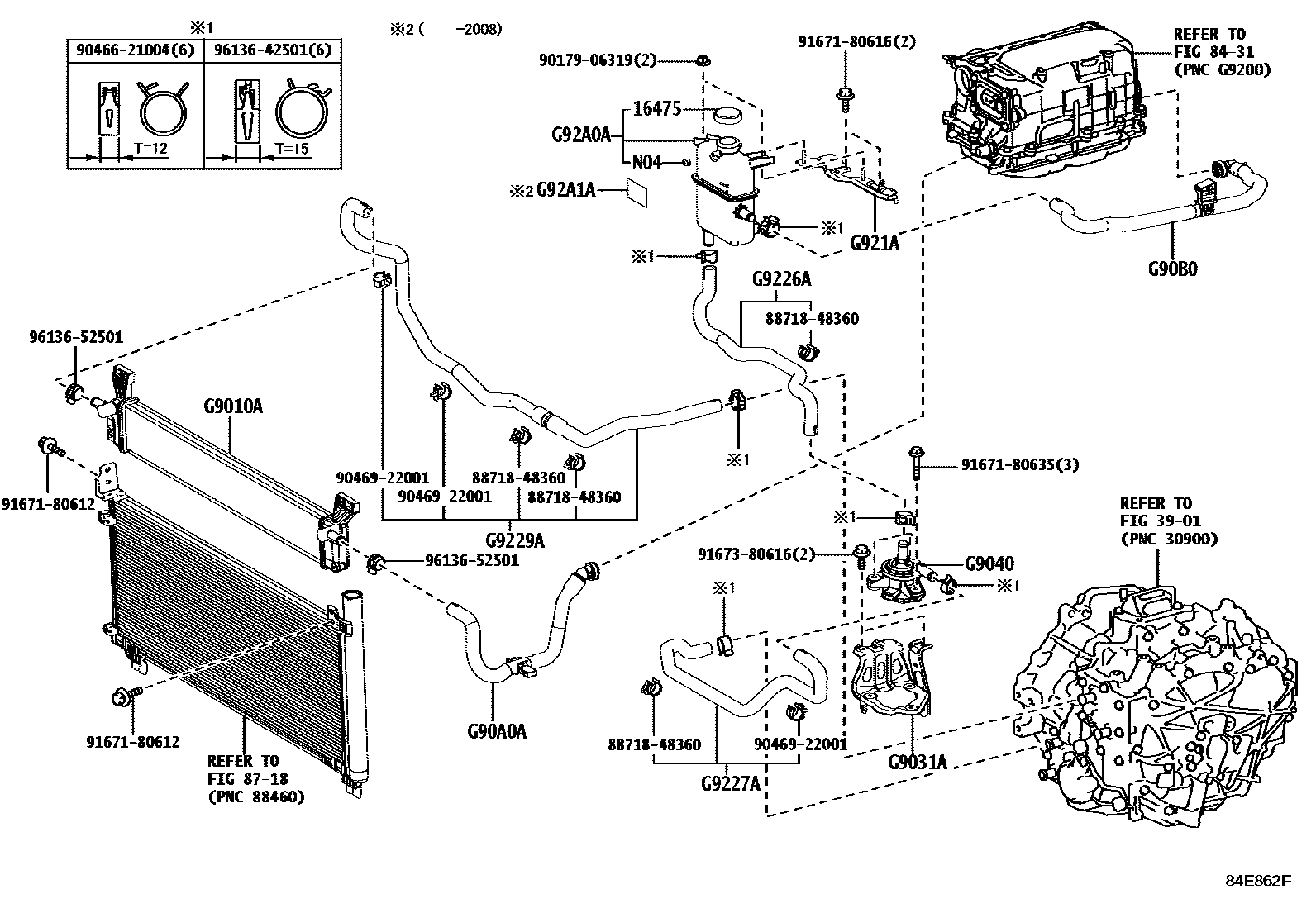

INVERTER COOLING

16475CAP, RESERVE TANK

main16475-28140i2ZRFXE..ZWR80..NOAH..X;2ZRFXE..ZWR80..G,GI,SI,ZS201612-202004

main16475-37010i2ZRFXE..ZWR80201402-201409

main16475-37011i2ZRFXE..ZWR80201410-201612

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8431HEV INVERTER

→ Go to FIG 84-31

8718HEATING & AIR CONDITIONING - COOLER PIPING

→ Go to FIG 87-18

G9010ARADIATOR ASSY

mainG901028030iZWR80201402-202004

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG914128010iZWR80201402-202004

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904052010iZWR80201402-202004

G90A0AHOSE ASSY, INVERTER COOLING, NO.1

mainG90A028010iZWR80201402-202004

G90B0HOSE ASSY, INVERTER COOLING, NO.2

mainG90B028010iZWR80..NOAH..X;ZWR80..G,GI,SI,ZS201402-202004

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H228010iZWR80201402-202004

G9226AHOSE, INVERTER COOLING, NO.2

mainG922628010iZWR80201402-202004

G9227AHOSE, INVERTER COOLING, NO.3

mainG922728010iZWR80201402-202004

G9229AHOSE, INVERTER COOLING, NO.5

mainG922928010iZWR80201402-202004

G92A0ATANK ASSY, INVERTER RESERVE

mainG910F28010iZWR80201402-201409

mainG910F28011iZWR80201410-202004

G92A1ALABEL, HYBRID COOLANT SYSTEM INFORMATION

mainG92A176010iZWR80201402-202008

8871848360PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48360

9017906319

main90179-06319

9046621004

main90466-21004

9046922001

main90469-22001

9167180612

main91671-80612

9167180616

main91671-80616

9167180635

main91671-80635

9167380616

main91673-80616

9613642501

main96136-42501

9613652501

main96136-52501

25 parts on this diagram · 1 diagram in section
