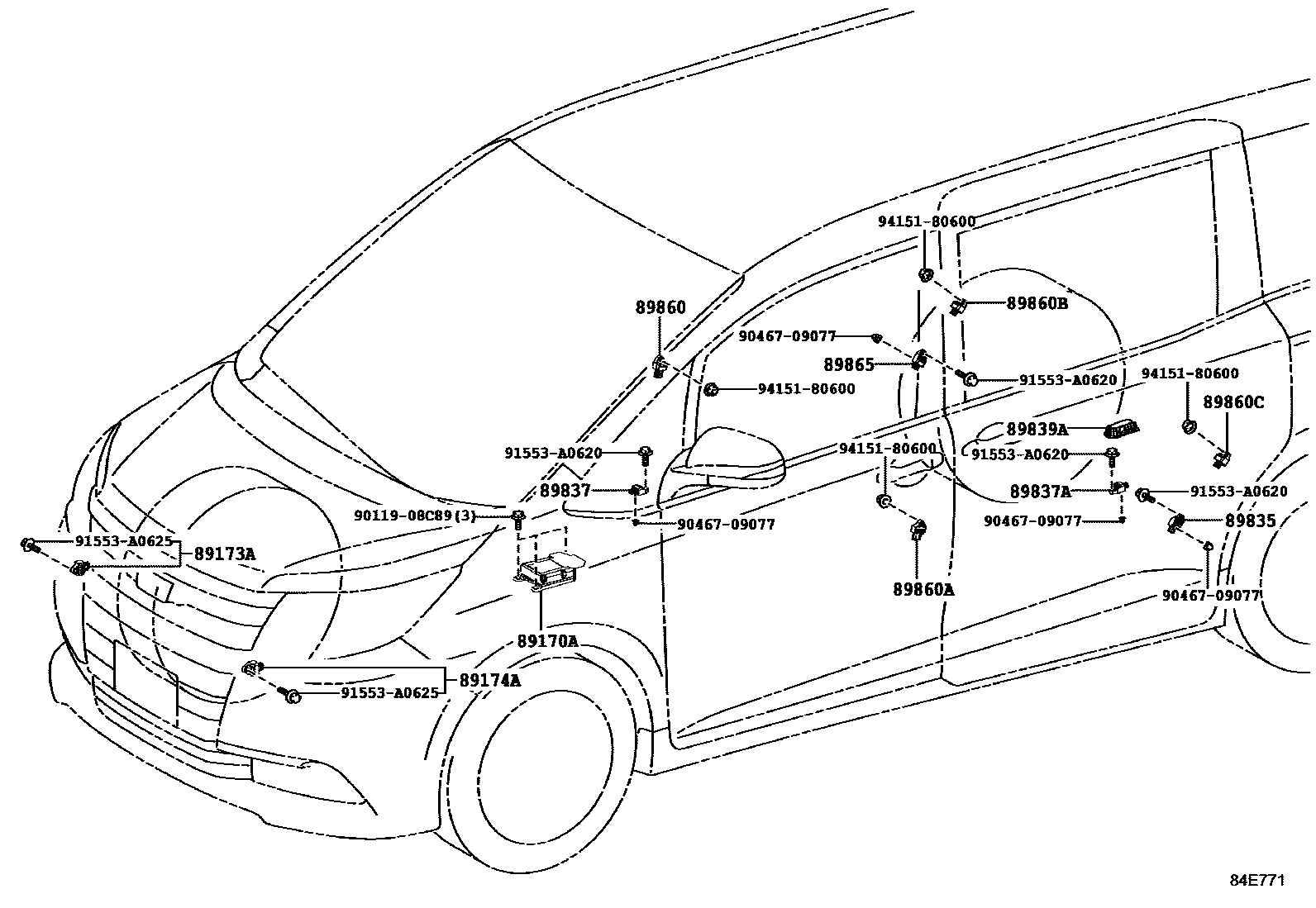

AIR BAG
89170ACOMPUTER ASSY, AIRBAG
main89170-28360iZRR8#..CBU; ZRR80..08S..(SI,X,XI,ZS)..CBU;ZRR85..07S..(SI,X,XI,ZS)..CBU201401-201706
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89835SENSOR, DOOR SIDE AIRBAG, LH
main89831-28050iZRR8#,ZWR80..CBU; ZRR80..08S..(SI,X,XI,ZS)..CBU;ZRR85..07S..(SI,X,XI,ZS)..CBU201401-201706
89837SENSOR, FRONT FLOOR SIDE AIRBAG
main89837-28040iZRR8#,ZWR80..CBU; ZRR80..08S..(SI,X,XI,ZS)..CBU;ZRR85..07S..(SI,X,XI,ZS)..CBU201401-201706
89837ASENSOR, REAR FLOOR SIDE AIRBAG
main89837-28040iZRR8#,ZWR80..CBU; ZRR80..08S..(SI,X,XI,ZS)..CBU;ZRR85..07S..(SI,X,XI,ZS)..CBU201401-201706
89839ACOVER, REAR FLOOR SIDE AIRBAG SENSOR
main89839-28020iZRR8#,ZWR80..NOAH..X..CBU;ZRR8#,ZWR80..(G,GI,SI,ZS)..CBU; ZRR85..07S..(SI,ZS);ZRR80..NOAH..08S..X..CBU;ZRR80..08S..(SI,ZS)..CBU;ZRR85..NOAH..07S..X..CBU201706
89860SENSOR ASSY, SIDE AIRBAG, RH
main89831-28030iZRR8#,ZWR80..CBU; ZRR80..08S..(SI,X,XI,ZS)..CBU;ZRR85..07S..(SI,X,XI,ZS)..CBU201401-201706
89860ASENSOR ASSY, SIDE AIRBAG, LH
main89831-28030iZRR8#,ZWR80..CBU; ZRR80..08S..(SI,X,XI,ZS)..CBU;ZRR85..07S..(SI,X,XI,ZS)..CBU201401-201706
89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2
main89831-28040iZRR8#,ZWR80..CBU; ZRR80..08S..(SI,X,XI,ZS)..CBU;ZRR85..07S..(SI,X,XI,ZS)..CBU201401-201706
89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2
main89831-28040iZRR8#,ZWR80..CBU; ZRR80..08S..(SI,X,XI,ZS)..CBU;ZRR85..07S..(SI,X,XI,ZS)..CBU201401-201706
89865SENSOR, DOOR SIDE AIRBAG, RH
main89831-28050iZRR8#,ZWR80..CBU; ZRR80..08S..(SI,X,XI,ZS)..CBU;ZRR85..07S..(SI,X,XI,ZS)..CBU201401-201706
9011908C89
main90119-08C89
9046709077
main90467-09077
91553A0620
main91553-A0620
91553A0625
main91553-A0625
9415180600
main94151-80600
17 parts on this diagram · 1 diagram in section
