WIRELESS DOOR LOCK

0001 1��(��������(ECU)) 0002 1��(��������(���� & �����)) 0003 1��(��������(���� & �����)) 0004 1��(��������)

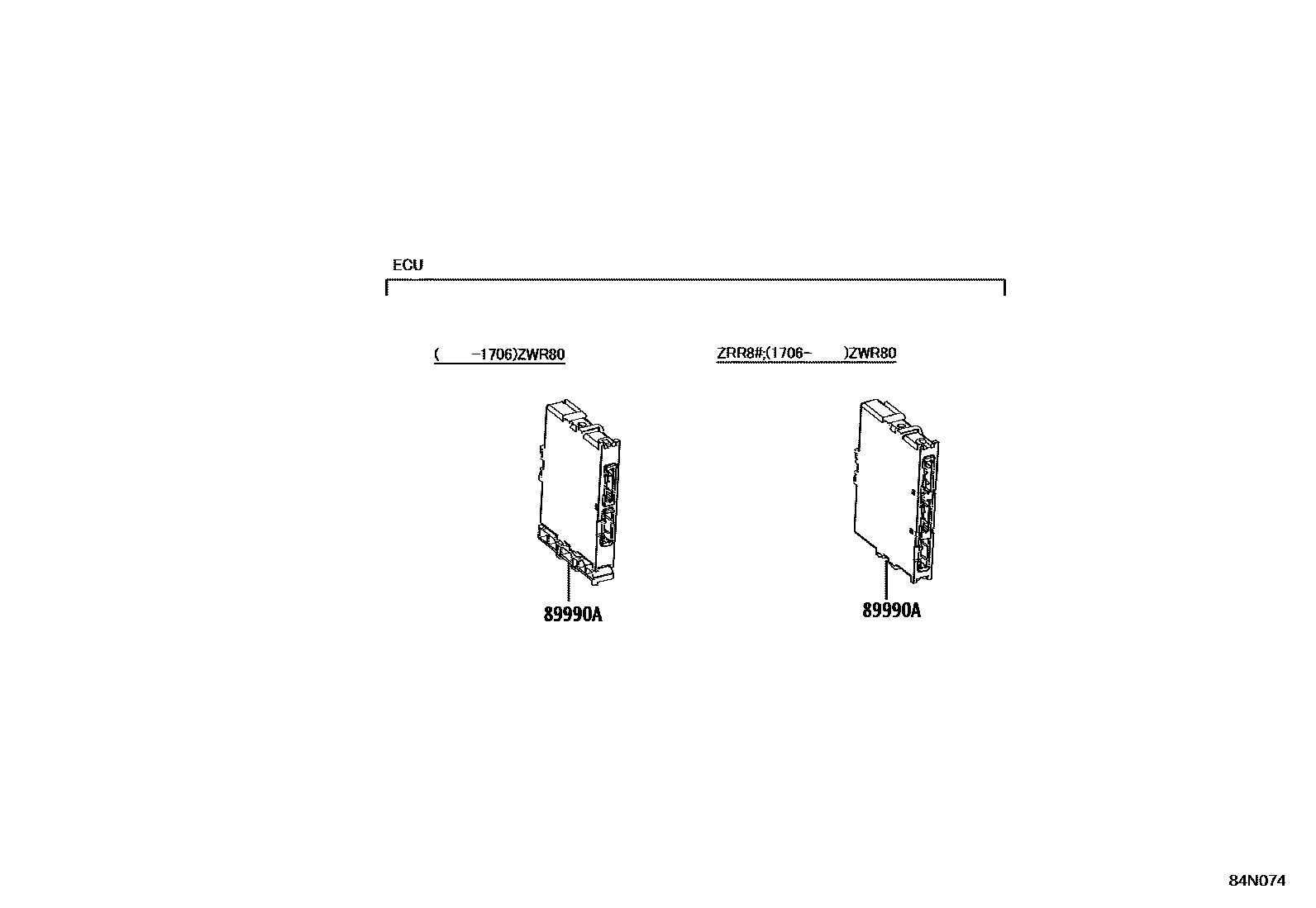

89990ACOMPUTER ASSY, SMART KEY

main89990-28200iZWR80..NOAH..X;ZWR80..G,GI,SI,ZS201706-202005

main89990-28220iZRR8#..(ESQIR,VOXY)..(X,XI)..CBU; ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5; ZRR8#..V201706-202004

main89990-28310iZRR8#..(X,XI)..CBU; ZRR8#..(X,XI)..IV5; ZRR8#..G,GI,SI,V,ZS201401-201511

main89990-28311iZRR8#..(X,XI)..CBU; ZRR8#..(X,XI)..IV5; ZRR8#..G,GI,SI,V,ZS201511-201706

main89990-28320iZWR80201402-201511

main89990-28321iZWR80201511-201706

main89990-28330iZWR80..NOAH..X;ZWR80..G,GI,SI,ZS202005

1 parts on this diagram · 4 diagrams in section
