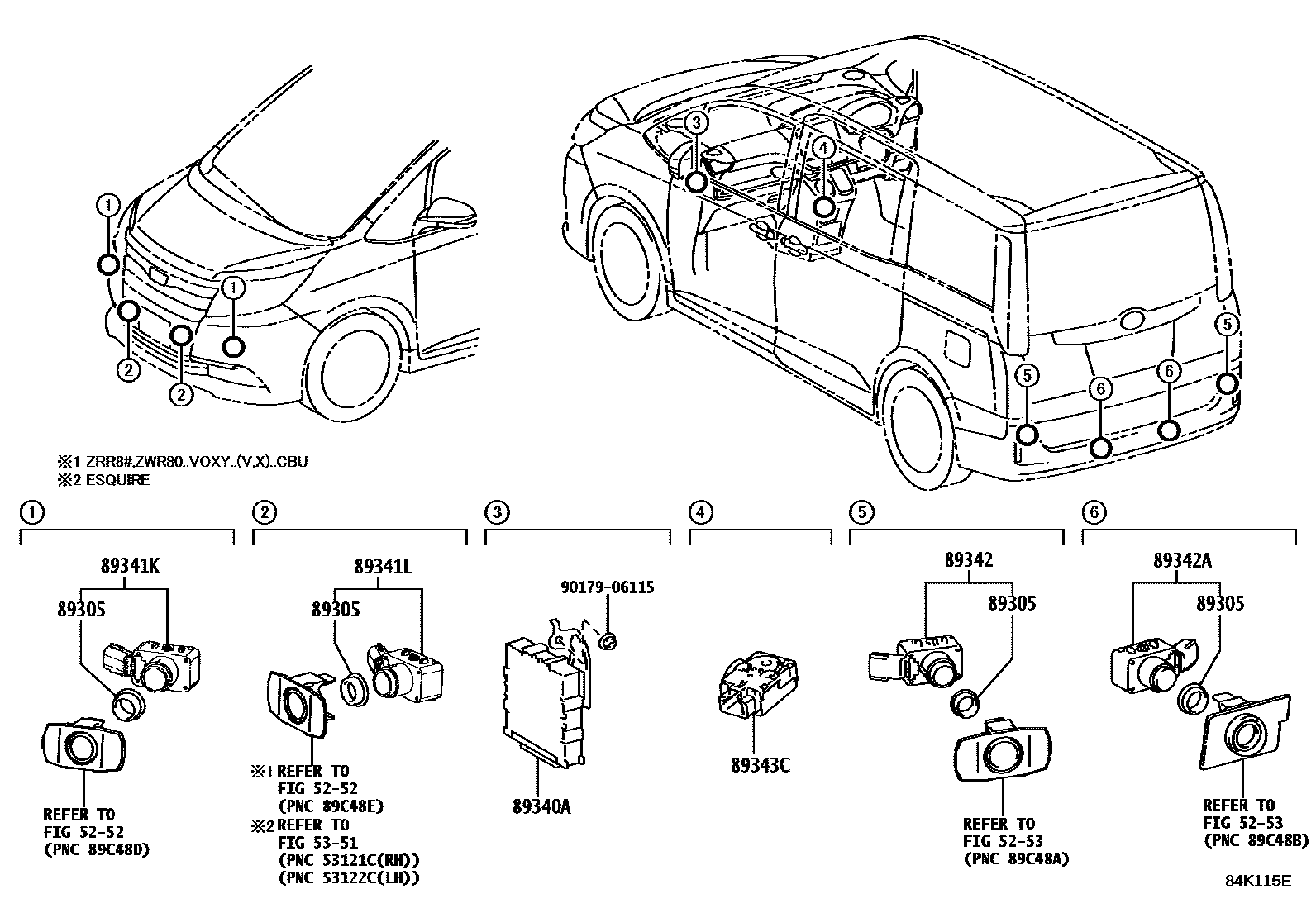

CLEARANCE & BACK SONAR

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

5253REAR BUMPER & BUMPER STAY

→ Go to FIG 52-53

5351RADIATOR GRILLE

→ Go to FIG 53-51

89305CUSHION SET, ULTRASONIC SENSOR

main89305-47010iZRR8#,ZWR80..(G,GI,SI,V,ZS)..CBU; ZRR8#,ZWR80..(X,XI)..CBU201901

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-28260iZRR8#,ZWR80..(G,SI,V,ZS)..CBU; ZRR8#,ZWR80..X..CBU201901-202112

main89340-28270iZRR8#,ZWR80..GI201901-202112

main89340-28280iZRR80..08S..(SI,ZS)..IV5201911-202005

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-33220-29×2iZRR8#,ZWR80..GI201901

SPARKLING BLACK PEARL CS.,220

main89341-33220-40×2iZRR8#,ZWR80..V; ZRR8#,ZWR80..VOXY..X..CBU201901-202004

main89341-33220-A5×2iZRR8#,ZWR80..(G,GI,SI,V)..CBU; ZRR8#,ZWR80..(X,XI)..CBU201901

main89341-33220-A7×2iZRR8#,ZWR80..(G,SI)..CBU; ZRR8#,ZWR80..NOAH..X..CBU201901

main89341-33220-B0×2iZRR8#,ZWR80..(X,XI)..CBU; ZRR8#,ZWR80..G,GI,V201901

main89341-33220-C1×2iZRR8#,ZWR80..(GI,SI,V)..CBU201901

BLACKISH AGEHA GF.,221

main89341-33220-C5×2iZRR8#,ZWR80..(G,GI,SI,V)..CBU; ZRR8#,ZWR80..(X,XI)..CBU201901

main89341-33220-D4×2iZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI)..CBU; ZRR8#,ZWR80..(G,GI,SI)..CBU201901

main89341-33220-E7×2iZRR8#,ZWR80..(X,XI)..CBU; ZRR8#,ZWR80..G,GI,V201901

main89341-33220-K1×2iZRR8#,ZWR80..ZS..CBU201901

main89341-33220-C4×2iZRR80..07S..SI..CBU; ZRR80..07S..ZS..CBU201901-202201

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-33220-40×2iZRR8#,ZWR80..V; ZRR8#,ZWR80..VOXY..X..CBU201901-202004

main89341-33220-A5×2iZRR8#,ZWR80..V; ZRR8#,ZWR80..VOXY..X..CBU201901-202004

main89341-33220-B0×2iZRR8#,ZWR80..V; ZRR8#,ZWR80..VOXY..X..CBU201901-202004

main89341-33220-C1×2iZRR8#,ZWR80..V; ZRR8#,ZWR80..VOXY..X..CBU201901-202004

main89341-33220-C4×2iZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI)..CBU; ZRR8#,ZWR80..(G,GI,SI,ZS)..CBU201901

main89341-33220-C5×2iZRR8#,ZWR80..V; ZRR8#,ZWR80..VOXY..X..CBU201901-202004

main89341-33220-E7×2iZRR8#,ZWR80..V; ZRR8#,ZWR80..VOXY..X..CBU201901-202004

main89341-33220-A7×2iZRR80..07S..SI..CBU201901-202201

main89341-33220-D4×2iZRR80..07S..(SI,ZS)..CBU201901-202201

main89341-33220-K1×2iZRR80..07S..ZS..CBU201901-202201

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-33220-29×2iZRR8#,ZWR80..GI201901

SPARKLING BLACK PEARL CS.,220

main89341-33220-40×2iZRR8#,ZWR80..(V,ZS)..CBU201901

INAZUMA SPARKING BLACK GF,224

main89341-33220-A5×2iZRR8#,ZWR80..(G,GI,SI,V,ZS)..CBU; ZRR8#,ZWR80..(X,XI)..CBU201901

main89341-33220-A7×2iZRR8#,ZWR80..(G,SI)..CBU; ZRR8#,ZWR80..NOAH..X..CBU201901

main89341-33220-B0×2iZRR8#,ZWR80..(X,XI)..CBU; ZRR8#,ZWR80..G,GI,V201901

main89341-33220-C1×2iZRR8#,ZWR80..(GI,SI,V,ZS)..CBU201901

BLACKISH AGEHA GF.,221

main89341-33220-C5×2iZRR8#,ZWR80..(G,GI,SI,V,ZS)..CBU; ZRR8#,ZWR80..(X,XI)..CBU201901

main89341-33220-D4×2iZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI)..CBU; ZRR8#,ZWR80..(G,GI,SI,ZS)..CBU201901

main89341-33220-E7×2iZRR8#,ZWR80..(X,XI)..CBU; ZRR8#,ZWR80..G,GI,V201901

main89341-33220-C4×2iZRR80..07S..(SI,ZS)..CBU201901-202201

main89341-33220-K1×2iZRR80..07S..ZS..CBU201901-202201

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-33220-29×2iZRR8#,ZWR80..GI201901

SPARKLING BLACK PEARL CS.,220

main89341-33220-40×2iZRR8#,ZWR80..(V,ZS)..CBU201901

INAZUMA SPARKING BLACK GF,224

main89341-33220-A5×2iZRR8#,ZWR80..(G,GI,SI,V,ZS)..CBU; ZRR8#,ZWR80..(X,XI)..CBU201901

main89341-33220-A7×2iZRR8#,ZWR80..(G,SI)..CBU; ZRR8#,ZWR80..NOAH..X..CBU201901

main89341-33220-B0×2iZRR8#,ZWR80..(X,XI)..CBU; ZRR8#,ZWR80..G,GI,V201901

main89341-33220-C1×2iZRR8#,ZWR80..(GI,SI,V,ZS)..CBU201901

BLACKISH AGEHA GF.,221

main89341-33220-C5×2iZRR8#,ZWR80..(G,GI,SI,V,ZS)..CBU; ZRR8#,ZWR80..(X,XI)..CBU201901

main89341-33220-D4×2iZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI)..CBU; ZRR8#,ZWR80..(G,GI,SI,ZS)..CBU201901

main89341-33220-E7×2iZRR8#,ZWR80..(X,XI)..CBU; ZRR8#,ZWR80..G,GI,V201901

main89341-33220-C4×2iZRR80..07S..(SI,ZS)..CBU201901-202201

main89341-33220-K1×2iZRR80..07S..ZS..CBU201901-202201

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010iZRR8#,ZWR80..(G,GI,SI,V,ZS)..CBU; ZRR8#,ZWR80..(X,XI)..CBU201901

9017906115

main90179-06115

11 parts on this diagram · 1 diagram in section
