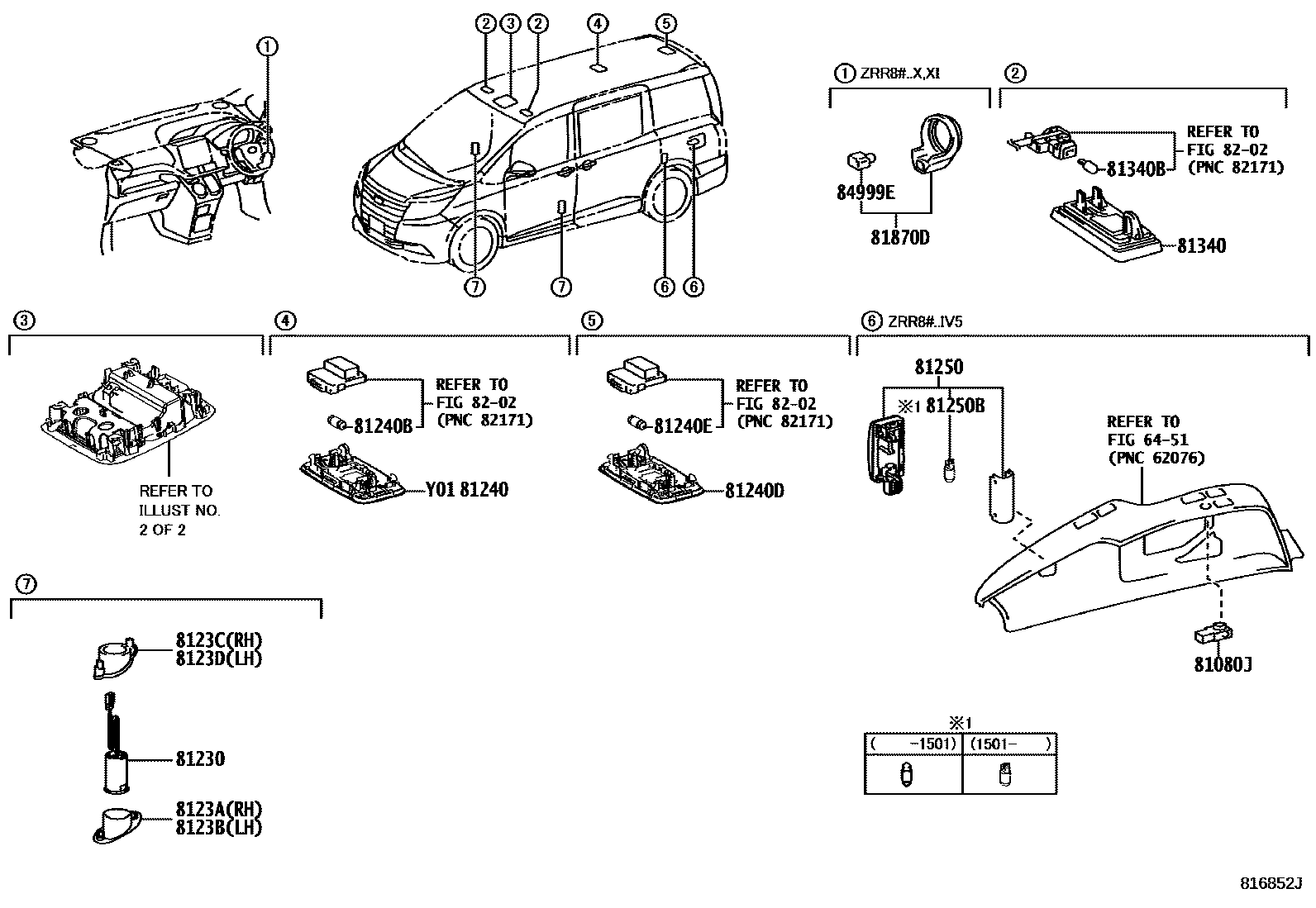

INTERIOR LAMP
6451INSIDE TRIM BOARD
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81230LAMP ASSY, COURTESY
8123ABEZEL, COURTESY LAMP, OUTER RH
8123BBEZEL, COURTESY LAMP, OUTER LH
8123CSPACER, COURTESY LAMP, INNER RH
8123DSPACER, COURTESY LAMP, INNER LH
81240LAMP ASSY, ROOM, NO.1
main81240-35020-B0iZRR8#,ZWR80..07S..GI; ZRR8#..08S..GI; ZRR80..07S..SI..CBU; ZRR80..07S..ZS..CBU; ZRR85..SI;ZRR80..08S..SI..CBU; ZWR80..SI201601-201706
LT.GRAY,TRIM20; LT.GRAY,TRIM20,21,23,27; LT.GRAY,TRIM20,23,27; LT.GRAY,TRIM20,27; LT.GRAY,TRIM22,23; LT.GRAY,TRIM22,23,27
main81240-35020-C0iZRR80..07S..SI..CBU; ZRR80..GI;ZRR85,ZWR80..GI,SI;ZRR80..08S..SI..CBU201601-201610
BLACK,TRIM23,24; BLACK,TRIM24
main81240-35020-C1iZRR80..07S..SI..CBU; ZRR80..07S..ZS..CBU; ZRR80..GI;ZRR85,ZWR80..GI,SI;ZRR80..08S..SI..CBU201610-201706
BLACK,TRIM23; BLACK,TRIM23,24; BLACK,TRIM24
LT.GRAY,TRIM2#
main81240-42020-C0iZRR8#,ZWR80..(G,SI)..CBU; ZRR8#,ZWR80..07S..GI; ZRR80..SI..IV5;ZRR8#,ZWR80..GI,ZS202005
81240BBULB, ROOM LAMP, NO.1
81240DLAMP ASSY, ROOM, NO.2
main81240-35020-B0iZRR8#,ZWR80..07S..GI; ZRR8#..08S..GI; ZRR80..07S..SI..CBU; ZRR80..07S..ZS..CBU; ZRR85..SI;ZRR80..08S..SI..CBU; ZWR80..SI201601-201706
LT.GRAY,TRIM20; LT.GRAY,TRIM20,21,23,27; LT.GRAY,TRIM20,23,27; LT.GRAY,TRIM20,27; LT.GRAY,TRIM22,23; LT.GRAY,TRIM22,23,27
main81240-35020-C0iZRR80..07S..SI..CBU; ZRR80..07S..ZS..CBU; ZRR80..GI;ZRR85,ZWR80..GI,SI;ZRR80..08S..SI..CBU201601-201610
BLACK,TRIM23; BLACK,TRIM23,24; BLACK,TRIM24
main81240-35020-C1iZRR80..07S..SI..CBU; ZRR80..07S..ZS..CBU; ZRR80..GI;ZRR85,ZWR80..GI,SI;ZRR80..08S..SI..CBU201610-201706
BLACK,TRIM23; BLACK,TRIM23,24; BLACK,TRIM24
LT.GRAY,TRIM2#
main81240-42020-C0iZRR8#,ZWR80..(G,SI)..CBU; ZRR8#,ZWR80..07S..GI; ZRR80..SI..IV5;ZRR8#,ZWR80..GI,ZS202005
81240EBULB, ROOM LAMP, NO.2
81250LAMP ASSY, ROOM, NO.2
81250BBULB, ROOM LAMP, NO.2
81340LAMP ASSY, VANITY
81340BBULB (FOR VANITY LAMP)
81870DLAMP ASSY, KEY CYLINDER
8202WIRING & CLAMP
84999EBULB, KEY CYLINDER LAMP
18 parts on this diagram · 4 diagrams in section
