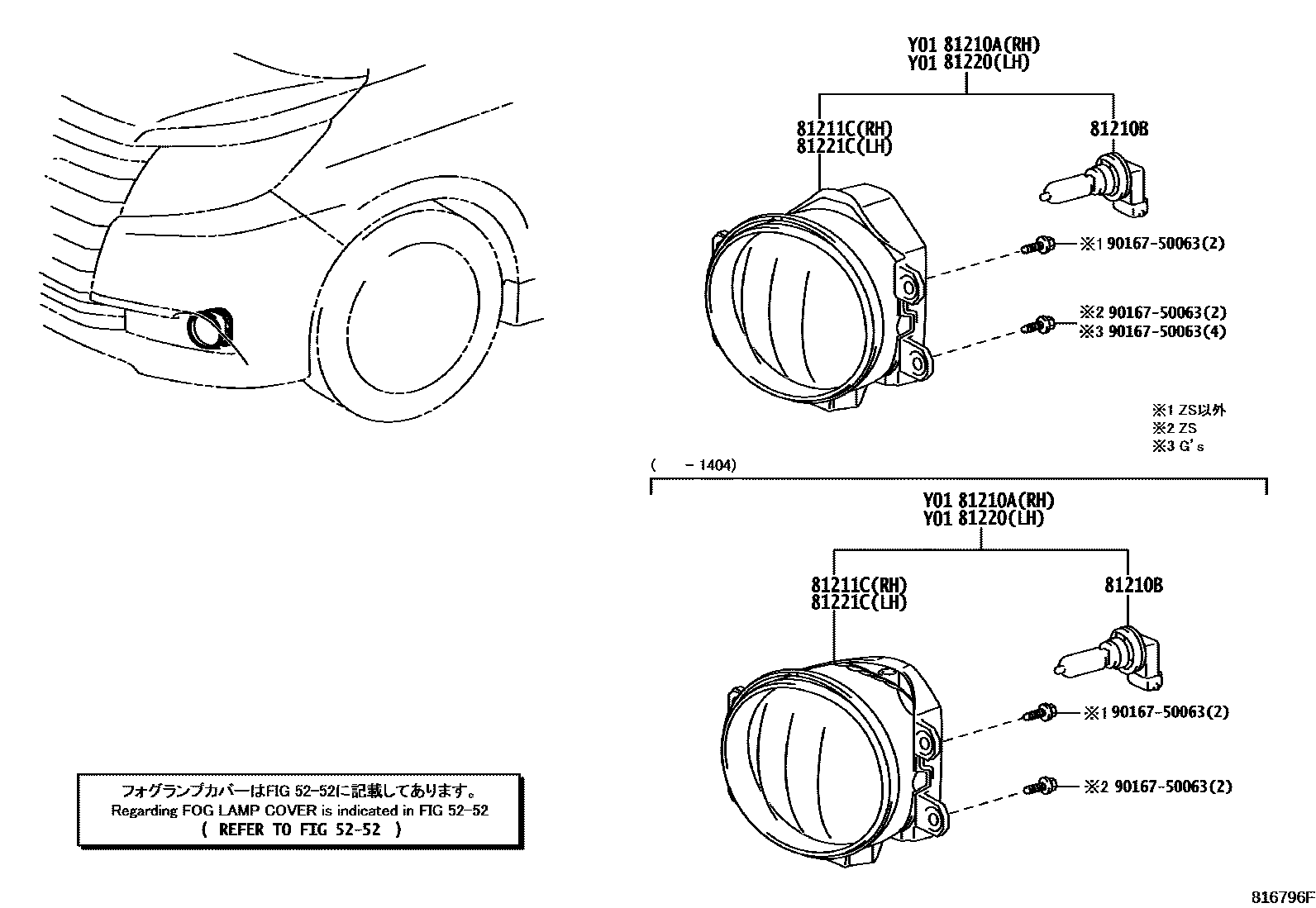

FOG LAMP

0001 1��������� 0002 1LED����

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

81210ALAMP ASSY, FOG, RH

main81210-12230iZRR8#,ZWR80..G,SI,V,ZS; ZRR8#,ZWR80..X201401-201404

main81210-47010iZRR8#,ZWR80..G,GI,SI,V,XI,ZS; ZRR8#,ZWR80..X201404-201706

main81210-48051iZRR8#,ZWR80..G,GI,SI,ZS; ZRR8#,ZWR80..NOAH..X201706

main81210-48050iZRR8#,ZWR80..ZS..CBU201607-201608

81210BBULB, FOG LAMP

main90981-13090×2iZRR8#,ZWR80..G,GI,SI,V,XI,ZS; ZRR8#,ZWR80..X201401-201706

main00000-00000iZRR8#,ZWR80..ZS..CBU201607-201706

81211CLAMP UNIT, FOG LAMP, RH

main81211-12230iZRR8#,ZWR80..G,SI,V,ZS; ZRR8#,ZWR80..X201401-201404

main81211-47010iZRR8#,ZWR80..G,GI,SI,V,XI,ZS; ZRR8#,ZWR80..X201404-201706

main00000-00000iZRR8#,ZWR80..ZS..CBU201607-201706

81220LAMP ASSY, FOG, LH

main81220-12230iZRR8#,ZWR80..G,SI,V,ZS; ZRR8#,ZWR80..X201401-201404

main81220-47010iZRR8#,ZWR80..G,GI,SI,V,XI,ZS; ZRR8#,ZWR80..X201404-201706

main81220-48051iZRR8#,ZWR80..V,XI; ZRR8#,ZWR80..VOXY..X201706-202004

main81220-48050iZRR8#,ZWR80..GI201601-201608

81221CLAMP UNIT, FOG LAMP, LH

main81221-12230iZRR8#,ZWR80..G,SI,V,ZS; ZRR8#,ZWR80..X201401-201404

main81221-47010iZRR8#,ZWR80..G,GI,SI,V,XI,ZS; ZRR8#,ZWR80..X201404-201706

main00000-00000iZRR8#,ZWR80..ZS..CBU201607-201706

9016750063

main90167-50063

7 parts on this diagram · 2 diagrams in section
