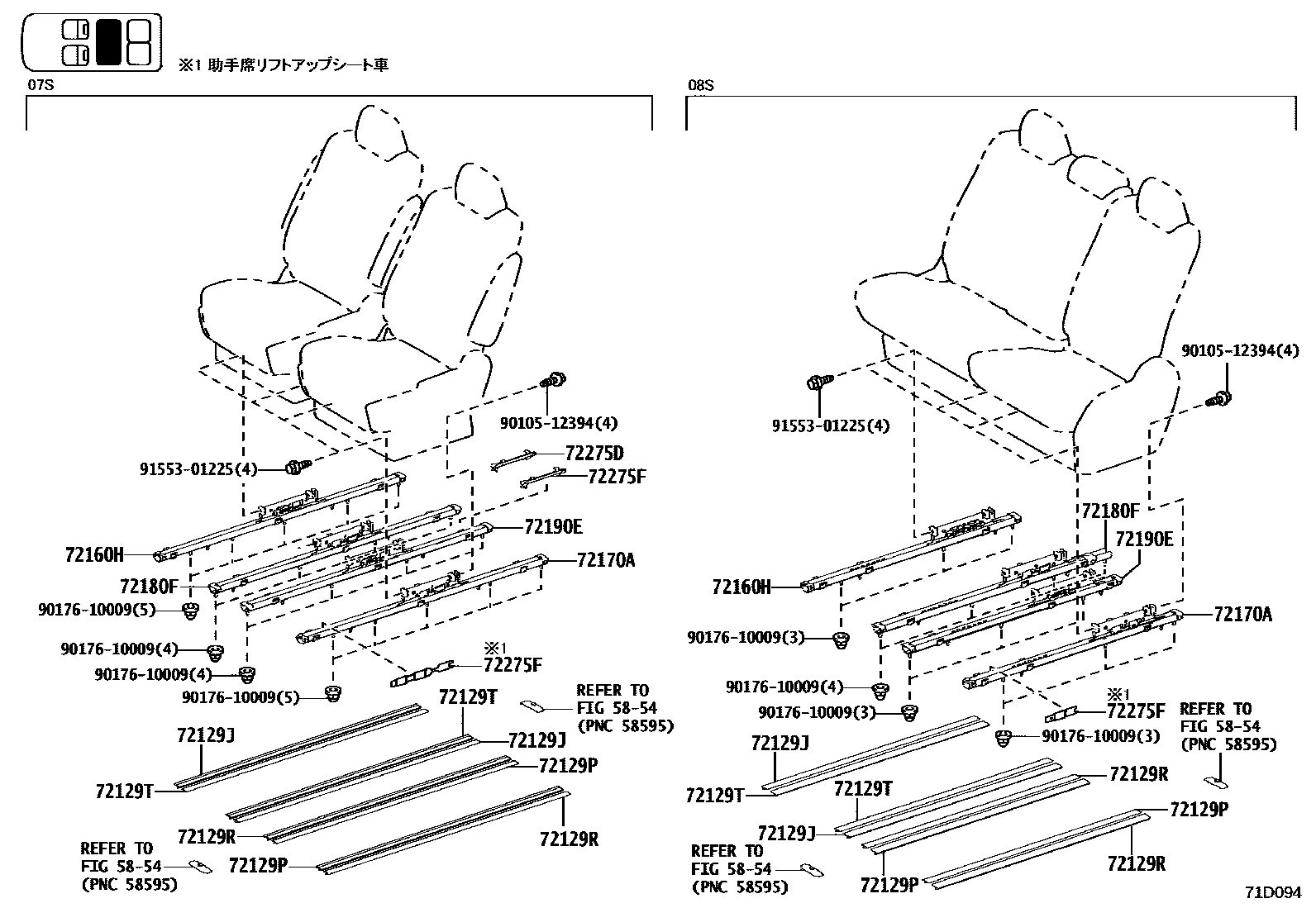

SEAT RAIL

0001 1 0002 1 0003 1�������� 0004 1�����������������

5854FLOOR MAT & SILENCER PAD

→ Go to FIG 58-54

72129JPROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1

main72129-28270-C0×2iZRR8#..(ESQIR,NOAH)..08S..(G,X,XI)..CBU; ZRR8#..VOXY..08S..X..CBU;ZRR8#..08S..(GI,SI,V,ZS)..CBU201401-201706

BLACK,TRIM0#,2#; BLACK,TRIM2#

main72129-28430-C0×2iZRR8#,ZWR80..07S..(G,SI)..CBU; ZRR8#,ZWR80..07S..(GI,V,X,XI,ZS)..CBU; ZRR8#..07S..(X,XI)..CBU; ZRR8#..07S..SI..CBU; ZRR8#..07S..ZS..CBU201706

72129PPROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.1

main72129-28270-C0×2iZRR8#..08S..(G,SI)..CBU; ZRR8#..08S..(GI,V,X,XI,ZS)..CBU202002

BLACK,TRIM0#,2#; BLACK,TRIM2#

main72129-28390-C0×2iZRR8#,ZWR80..(ESQIR,NOAH)..07S..(G,X,XI)..CBU; ZRR8#,ZWR80..VOXY..07S..X..CBU;ZRR8#,ZWR80..07S..(GI,SI,V,ZS)..CBU201401-201706

BLACK,TRIM0#,2#; BLACK,TRIM2#

main72129-28420-C0×2iZRR8#..(ESQIR,NOAH)..08S..(G,X,XI)..CBU; ZRR8#..(ESQIR,NOAH)..08S..(X,XI)..IV5; ZRR8#..VOXY..08S..X..CBU;ZRR8#..08S..(GI,SI,V,ZS)..CBU; ZRR80..08S..(SI,ZS)..IV5;ZRR8#..VOXY..08S..X..IV5201401-201706

BLACK,TRIM0#,2#; BLACK,TRIM2#

main72129-28430-C0×2iZRR8#,ZWR80..07S..(G,SI)..CBU; ZRR8#,ZWR80..07S..(GI,V,X,XI,ZS)..CBU; ZRR8#..07S..(SI,ZS)..CBU; ZRR8#..07S..(X,XI)..CBU; ZRR8#..07S..SI..CBU; ZRR8#..07S..ZS..CBU202002

72129RPROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.1

main72129-28270-C0×4iZRR8#..(ESQIR,NOAH)..08S..(G,X,XI)..CBU; ZRR8#..(ESQIR,NOAH)..08S..(X,XI)..IV5; ZRR8#..VOXY..08S..X..CBU;ZRR8#..08S..(GI,SI,V,ZS)..CBU; ZRR80..08S..(SI,ZS)..IV5;ZRR8#..VOXY..08S..X..IV5201401-201706

BLACK,TRIM0#,2#; BLACK,TRIM2#

main72129-28430-C0×2iZRR8#,ZWR80..(ESQIR,NOAH)..07S..(G,X,XI)..CBU; ZRR8#,ZWR80..VOXY..07S..X..CBU;ZRR8#,ZWR80..07S..(GI,SI,V,ZS)..CBU201401-201706

BLACK,TRIM0#,2#; BLACK,TRIM2#

72129TPROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.1

main72129-28270-C0×2iZRR8#..08S..(G,SI)..CBU; ZRR8#..08S..(GI,V,X,XI,ZS)..CBU202002

BLACK,TRIM0#,2#; BLACK,TRIM2#

main72129-28390-C0×2iZRR8#,ZWR80..07S..(GI,V,X,XI,ZS)..CBU201706-202001

BLACK,TRIM2#

main72129-28420-C0×2iZRR8#..(ESQIR,NOAH)..08S..(G,X,XI)..CBU; ZRR8#..VOXY..08S..X..CBU;ZRR8#..08S..(GI,SI,V,ZS)..CBU201401-201706

BLACK,TRIM0#,2#; BLACK,TRIM2#

main72129-28430-C0×2iZRR8#,ZWR80..07S..(G,SI)..CBU; ZRR8#,ZWR80..07S..(GI,V,X,XI,ZS)..CBU; ZRR8#..07S..(SI,ZS)..CBU; ZRR8#..07S..(X,XI)..CBU; ZRR8#..07S..SI..CBU; ZRR8#..07S..ZS..CBU202002

72160HTRACK ASSY, REAR SEAT, OUTER RH

main72160-28670iZRR8#..08S..CBU201706

main72160-28690iZRR8#,ZWR80..07S..CBU201401-201706

main72160-28730iZRR8#..08S..IV5201706

main72160-28740iZRR8#..07S..IV5201401-201706

72170ATRACK ASSY, REAR SEAT, OUTER LH

main72170-28660iZRR8#..08S..CBU201401-201706

main72170-28670iZRR8#,ZWR80..07S..CBU201401-201706

main72170-28700iZRR8#..08S..IV5201401-201706

main72170-28690iZRR8#..08S..(X,XI)..CBU; ZRR80..08S..(X,XI)..CBU201709

main72170-28710iZRR80..08S..(SI,ZS)..IV5201911-202005

main72170-28720iZRR85..07S..XI..IV5201410-201706

main72170-28730iZRR8#..07S..(SI,ZS)..CBU; ZRR8#..07S..(X,XI)..CBU201710

72180FTRACK ASSY, REAR SEAT, INNER RH

main72180-28110iZRR8#,ZWR80..07S..CBU201401-201706

main72180-28150iZRR8#..08S..CBU201706

main72180-28160iZRR8#..08S..IV5201401-201706

main72180-28170iZRR8#..07S..IV5201401-201706

72190ETRACK ASSY, REAR SEAT, INNER LH

main72190-28100iZRR8#,ZWR80..07S..CBU; ZRR8#..07S..(SI,ZS)..CBU; ZRR8#..07S..(X,XI)..CBU201706

main72190-28130iZRR8#..08S201401-201706

main72190-28120iZRR8#..08S..(X,XI)..CBU; ZRR80..08S..(X,XI)..CBU201709

main72190-28140iZRR80..08S..(SI,ZS)..IV5201911-202005

main72190-28150iZRR85..07S..IV5201706

main72190-28160iZRR8#..07S..(SI,ZS)..CBU; ZRR8#..07S..(X,XI)..CBU201710

72275DSTOPPER, REAR SEAT TRACK SLIDE, RH NO.1

main72275-28080iZRR8#,ZWR80..07S..CBU201401-201706

72275FSTOPPER, REAR SEAT TRACK SLIDE, LH NO.1

main72275-28080iZRR8#,ZWR80..07S..CBU201401-201706

main72275-28090iZRR80..08S..(SI,X,XI,ZS)..CBU201404-201706

main72275-28100iZRR85..07S..(SI,X,XI,ZS)..CBU201404-201706

9010512394

main90105-12394

9017610009

main90176-10009

9155301225

main91553-01225

14 parts on this diagram · 4 diagrams in section
