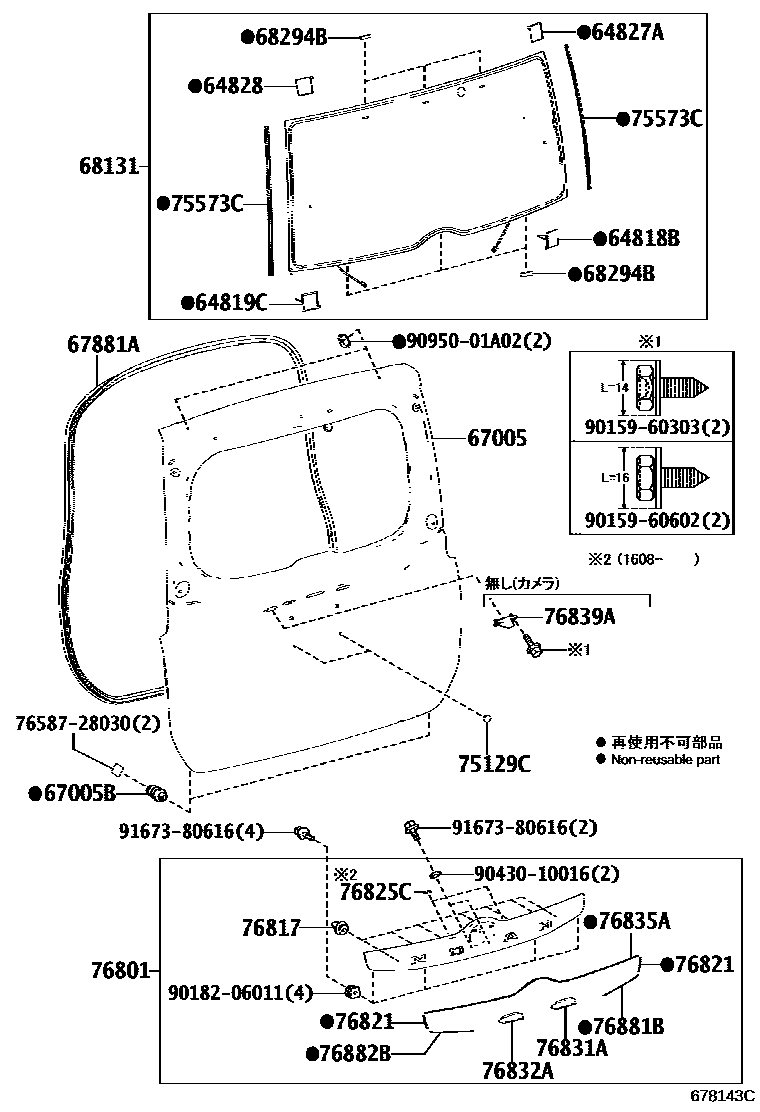

BACK DOOR PANEL & GLASS

0001 1������� 0002 1������� 0003 1������� 0004 1������� 0005 1������� 0006 1������� 0007 1������

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-28040iZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS201401-202004

64819CSPACER, BACK DOOR GLASS, NO.2

main64819-28040iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201401-202004

64827ACLIP, BACK WINDOW GLASS, RH

main64827-28060iZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS201401-202004

64828CLIP, BACK WINDOW GLASS, LH

main64828-28050iZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS201401-202004

67005PANEL SUB-ASSY, BACK DOOR

main67005-28A40iZRR8#,ZWR80..NOAH..(G,X)201401-201701

main67005-28A41iZRR8#,ZWR80..NOAH..(G,X)201701-201706

main67005-28C50iZRR8#,ZWR80..SI201401-201701

main67005-28C51iZRR8#,ZWR80..SI201701-201706

main67005-28D30iZRR8#,ZWR80..(ESQIR,VOXY)..(GI,V,X,XI)201401-201701

main67005-28D31iZRR8#,ZWR80..(ESQIR,VOXY)..(GI,V,X,XI)201701-201706

main67005-28D40iZRR8#,ZWR80..ZS201401-201701

main67005-28D41iZRR8#,ZWR80..ZS201701-201706

main67005-28E40iZRR8#,ZWR80..GI201706-202004

main67005-28E50iZRR8#,ZWR80..NOAH..(G,X)201706-202004

main67005-28E60iZRR8#,ZWR80..SI,ZS201706

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-10042iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201401-202004

67881AWEATHERSTRIP, BACK DOOR

main67881-28140iZRR8#,ZWR80..CBU201401-202004

main67881-28160iZRR80..07S..(SI,ZS)..IV5;ZRR8#..NOAH..07S..X..IV5201706-202004

main67881-28160iZRR8#..IV5201401-201706

68131GLASS, BACK DOOR

main68105-28700iZRR8#,ZWR80201401-202004

68294BDAM, BACK DOOR GLASS ADHESIVE

main68294-26030iZRR8#,ZWR80201401-202004

75129CCUSHION, REAR LICENCE PLATE

main75129-26010iZRR8#,ZWR80201401-202004

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-28050iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201401-202004

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-28480iZRR8#,ZWR80..NOAH201401-201706

main76801-28490iZRR8#,ZWR80..VOXY201401-201706

main76801-28500iZRR8#,ZWR80..ESQIR201410-201706

main76801-28610iZRR8#,ZWR80..NOAH201706-201711

main76801-28611iZRR8#,ZWR80..NOAH201712

main76801-28620iZRR8#,ZWR80..VOXY..(V,X)201706-202004

main76801-28630iZRR8#,ZWR80..GI201706-202004

76817CLIP, BACK DOOR OUTSIDE GARNISH

main90467-09206iZRR8#,ZWR80..GI201401-202004

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76821-28020iZRR8#,ZWR80..NOAH201401-201706

main76821-28030iZRR8#,ZWR80..VOXY201401-201706

main76821-28040iZRR8#,ZWR80..ESQIR201410-201706

main76821-28050iZRR8#,ZWR80..NOAH201706-201711

main76821-28070iZRR8#,ZWR80..GI201706-202004

main76821-28090iZRR8#,ZWR80..VOXY..(V,X)201706-202004

main76822-28030iZRR8#,ZWR80..VOXY201401-201706

main76822-28040iZRR8#,ZWR80..ESQIR201410-201706

main76822-28050iZRR8#,ZWR80..NOAH201706-201712

main76822-28070iZRR8#,ZWR80..XI201706-202004

main76822-28090iZRR8#,ZWR80..ZS201706-202004

main76825-28130iZRR8#,ZWR80..NOAH201712

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76835-28060iZRR8#,ZWR80..GI201706-202004

main76835-28070iZRR8#,ZWR80..NOAH201706

main76835-28080iZRR8#,ZWR80..VOXY..(V,X)201706-202004

76825CPROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-28110iZRR8#,ZWR80201608-201706

main76837-28010iZRR8#,ZWR80..XI201706-202004

76831ACOVER, BACK DOOR FINISH PANEL, RH

main76831-28010iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201401-202004

76832ACOVER, BACK DOOR FINISH PANEL, LH

main76832-28010iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201401-202004

76835APROTECTOR, BACK DOOR FINISH PANEL, NO.1

main76835-28010iZRR8#,ZWR80..NOAH201401-201606

main76835-28020iZRR8#,ZWR80..ESQIR,VOXY201401-201606

main76835-28050iZRR8#,ZWR80201606-201706

main76835-28090iZRR8#,ZWR80..XI201706-202004

76839ACOVER, BACK DOOR GARNISH

main76839-28060iZRR8#201401-201706

main76839-28060iZRR8#,ZWR80201706

76881BPROTECTOR, BACK DOOR LOWER MOULDING, RH

main76881-28010iZRR8#,ZWR80..NOAH201401-201706

main76881-28020iZRR8#,ZWR80..VOXY201401-201706

main76881-28030iZRR8#,ZWR80..ESQIR201410-201706

main76881-28040iZRR8#,ZWR80..GI201706-202004

76882BPROTECTOR, BACK DOOR LOWER MOULDING, LH

main76881-28010iZRR8#,ZWR80..NOAH201401-201706

main76881-28020iZRR8#,ZWR80..VOXY201401-201706

main76881-28030iZRR8#,ZWR80..ESQIR201410-201706

main76882-28040iZRR8#,ZWR80..GI201706-202004

7658728030PROTECTOR, CENTER PILLAR OUTER GERNISH

main76587-28030

9015960303

main90159-60303

9015960602

main90159-60602

9018206011

main90182-06011

9043010016

main90430-10016

9095001A02

main90950-01A02

9167380616

main91673-80616

29 parts on this diagram · 7 diagrams in section
