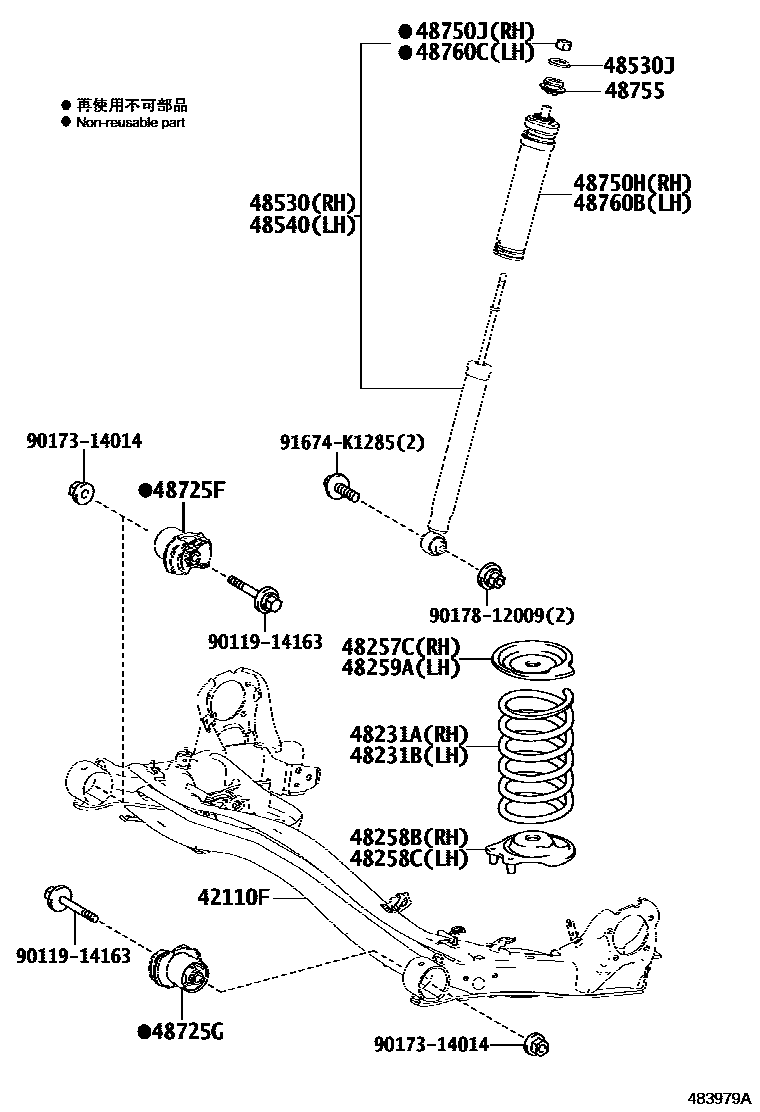

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42110FBEAM ASSY, REAR AXLE

main42101-28470iZRR8#,ZWR80201401-202004

48231ASPRING, COIL, REAR RH

main48231-28B60iZWR80..NOAH..X;ZWR80..G,GI,SI,ZS201706-202004

main48231-28B60iZWR80201402-201706

main48231-28C31iZRR80..CBU201401-202004

main48231-28C70iZRR85..CBU201401-202004

48231BSPRING, COIL, REAR LH

main48231-28B60iZWR80..NOAH..X;ZWR80..G,GI,SI,ZS201706-202004

main48231-28B60iZWR80201402-201706

main48231-28C31iZRR80..CBU201401-202004

main48231-28C70iZRR85..CBU201401-202004

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-28070iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)..CBU201401-202004

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-28050iZRR8#,ZWR80..CBU201401-202004

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-28050iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)..CBU201401-202004

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-28070iZRR8#,ZWR80..CBU201401-202004

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-80784iZRR80..(G,GI,V,X,XI)..CBU201401-201706

main48531-80785iZRR80..(SI,ZS)..CBU201401-201706

main48531-80786iZRR85..(G,GI,V,X,XI)..CBU201401-201706

main48531-80787iZRR85..SI,ZS201401-201706

main48531-80788iZWR80201402-201601

main48531-80789iZRR80..(X,XI)..IV5201401-201706

main48531-80790iZRR80..(SI,ZS)..IV5201401-201706

main48531-80791iZRR85..IV5201401-201706

main48531-80805iZWR80..SI,ZS201601-201706

main48531-80806iZWR80..G,GI,V,X,XI201601-201706

main48531-80808iZRR80,ZWR80..(ESQIR,VOXY)..(V,X,XI)..CBU201706-202004

main48531-80809iZRR80..(SI,ZS)..CBU201706

main48531-80811iZRR85..(ESQIR,VOXY)..(V,X,XI)..CBU201706-202004

main48531-80812iZRR85..SI,ZS201706

main48531-80814iZWR80..SI,ZS201706

main48531-80815iZRR80..NOAH..X..IV5201706-202004

main48531-80816iZRR80..(SI,ZS)..IV5201706

main48531-80817iZRR85..NOAH..IV5201706-202004

48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)

main90948-02192iZRR8#,ZWR80201401-202004

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80784iZRR80..(G,GI,V,X,XI)..CBU201401-201706

main48531-80785iZRR80..(SI,ZS)..CBU201401-201706

main48531-80786iZRR85..(G,GI,V,X,XI)..CBU201401-201706

main48531-80787iZRR85..SI,ZS201401-201706

main48531-80788iZWR80201402-201601

main48531-80789iZRR80..(X,XI)..IV5201401-201706

main48531-80790iZRR80..(SI,ZS)..IV5201401-201706

main48531-80791iZRR85..IV5201401-201706

main48531-80805iZWR80..SI,ZS201601-201706

main48531-80806iZWR80..G,GI,V,X,XI201601-201706

main48531-80808iZRR80,ZWR80..(ESQIR,VOXY)..(V,X,XI)..CBU201706-202004

main48531-80809iZRR80..(SI,ZS)..CBU201706

main48531-80811iZRR85..(ESQIR,VOXY)..(V,X,XI)..CBU201706-202004

main48531-80812iZRR85..SI,ZS201706

main48531-80814iZWR80..SI,ZS201706

main48531-80815iZRR80..(ESQIR,VOXY)..(X,XI)..IV5201706-202004

main48531-80816iZRR80..(SI,ZS)..IV5201706

main48531-80817iZRR85..NOAH..IV5201706-202004

48725FBUSH, REAR AXLE CARRIER, RH

main48725-28080iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201401-202004

48725GBUSH, REAR AXLE CARRIER, LH

main48725-28080iZRR8#,ZWR80201401-202004

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-28020iZRR8#,ZWR80..CBU201401-201511

main48750-28021iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)..CBU201511-202004

main48750-28030iZRR8#..IV5201401-201511

main48750-28031iZRR8#..IV5201511-202004

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90177-12002iZRR8#,ZWR80201401-202004

48755SUPPORT, REAR SUSPENSION

main48755-28020iZRR8#,ZWR80201401-201510

main90905-40019iZRR8#,ZWR80201511-202004

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-28020iZRR8#,ZWR80..CBU201401-201511

main48750-28021iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)..CBU201511-202004

main48750-28030iZRR8#..IV5201401-201511

main48750-28031iZRR8#..(ESQIR,VOXY)..(X,XI)..IV5201511-202004

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90177-12002iZRR8#,ZWR80201401-202004

9011914163

main90119-14163

9017314014

main90173-14014

9017812009

main90178-12009

91674K1285

main91674-K1285

21 parts on this diagram · 2 diagrams in section
