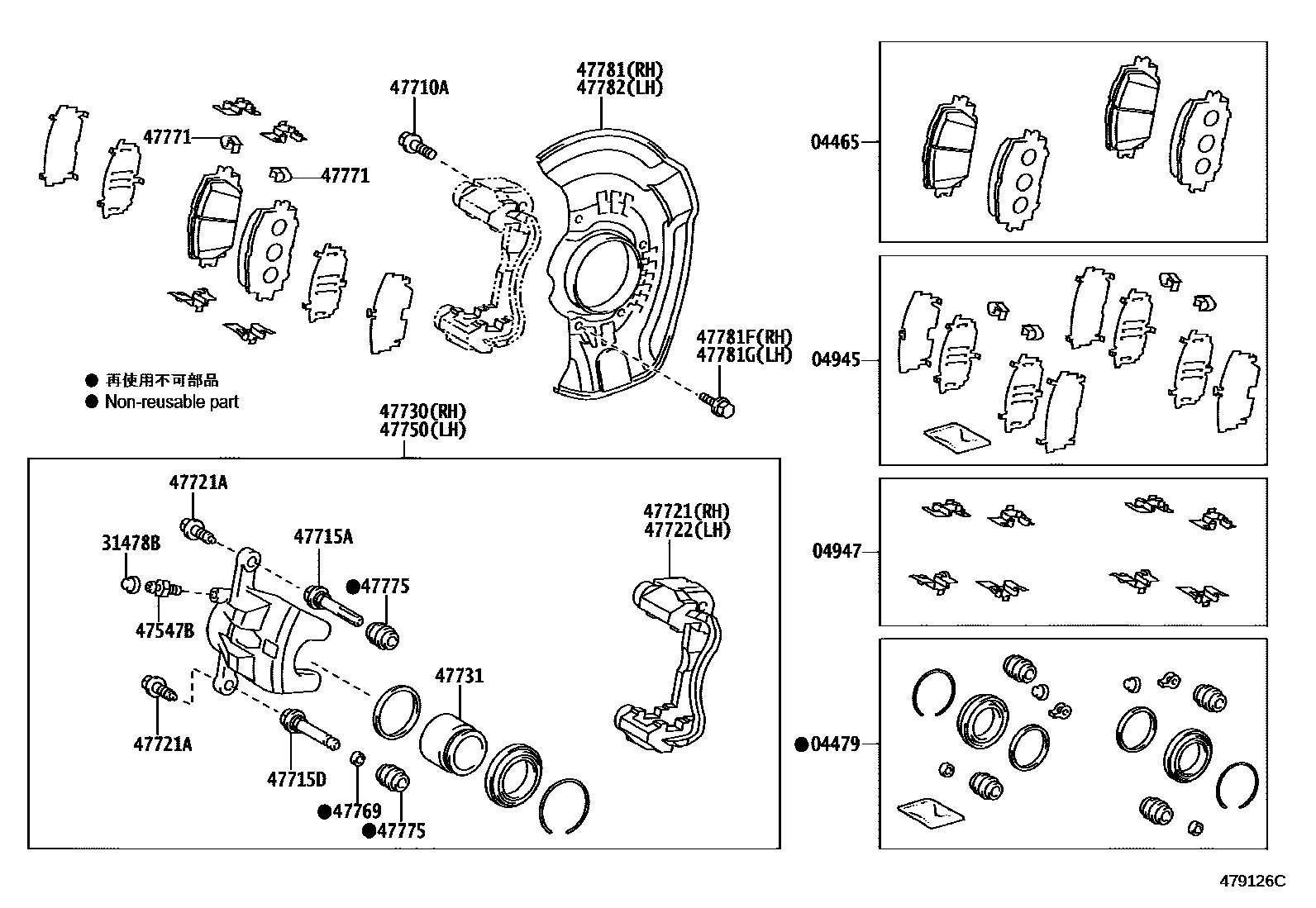

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-42200iZRR8#,ZWR80201401-202004

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-33100iZRR8#,ZWR80201401-202004

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-12111iZRR8#,ZWR80201401-202004

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050iZRR8#,ZWR80201401-202004

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iZRR8#,ZWR80201401-202004

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iZRR8#,ZWR80201401-202004

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iZRR8#,ZWR80201401-202004

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190iZRR8#,ZWR80201401-202004

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10iZRR8#,ZWR80201401-202004

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-28580iZRR8#,ZWR80201401-202004

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iZRR8#,ZWR80201401-202004

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-28580iZRR8#,ZWR80201401-202004

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-28580iZRR8#,ZWR80201401-202004

47731PISTON, FRONT DISC BRAKE

main47731-12A70iZRR8#,ZWR80201401-202004

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-28580iZRR8#,ZWR80201401-202004

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iZRR8#,ZWR80201401-202004

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-52191iZRR8#,ZWR80201401-202004

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-52190iZRR8#,ZWR80201401-202004

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-28240iZRR8#,ZWR80201401-202004

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90119-06227iZRR8#,ZWR80201401-202004

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90119-06227iZRR8#,ZWR80201401-202004

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-28230iZRR8#,ZWR80201401-202004

22 parts on this diagram · 1 diagram in section
