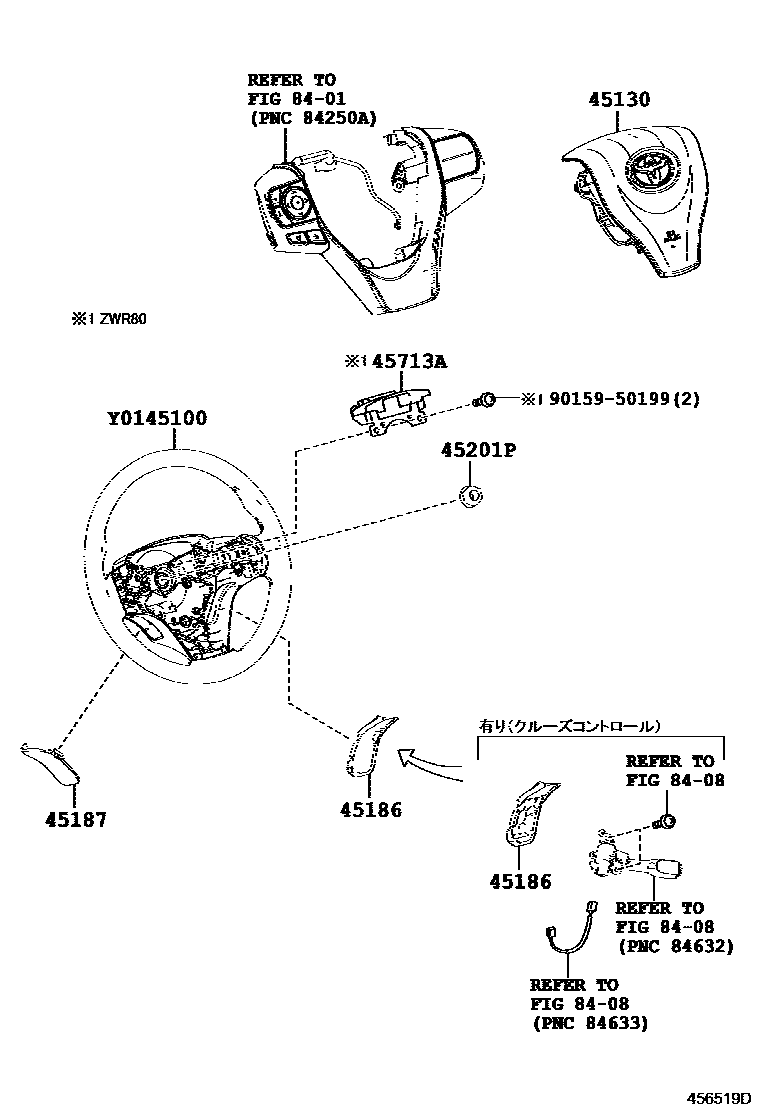

STEERING WHEEL

0001 1 0002 1GR-SPORT

45100WHEEL ASSY, STEERING

main45100-28490-C0iZRR8#,ZWR80..X201706

main45100-28510-C0iZRR8#,ZWR80..G,XI; ZRR8#,ZWR80..SI,V,ZS201401-201706

main45100-48540-C1iZRR8#,ZWR80..GI201706-201906

main45100-48541-C1iZRR8#,ZWR80..GI201907

main45100-28530-C0iZRR8#,ZWR80..07S..GI201706-201901

main45100-28530-C1iZRR8#,ZWR80..07S..GI201901-201909

main45100-28532-C0iZRR8#,ZWR80..07S..GI201909-202006

main45100-28532-C1iZRR8#,ZWR80..07S..GI201909-202005

main45100-48650-C3iZRR80..07S..SI..CBU201709-202010

main45100-WY090-C0iZRR80..07S..(SI,ZS)..CBU201605-201706

45130BUTTON ASSY, HORN

main45130-28601-C0iZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI); ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS201401-201604

BLACK,TRIM0#,2#; BLACK,TRIM2#

main45130-28602-C0iZRR8#,ZWR80..NOAH..(G,X); ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,XI,ZS201605-201706

BLACK,TRIM0#,2#; BLACK,TRIM2#

main45130-48300-C0iZRR80..07S..(SI,ZS)..CBU201709-201909

main45130-48301-C0iZRR80..07S..ZS..CBU201910

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-48040-C0iZRR8#,ZWR80..(G,SI)..CBU; ZRR80..SI..IV5;ZRR8#,ZWR80..GI,V,X,XI,ZS201706

BLACK,TRIM0#,2#; BLACK,TRIM2#

main45186-48050-C0iZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI); ZRR8#,ZWR80..SI,ZS;ZRR8#,ZWR80..VOXY..X201401-201706

BLACK,TRIM0#,2#; BLACK,TRIM2#

main45186-48070-C0iZRR80..07S..SI..CBU202010

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-48040-C0iZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI); ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS201401-201706

BLACK,TRIM0#,2#; BLACK,TRIM2#

main45187-48060-C0iZRR80..07S..SI..CBU201709-202010

45201PNUT, STEERING WHEEL SET

main90179-12071iZRR8#,ZWR80201401-201706

45713ADAMPER, STEERING SHAKE

main45713-28070iZWR80..NOAH..X;ZWR80..G,GI,SI,ZS201706

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9015950199

main90159-50199

9 parts on this diagram · 2 diagrams in section
