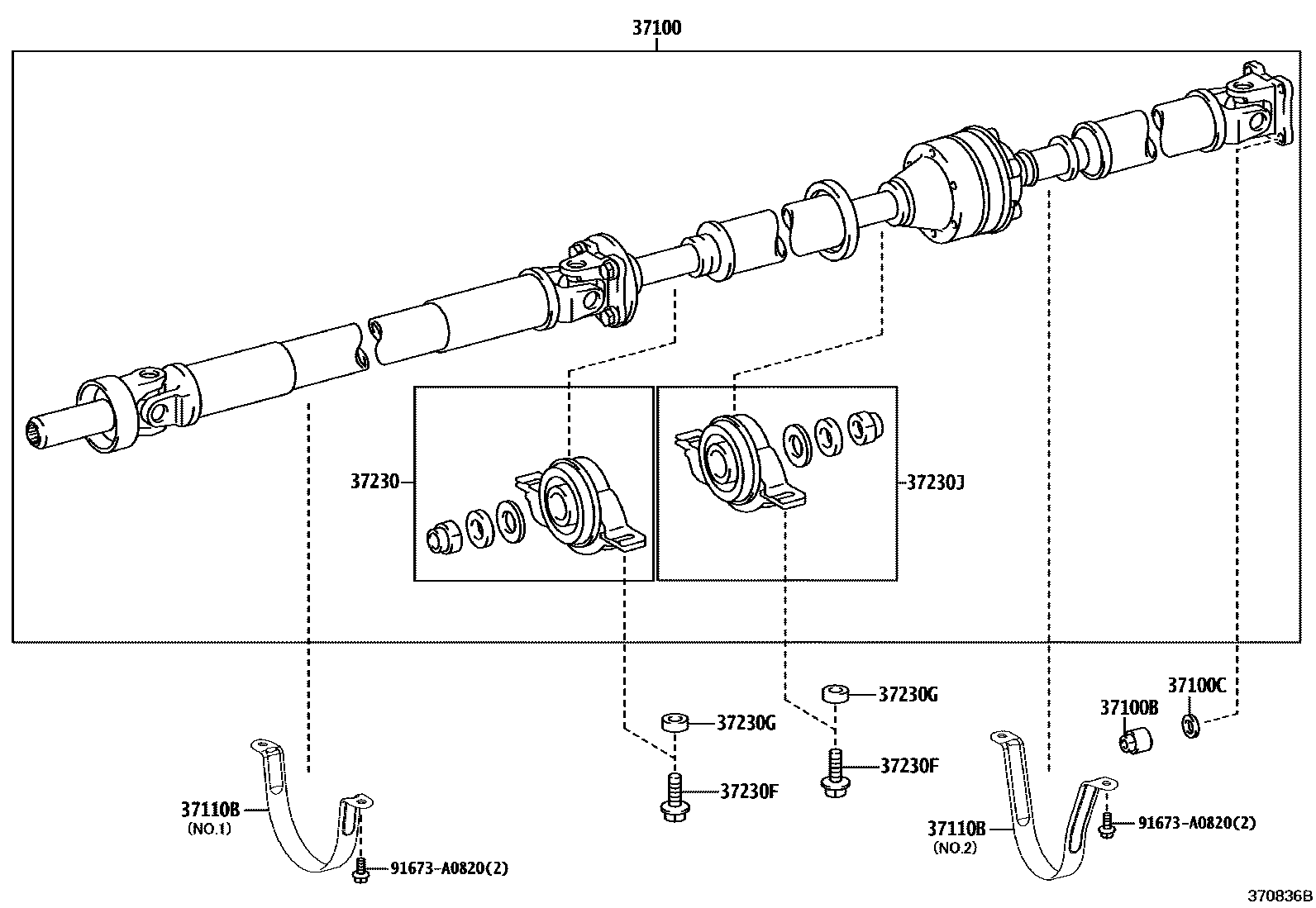

PROPELLER SHAFT & UNIVERSAL JOINT

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-28150iZRR85201401-201706

37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90179-08268×4iZRR85201401-201706

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90560-10102×4iZRR85..(ESQIR,VOXY)..(V,X,XI)201706-202004

37110BGUARD, PROPELLER SHAFT

main51569-28010iZRR85201401-201706

main51569-28020iZRR85201401-201706

37230BEARING ASSY, CENTER SUPPORT, NO.1

main37230-49015iZRR85..(ESQIR,VOXY)..(V,X,XI)201706-202004

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10444×4iZRR85201401-201706

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10081×4iZRR85..(ESQIR,VOXY)..(V,X,XI)201706-202004

main90201-10083×4iZRR85..(ESQIR,VOXY)..(V,X,XI)201706-202004

main90201-10095×4iZRR85201401-201706

37230JBEARING ASSY, CENTER SUPPORT, NO.2

main37230-29015iZRR85..NOAH..X;ZRR85..G,GI,SI,ZS201706

91673A0820

main91673-A0820

9 parts on this diagram · 1 diagram in section
