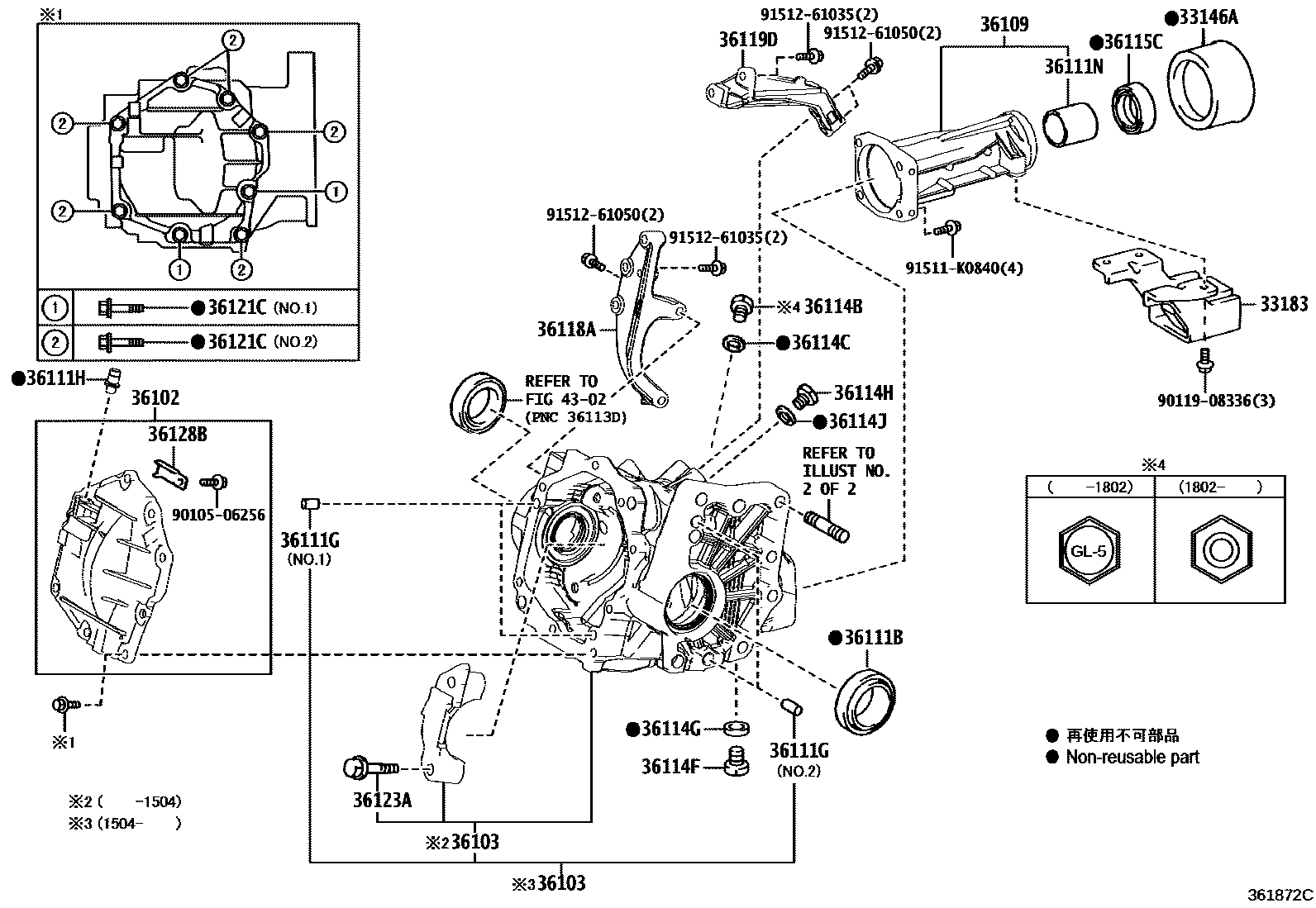

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1

33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST

main33146-30020iZRR85201401-201706

33183DAMPER, TRANSFER DYNAMIC

main33183-21030iZRR85201401-201706

36102COVER SUB-ASSY, TRANSFER CASE

main36102-48030iZRR85..(ESQIR,VOXY)..(V,X,XI)201706-202004

36103CASE SUB-ASSY, TRANSFER

main36103-48010iZRR85201401-201504

main36103-48011iZRR85201504-201706

36109HOUSING SUB-ASSY, TRANSFER EXTENSION

main36109-33010iZRR85201401-201503

main36109-48010iZRR85..NOAH..X;ZRR85..G,GI,SI,ZS201706

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-55002iZRR85..NOAH..X;ZRR85..G,GI,SI,ZS201706

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-08046×2iZRR85..NOAH..X;ZRR85..G,GI,SI,ZS201706

main90250-10017×2iZRR85..NOAH..X;ZRR85..G,GI,SI,ZS201706

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90930-03133iZRR85..(ESQIR,VOXY)..(V,X,XI)201706-202004

36111NBUSH (FOR TRANSFER CASE)

main90999-73105iZRR85..(ESQIR,VOXY)..(V,X,XI)201706-202004

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iZRR85..(ESQIR,VOXY)..(V,X,XI)201802-202004

main90341-18072iZRR85201401-201706

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main12157-10010iZRR85..NOAH..X;ZRR85..G,GI,SI,ZS201706

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18057iZRR85201401-201706

36114GGASKET (FOR TRANSFER DRAIN PLUG)

main12157-10010iZRR85201401-201706

36114HPLUG, NO.2 (FOR TRANSFER CASE)

main90341-18006iZRR85201401-201706

36114JGASKET, NO.2 (FOR TRANSFER CASE)

main12157-10010iZRR85..NOAH..X;ZRR85..G,GI,SI,ZS201706

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-38090iZRR85..(ESQIR,VOXY)..(V,X,XI)201706-202004

36118APLATE, TRANSFER STIFFENER, RH

main36118-28030iZRR85201401-201706

36119DPLATE, TRANSFER STIFFENER, CENTER

main36119-28040iZRR85201401-201706

36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)

main90105-08435×2iZRR85201401-201706

main91511-J0820×6iZRR85201401-201706

36123ABOLT, DIFFERENTIAL BEARING CAP

main41114-16010×2iZRR85201401-201706

36128BDEFLECTOR, BREATHER OIL

main36128-28010iZRR85201401-201706

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

9010506256

main90105-06256

9011908336

main90119-08336

91511K0840

main91511-K0840

9151261035

main91512-61035

9151261050

main91512-61050

27 parts on this diagram · 2 diagrams in section
