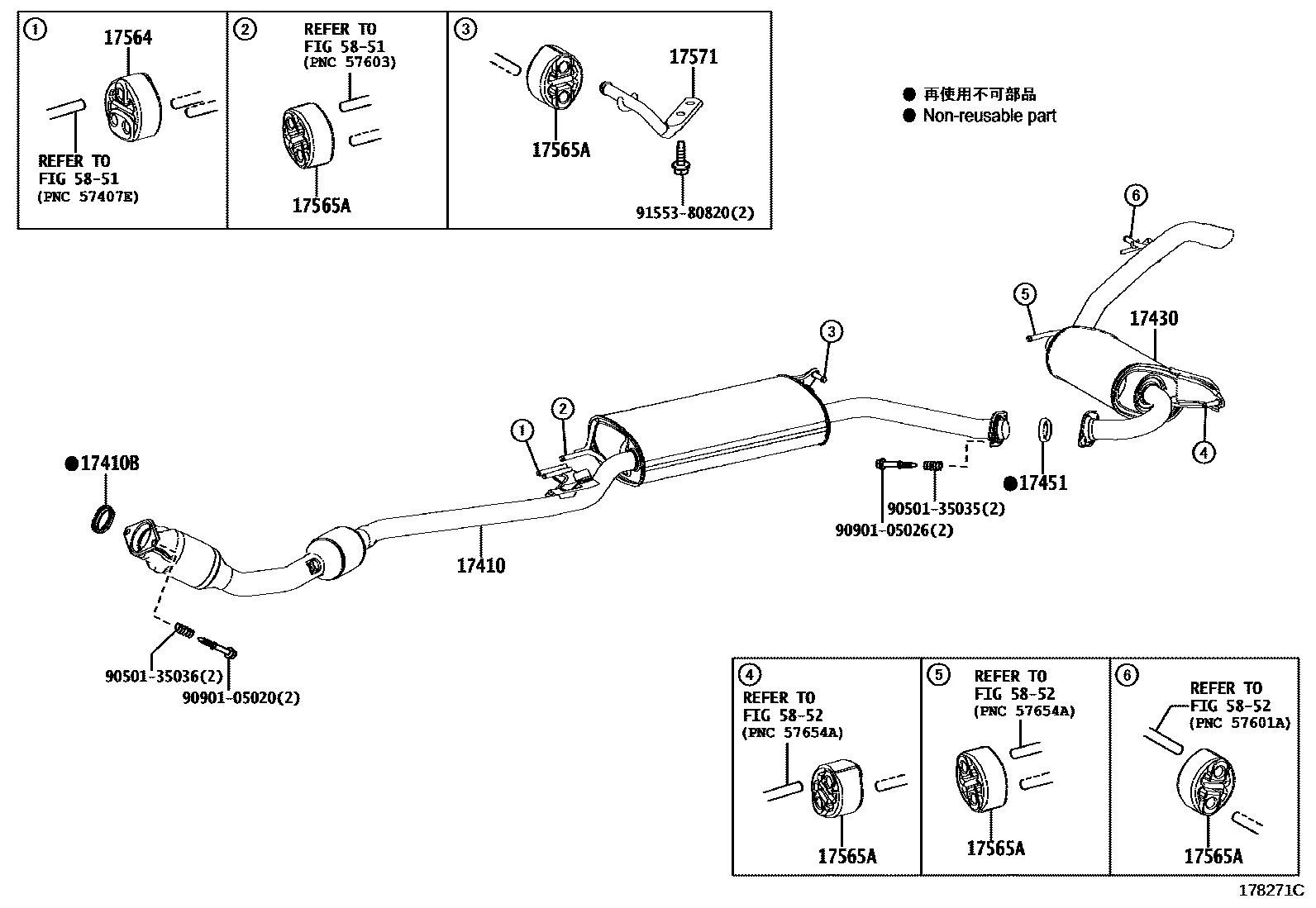

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-37841i3ZRFAE..ZRR80..NOAH..X..CBU;3ZRFAE..ZRR80..(G,GI,SI,ZS)..CBU201706

main17410-37851i3ZRFAE..ZRR85201401-201706

main17410-37861i2ZRFXE..ZWR80..(ESQIR,VOXY)..(V,X,XI)201706-202004

main17410-37870i3ZRFAE..ZRR80..IV5201401-201706

17410BGASKET, EXHAUST PIPE

main17451-28040i2ZRFXE,3ZRFAE..ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201706-202004

17430PIPE ASSY, EXHAUST, TAIL

main17430-37570i3ZRFAE..ZRR80..(SI,ZS)..IV5;3ZRFAE..ZRR8#..NOAH..X..IV5201706

main17430-37581i3ZRFAE..ZRR80..CBU201401-201706

main17430-37591i3ZRFAE..ZRR85..G,GI,SI,ZS;3ZRFAE..ZRR85..NOAH..X..CBU201706

main17430-37601i2ZRFXE..ZWR80201402-201706

main17430-WY110i3ZRFAE..ZRR80..07S..(SI,ZS)..CBU201604-201706

17451GASKET, EXHAUST PIPE

main17451-28032i2ZRFXE,3ZRFAE..ZRR8#,ZWR80..NOAH..X;2ZRFXE,3ZRFAE..ZRR8#,ZWR80..G,GI,SI,ZS201706

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-64180i2ZRFXE,3ZRFAE..ZRR8#,ZWR80201401-201706

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040×5i3ZRFAE..ZRR80..(SI,ZS)..IV5;3ZRFAE..ZRR80..NOAH..X..IV5;2ZRFXE,3ZRFAE..ZRR85,ZWR80..NOAH..X;2ZRFXE,3ZRFAE..ZRR85,ZWR80..G,GI,SI,ZS; 3ZRFAE..ZRR80..NOAH..X..CBU;3ZRFAE..ZRR80..(G,GI,SI,ZS)..CBU201706

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-37091i2ZRFXE,3ZRFAE..ZRR8#,ZWR80201401-201706

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

5852REAR FLOOR PANEL & REAR FLOOR MEMBER

→ Go to FIG 58-52

9050135035

main90501-35035

9050135036

main90501-35036

9090105020

main90901-05020

9090105026

main90901-05026

9155380820

main91553-80820

14 parts on this diagram · 4 diagrams in section
