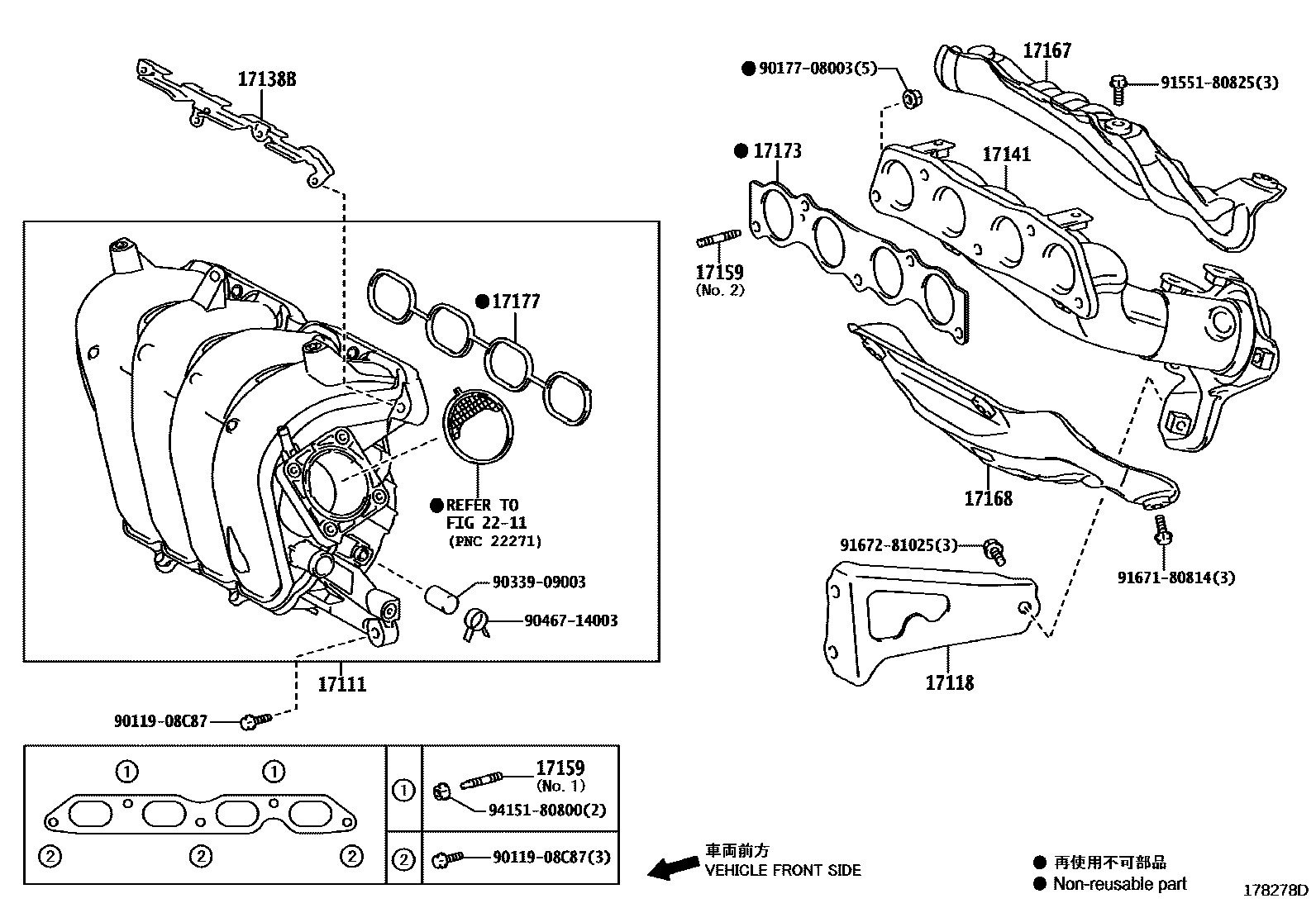

MANIFOLD

0001 1 0002 1 0003 1

17111MANIFOLD, INTAKE

main17120-37031i3ZRFAE..ZRR8#201401-201706

main17120-37054i2ZRFXE..ZWR80201402-201706

17118STAY, MANIFOLD

main17118-37050i3ZRFAE..ZRR80..NOAH..X;3ZRFAE..ZRR80..G,GI,SI,ZS201706

main17118-37060i3ZRFAE..ZRR85201401-201706

main17118-37080i2ZRFXE..ZWR80201402-201706

17138BSTAY, INTAKE MANIFOLD

main17138-37011i3ZRFAE..ZRR8#201401-201706

17141MANIFOLD, EXHAUST

main17141-37090i3ZRFAE..ZRR85201401-201706

main17141-37140i3ZRFAE..ZRR80201401-201706

main17141-37150i2ZRFXE..ZWR80201402-201706

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i2ZRFXE,3ZRFAE..ZRR8#,ZWR80201401-201706

main90126-08052×5i2ZRFXE,3ZRFAE..ZRR8#,ZWR80201401-201706

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-37050i3ZRFAE..ZRR80..(ESQIR,VOXY)..(V,X,XI)201706-202004

main17167-37060i3ZRFAE..ZRR85201401-201706

main17167-37080i2ZRFXE..ZWR80201402-201706

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-37070i3ZRFAE..ZRR80..(ESQIR,VOXY)..(V,X,XI)201706-202004

main17168-37110i2ZRFXE..ZWR80..(ESQIR,VOXY)..(V,X,XI)201706-202004

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-37010i2ZRFXE,3ZRFAE..ZRR8#,ZWR80201401-201706

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-37030i2ZRFXE,3ZRFAE..ZRR8#,ZWR80201401-201706

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

9011908C87

main90119-08C87

9017708003

main90177-08003

9033909003

main90339-09003

9046714003

main90467-14003

9155180825

main91551-80825

9167180814

main91671-80814

9167281025

main91672-81025

9415180800

main94151-80800

18 parts on this diagram · 3 diagrams in section
