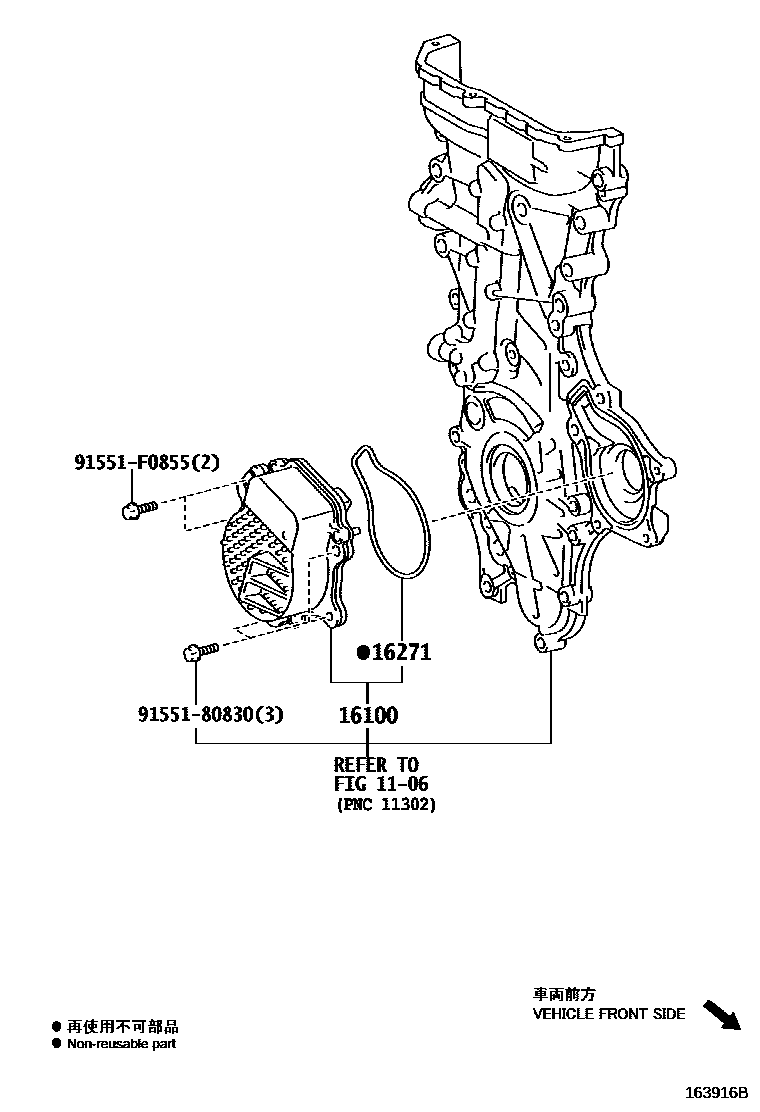

WATER PUMP

0001 1 0002 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

16100PUMP ASSY, ENGINE WATER

main16100-39565i3ZRFAE..ZRR8#201401-201706

main161A0-29015i2ZRFXE..ZWR80201402-201706

16271GASKET, WATER PUMP

main16271-37020i2ZRFXE..ZWR80..(ESQIR,VOXY)..(V,X,XI)201706-202004

main16271-37030i3ZRFAE..ZRR8#..(ESQIR,VOXY)..(V,X,XI)201706-202004

9155180830

main91551-80830

91551F0855

main91551-F0855

5 parts on this diagram · 2 diagrams in section
