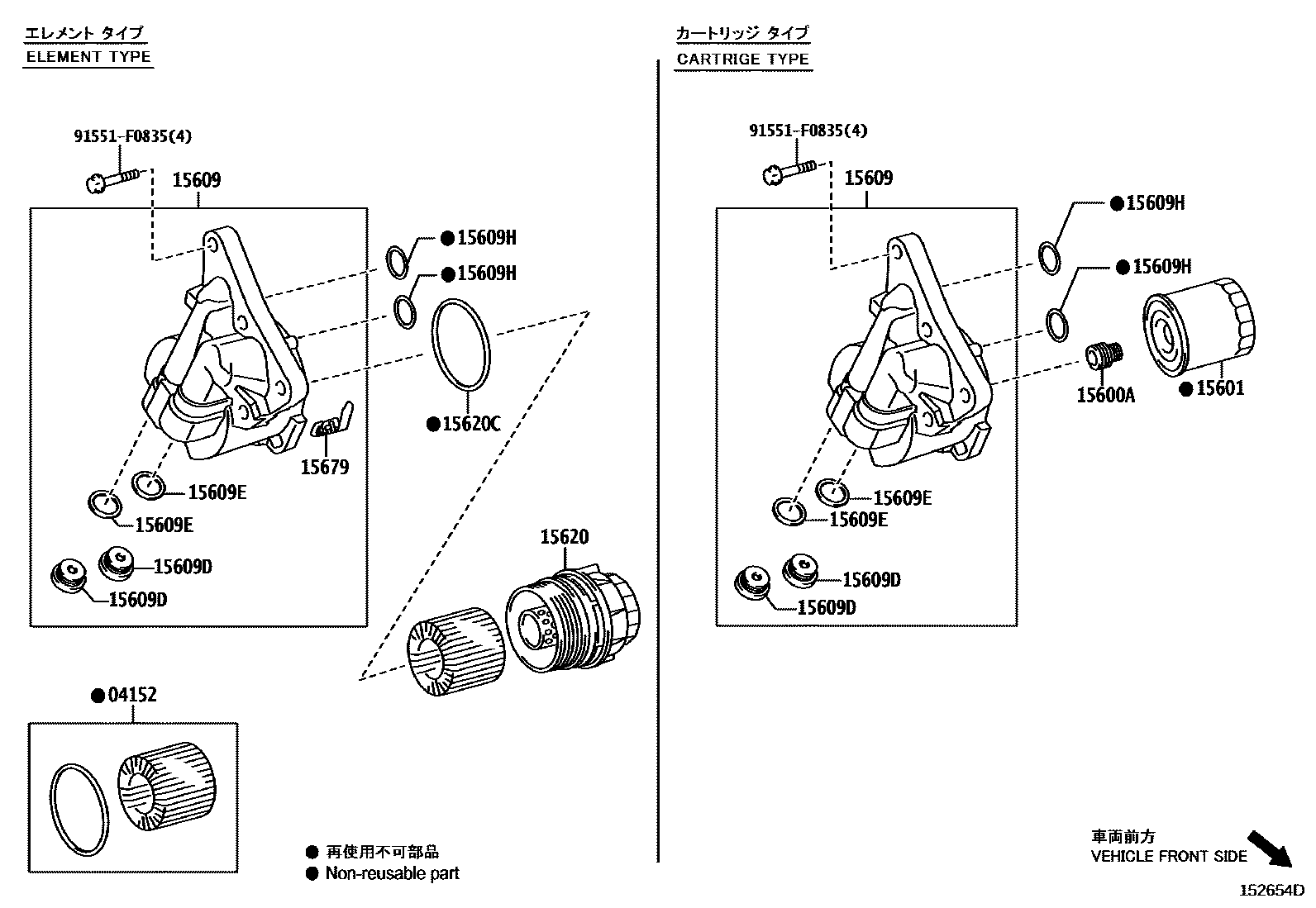

OIL FILTER

04152ELEMENT KIT, OIL FILTER

main04152-37010i3ZRFAE..ZRR8#201401-201610

15600AUNION(FOR OIL FILTER)

main90904-04006i3ZRFAE..ZRR8#201609-201706

15601FILTER SUB-ASSY, OIL

main90915-10003i2ZRFXE..ZWR80..(ESQIR,VOXY)..(V,X,XI)201709-202004

sub90915-10009

15609BRACKET SUB-ASSY, OIL FILTER

main15609-37010i3ZRFAE..ZRR8#201706-201708

main15609-37041i3ZRFAE..ZRR8#201401-201610

main15609-37060i2ZRFXE,3ZRFAE..ZRR8#,ZWR80..NOAH..X;2ZRFXE,3ZRFAE..ZRR8#,ZWR80..G,GI,SI,ZS201709

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-20002×2i2ZRFXE..ZWR80201401-201706

15609EGASKET, W/HEAD STRAIGHT SCREW PLUG

main90430-20004×2i3ZRFAE..ZRR8#201401-201610

main90430-20018×2i2ZRFXE..ZWR80..(ESQIR,VOXY)..(V,X,XI)201709-202004

15609HRING, O(FOR OIL FILTER BRACKET)

main96723-24020×2i2ZRFXE..ZWR80..(ESQIR,VOXY)..(V,X,XI)201709-202004

15620CAP ASSY, OIL FILTER

main15620-37010i3ZRFAE..ZRR8#201401-201610

15620CGASKET(FOR OIL FILTER CAP)

main90301-69011i3ZRFAE..ZRR8#201401-201610

15679CLIP, OIL FILTER BRACKET

main15679-37010i2ZRFXE,3ZRFAE..ZRR8#,ZWR80201401-201408

main15679-37011i3ZRFAE..ZRR8#201409-201610

91551F0835

main91551-F0835

11 parts on this diagram · 1 diagram in section
