ENGINE OVERHAUL GASKET KIT

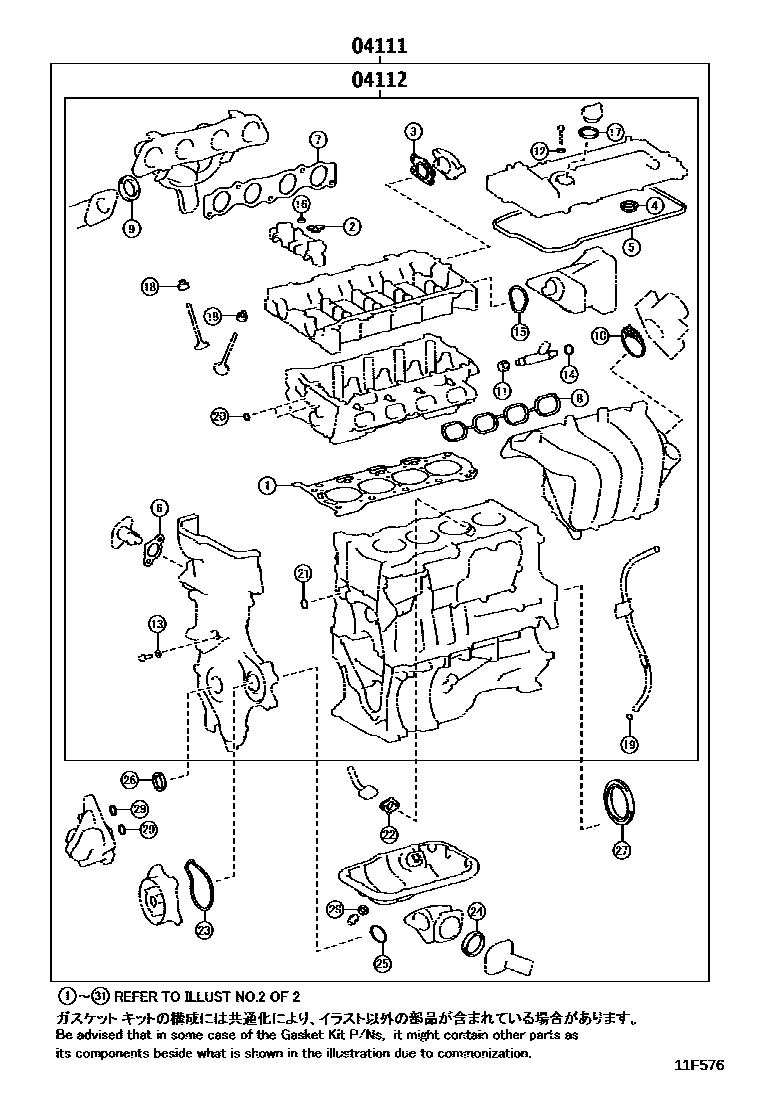

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-37313i201402-201408
sub04111-37314
main04111-37314i201408-201502
sub04111-37315
main04111-37315i201502-202109
sub04111-37316
main04111-37316i202110
main04111-37422i201401-201502
sub04111-37423
main04111-37423i201502-202109
sub04111-37424
main04111-37424i202110
04112GASKET KIT, ENGINE VALVE GRIND
main04112-37223i201401-201502
sub04112-37224
main04112-37224i201502-202109
sub04112-37225
main04112-37225i202110
main04112-37252i201402-201502
sub04112-37253
main04112-37253i201502-202109
sub04112-37254
main04112-37254i202110

2 parts on this diagram · 4 diagrams in section
