HEATING & AIR CONDITIONING - COOLER PIPING

0001 1���� 0002 1����,��(�����) 0003 1�� 0004 1��,��(���)

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

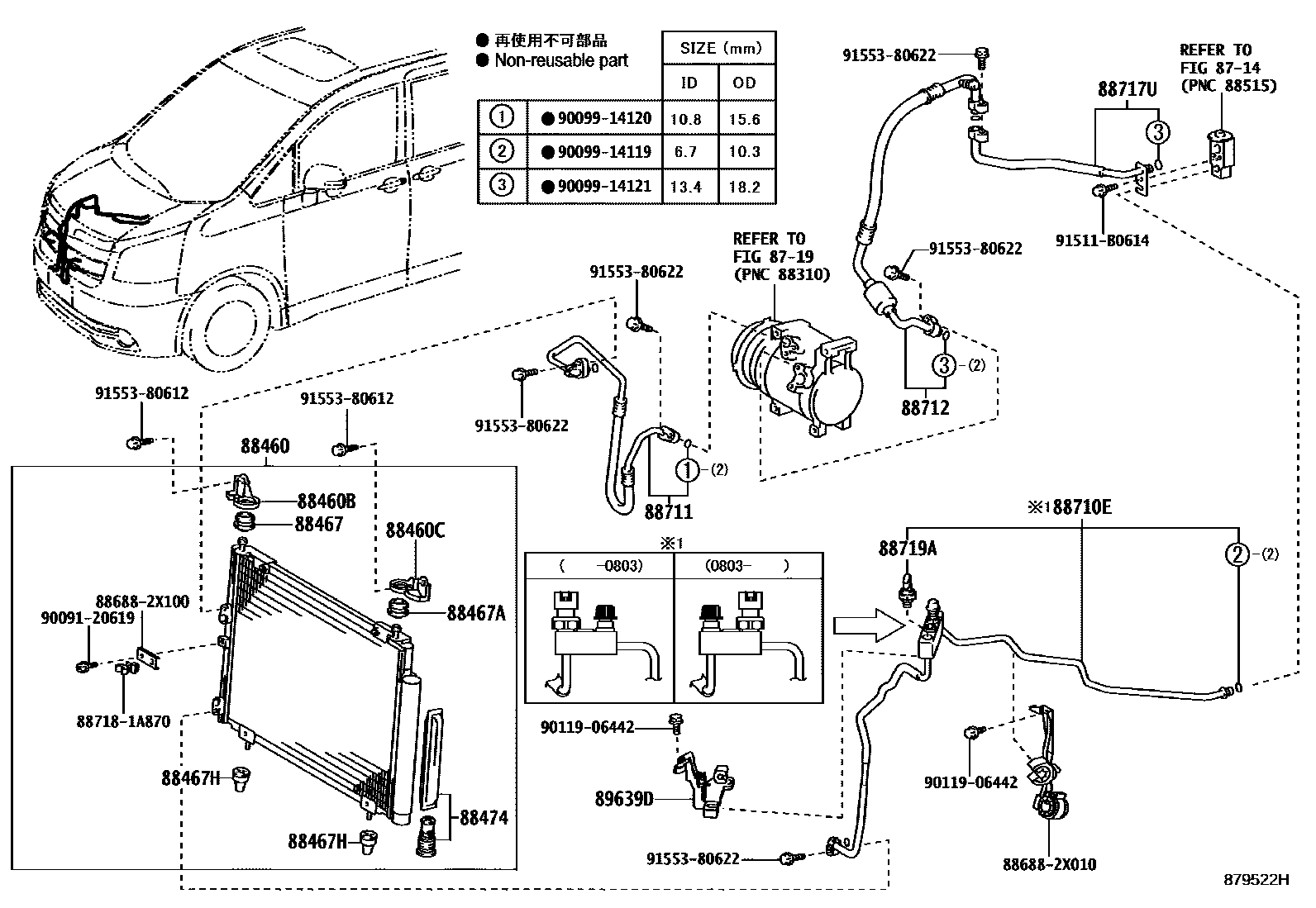

88460CONDENSER ASSY, COOLER

main88460-28630iZRR7#..CBU,IV5200706-201004

main88460-28640iZRR7#..CBU,IV5201004-201401

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-2J800iZRR7#..CBU,IV5200706-201004

main88688-2X130iZRR7#..CBU,IV5201004-201401

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-2J810iZRR7#..CBU,IV5200706-201004

main88688-2X140iZRR7#..CBU,IV5201004-201401

88467CUSHION, COOLER CONDENSER, NO.1

main88467-33030iZRR7#..CBU,IV5200706-201004

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-33030iZRR7#..CBU,IV5200706-201004

88467HCUSHION, CONDENSER BRACKET, NO.1

main88467-20190×2iZRR7#..CBU,IV5200706-201004

88474DRYER, COOLER

main88474-17010iZRR7#..CBU,IV5201004-201401

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-2X280supersedes 88710-2X291iZRR7#..(07S,08S)..(CBU,IV5); ZRR7#..05S200706-200803

main88710-2X281iZRR7#..(07S,08S)..(CBU,IV5); ZRR7#..05S200803-201004

main88710-2X282supersedes 88710-2X292iZRR7#..(07S,08S)..(CBU,IV5); ZRR7#..05S201004-201401

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-2J330iZRR7#..CBU,IV5200706-201004

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-2J010iZRR7#..CBU,IV5201004-201401

88717UTUBE, SUCTION, NO.1

main88717-2X120supersedes 88717-2X130iZRR7#..(07S,08S)..(CBU,IV5); ZRR7#..05S201004-201401

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iZRR7#..CBU,IV5200706-201004

89639DCLAMP, AIRCONDITIONER TUBE

main89639-28190iZRR7#..CBU,IV5201004-201401

886882X010BRACKET, COOLER DIAPHRAGM

main88688-2X010

886882X100BRACKET, COOLER DIAPHRAGM

main88688-2X100

887181A870PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A870

9009120619

main90091-20619

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906442

main90119-06442

91511B0614

main91511-B0614

9155380612

main91553-80612

9155380622

main91553-80622

26 parts on this diagram · 4 diagrams in section
