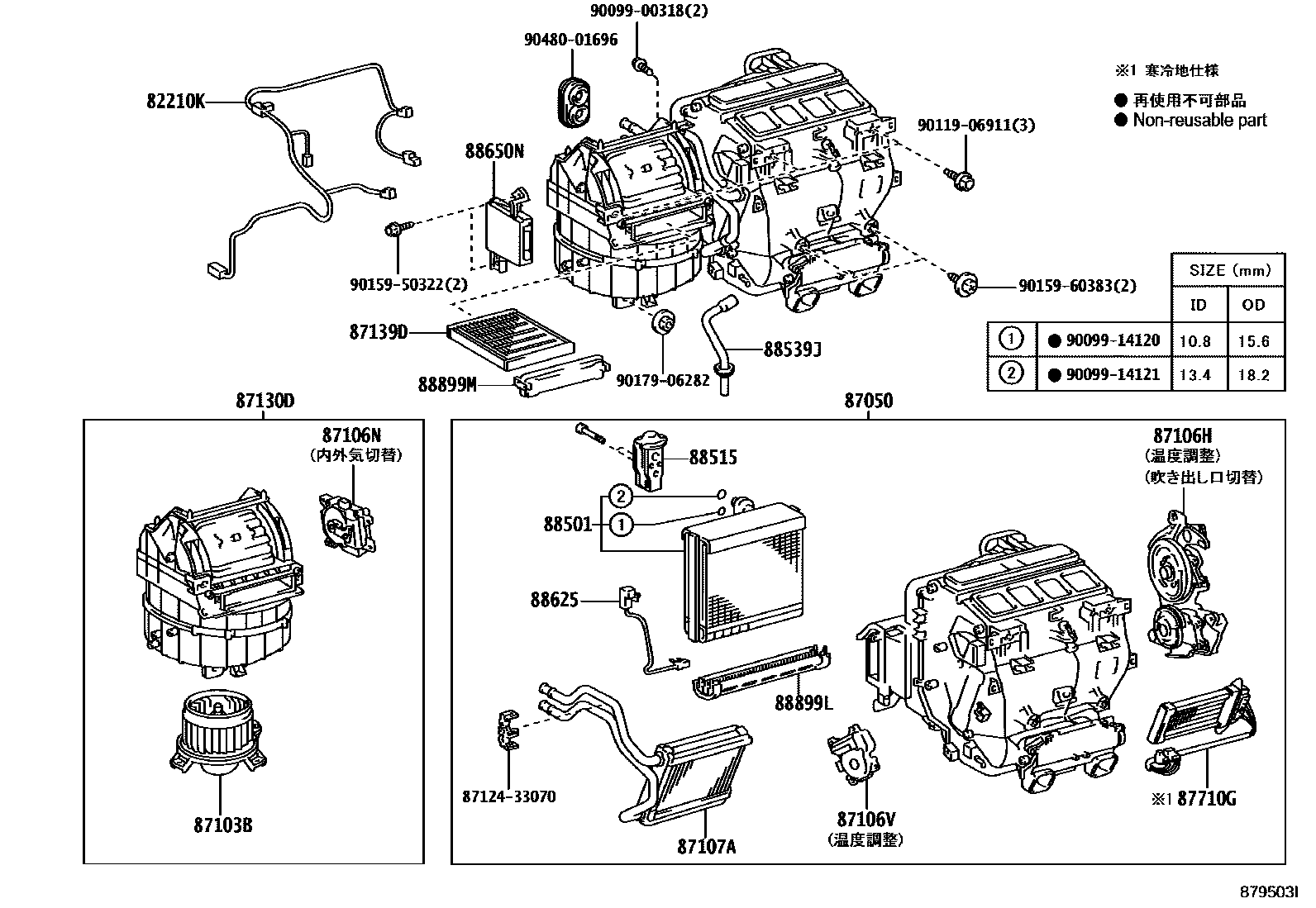

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1���� 0002 1��,��(���) 0003 1��,��(���)

82210KHARNESS ASSY, AIR CONDITIONER

main82212-28030iZRR7#..CBU,IV5201004-201401

87050RADIATOR ASSY, AIR CONDITIONER

main87050-28631supersedes 87050-28622iZRR7#..CBU,IV5200706-200709

main87050-28632supersedes 87050-28622iZRR7#..CBU,IV5201004-201401

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-33100iZRR7#..CBU,IV5201004-201401

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-28191iZRR7#..CBU,IV5200706-201004

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-33280iZRR7#..CBU,IV5200706-201004

87106VSERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2)

main87106-33260iZRR7#..CBU,IV5200706-201004

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-33120iZRR7#..CBU,IV5200706-201004

87130DBLOWER ASSY

main87130-28550supersedes 87130-28540iZRR7#..CBU,IV5200706-201004

87139DELEMENT, AIR REFINER

main87139-30040iZRR7#..CBU,IV5200706-201004

main87139-50060iZRR7#..CBU,IV5201004-201204

main87139-50100iZRR7#..CBU,IV5201205-201401

87710GQUICK HEATER ASSY

main87710-28090iZRR7#..CBU,IV5200706-200810

main87710-28091iZRR7#..CBU,IV5201004-201401

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-28400iZRR7#..CBU,IV5200709-200904

main88501-33190iZRR7#..CBU,IV5200706-200709

main88501-48310iZRR7#..CBU,IV5200904-201004

main88501-48311iZRR7#..CBU,IV5201007-201401

88515VALVE, COOLER EXPANSION

main88515-33020iZRR7#..CBU,IV5200706-201004

88539JHOSE, DRAIN COOLER

main88539-28330iZRR7#..CBU,IV5200706-201004

88625THERMISTOR, COOLER, NO.1

main88625-33190iZRR7#..CBU,IV5200706-201004

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-28B20iZRR7#..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU200706-201004

main88650-28B21iZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..CBU201004-201401

main88650-28B30iZRR7#..05S; ZRR7#..08S..(S,SI,X,Z,ZS)..CBU; ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU200706-201004

main88650-28B31iZRR7#..05S; ZRR7#..IV5;ZRR7#..G,V; ZRR70..07S..SI..CBU;ZRR75..VOXY..X..CBU;ZRR75..07S..(SI,ZS)..CBU;ZRR70..VOXY..07S..(X,ZS)..CBU; ZRR75..S,Z;ZRR70..08S..CBU;ZRR70..07S..(S,Z);ZRR75..08S..(SI,ZS)..CBU201004-201401

88899LPARTS, COOLING UNIT

main88899-33050iZRR7#..CBU,IV5201004-201401

88899MPLATE, COVER(FOR AIR FILTER)

main88899-33040iZRR7#..CBU,IV5200706-201004

8712433070CLAMP, HEATER

main87124-33070

9009900318

main90099-00318

9009914120

main90099-14120

9009914121

main90099-14121

9011906911

main90119-06911

9015950322

main90159-50322

9015960383

main90159-60383

9017906282

main90179-06282

9048001696

main90480-01696
