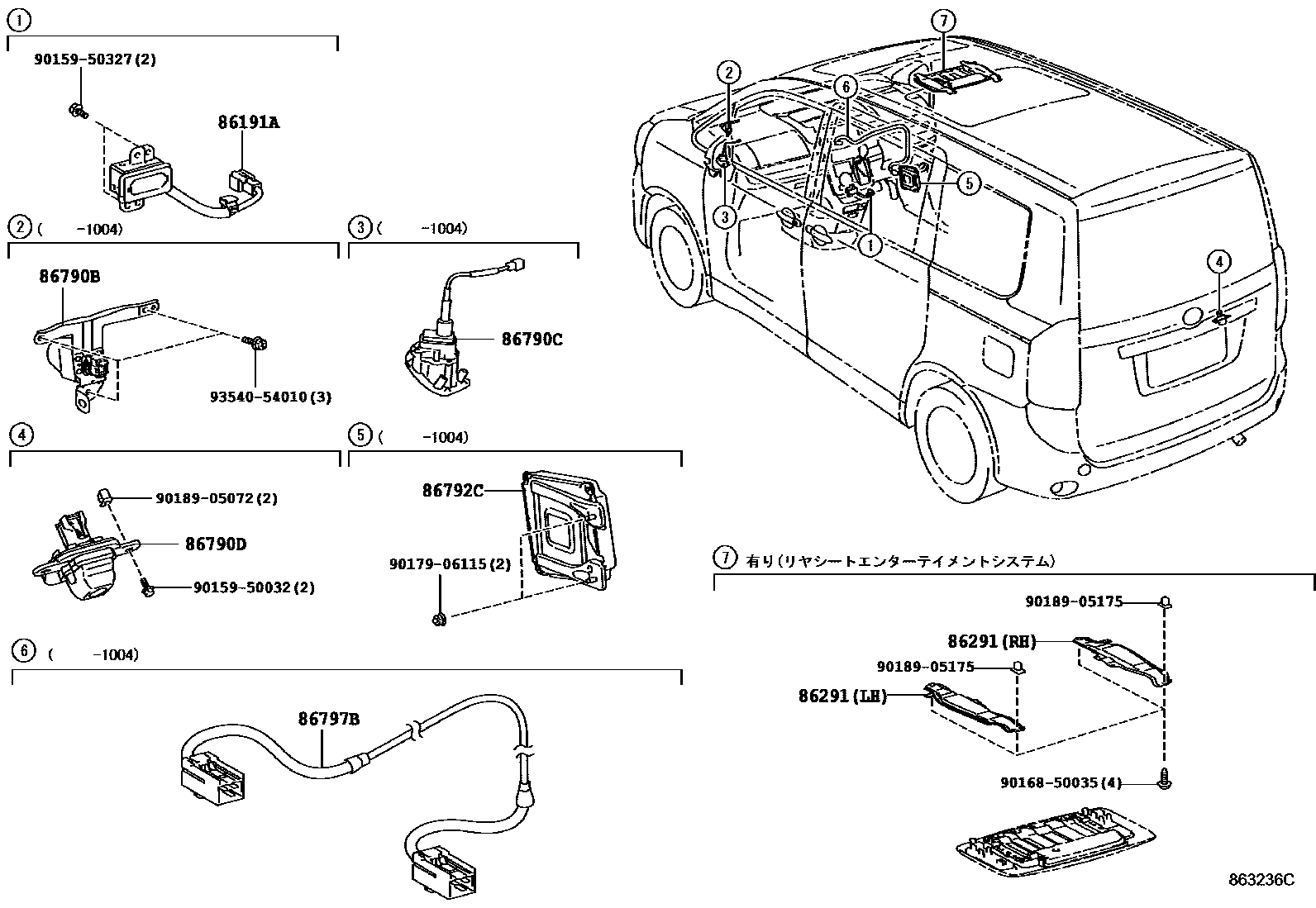

CAMERA & REAR MONITOR DISPLAY
86191ATERMINAL, VIDEO(VIDEO ADAPTER)
main86191-28090-B0iZRR75..07S..HTWC..CBU;ZRR70..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5);ZRR75..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200706-201004
86291BRACKET, TELEVISION
main86291-28170iZRR7#..CBU,IV5; ZRR70..(G,S,SI,V,Z,ZS)..CBU;ZRR75..07S..(G,S,SI,V,Z,ZS)..CBU201004-201401
86790BCAMERA ASSY, TELEVISION, FR
main86790-28360iZRR75..07S..HTWC..CBU;ZRR70..(G,TRASX,V,X,YY,Z,ZS)..(CBU,IV5);ZRR75..(05S,08S)..(G,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200706-201004
86790CCAMERA ASSY, TELEVISION, SIDE
86790DCAMERA ASSY, TELEVISION, RR
86792CCOMPUTER, PARKING ASSIST
main86792-28270iZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR75..08S..(G,S,SI,V,Z,ZS)..CBU;ZRR70..(G,S,SI,V,Z,ZS)..(CBU,IV5); ZRR7#..NOAH..(05S,08S)..(X,YY)..CBU; ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU200706-201004
86797BWIRE, PARKING ASSIST
main86797-28040iZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR75..08S..(G,S,SI,V,Z,ZS)..CBU;ZRR70..(G,S,SI,V,Z,ZS)..(CBU,IV5); ZRR7#..NOAH..(05S,08S)..(X,YY)..CBU; ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU; ZRR70..CBU,IV5;ZRR75..07S..HTWC..CBU;ZRR75..(05S,08S)..(CBU,IV5)200706-201004
9015950032
main90159-50032
9015950327
main90159-50327
9016850035
main90168-50035
9017906115
main90179-06115
9018905072
main90189-05072
9018905175
main90189-05175
9354054010
main93540-54010
14 parts on this diagram · 1 diagram in section
