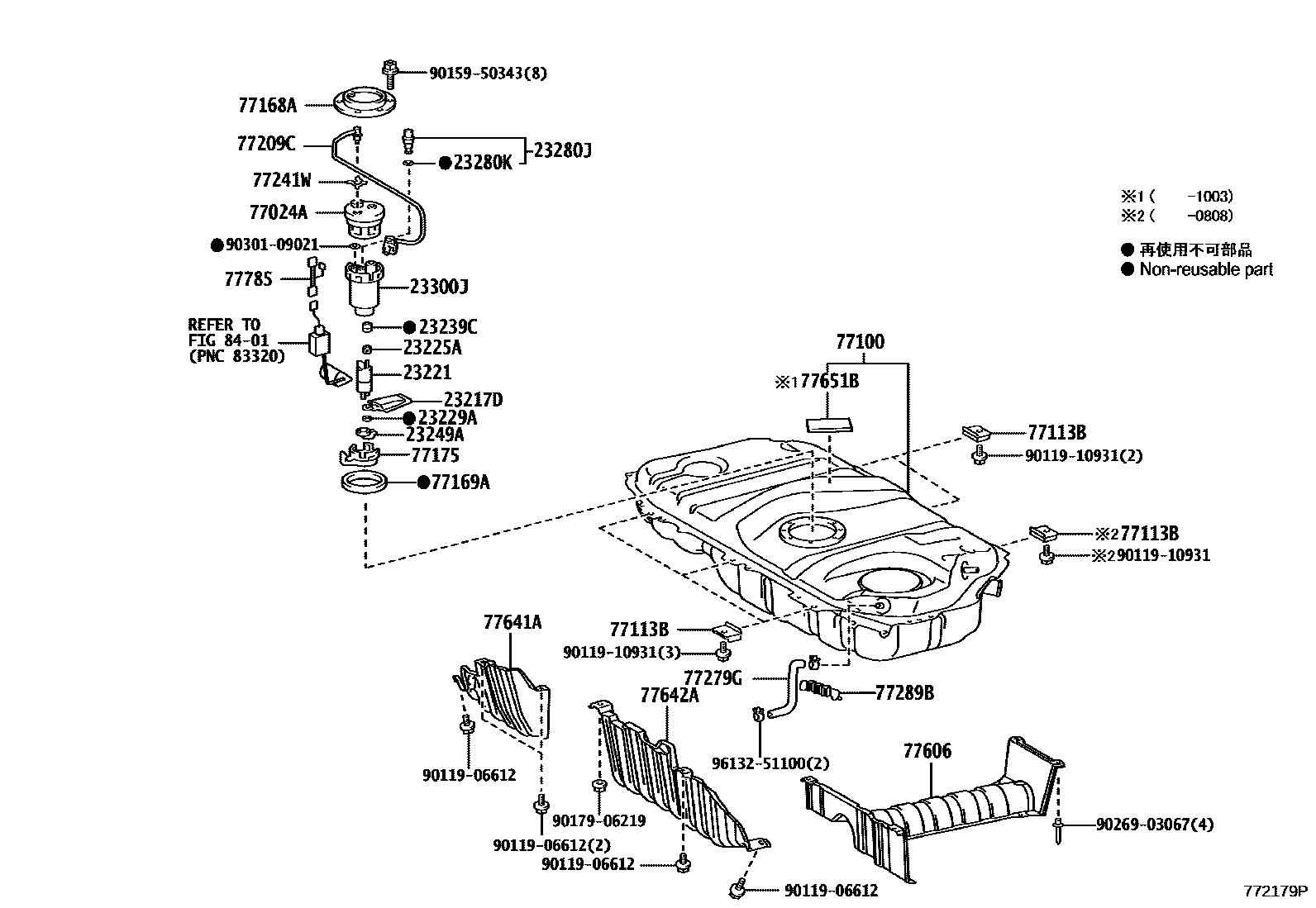

FUEL TANK & TUBE
23217DFILTER, FUEL PUMP
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23229ACLIP(FOR FUEL PUMP FILTER)
23239CSEAL, FUEL PUMP FILTER
23249ARUBBER, CUSHION(FOR FUEL PUMP)
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
23300JFILTER ASSY, FUEL
77024APLATE SUB-ASSY, FUEL SUCTION
77100TANK ASSY, FUEL
77113BPLATE, FUEL TANK SIDE
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77209CTUBE SUB-ASSY, FUEL TANK MAIN
77241WCLIP, TUBE JOINT
77279GHOSE, FUEL, NO.2
77289BCLAMP, FUEL TUBE, NO.3
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77641APROTECTOR, FUEL TANK, NO.1
77642APROTECTOR, FUEL TANK, NO.2
77651BCUSHION, FUEL TANK
77785HARNESS, FUEL PUMP
8401SWITCH & RELAY & COMPUTER
9011906612
main90119-06612
9011910931
main90119-10931
9015950343
main90159-50343
9017906219
main90179-06219
9026903067
main90269-03067
9030109021
main90301-09021
9613251100
main96132-51100
32 parts on this diagram · 6 diagrams in section
