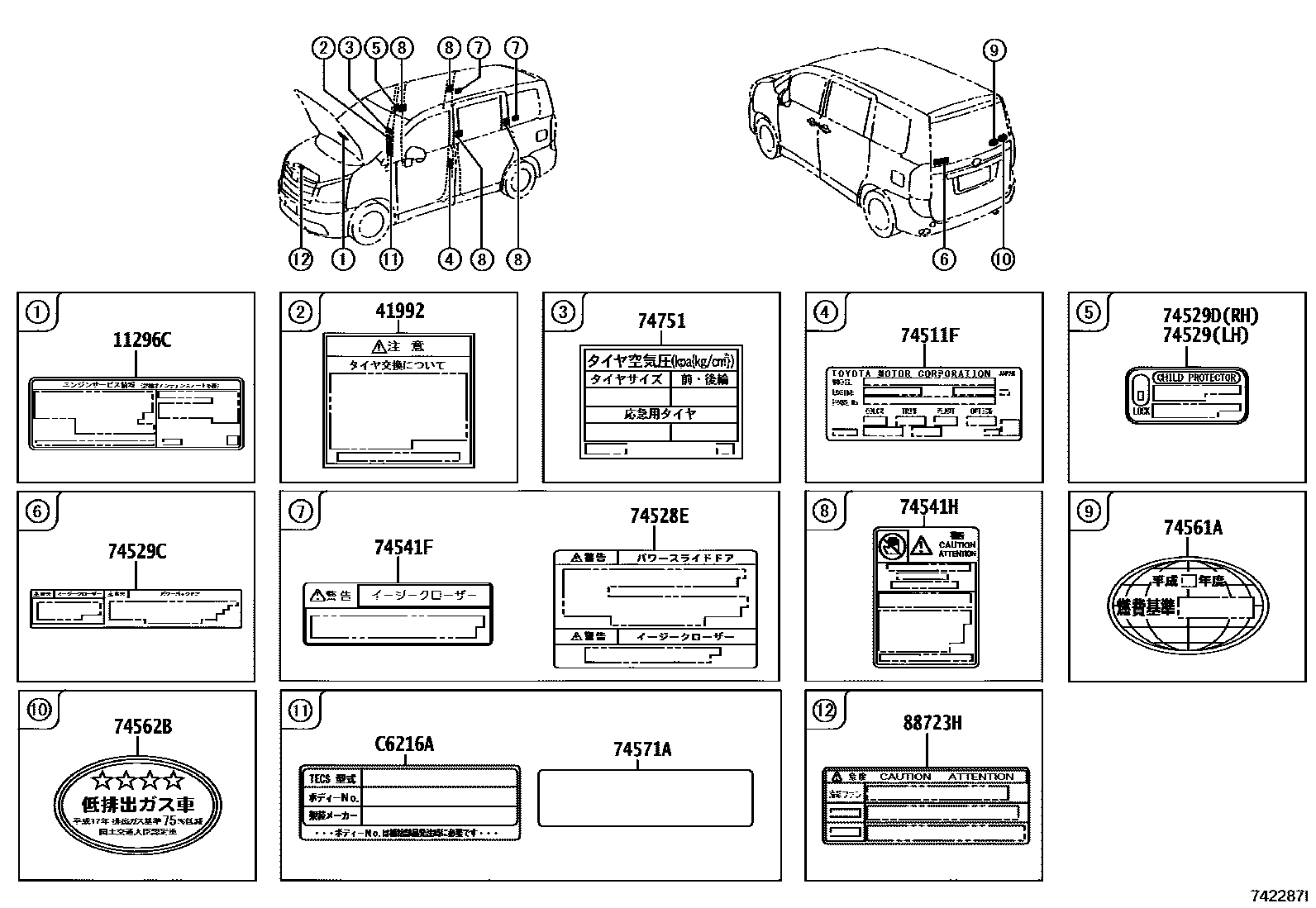

CAUTION PLATE

0001 1 0002 1 0003 1 0004 1 0005 1

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-37010i3ZRFAE..ZRR7#..CBU,IV5201004-201401

41992LABEL, DIFFERENTIAL NOTICE

main41992-33010iZRR75..CBU,IV5201004-201401

74511FLABEL, NAME (IDENTIFICATION LASER LABEL)

main74511-2B300iZRR7#..CBU,IV5200706-201004

74528ELABEL, POWER SLIDE DOOR NOTICE

main74528-28141×2iZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5); ZRR7#..08S..X..CBU; ZRR7#..G,V; ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-200812

main74528-28220×2iZRR7#..(S,X,Z)..CBU; ZRR7#..(SI,TRASX,X,YY,ZS)..(CBU,IV5); ZRR7#..G,V; ZRR7#..X..IV5;ZRR7#..(SI,ZS)..(CBU,IV5); ZRR70..(SI,X,ZS)..CBU201004-201401

74529PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION

main69339-12010iZRR7#..CBU,IV5200706-200812

main69339-28010iZRR7#..CBU,IV5200812-201004

main69339-58030iZRR7#..CBU,IV5201204-201401

74529CPLATE, BACK DOOR CAUTION

main74529-28030iZRR70..(G,SI,V,X,ZS)..CBU201004-201401

main74529-44010iZRR70..G,V200706-200812

74529DPLATE, CHILD PROTECTOR LOCK CAUTION

main69339-12010iZRR7#..CBU,IV5200706-200812

main69339-28010iZRR7#..CBU,IV5200812-201004

main69339-58030iZRR7#..CBU,IV5201204-201401

74541FLABEL, SLIDE DOOR GLASS CAUTION

main74528-26080iZRR7#..08S..X..CBU; ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-200812

main74528-28200iZRR7#..(S,X,Z)..CBU; ZRR7#..X..IV5;ZRR7#..(SI,ZS)..(CBU,IV5)201004-201401

74541HPLATE, BODY CAUTION

main74541-26060×4iZRR7#..CBU,IV5200706-200812

main74541-28100×2iZRR7#..CBU,IV5201004-201401

main74541-28110×4iZRR7#..CBU,IV5200812-201004

74561ALABEL, FUEL CONSUMPTION INFORMATION

main74561-28020iZRR70..CBU;ZRR75..HTWVM..CBU200803-201004

main74561-52040iZRR70..CBU;ZRR75..HTWVM..CBU200706-200803

main74561-58010iZRR70..CBU;ZRR75..(G,S,SI,V,Z,ZS)..CBU; ZRR75..(TRASX,X,YY)..CBU201203-201401

74562BLABEL, EMISSION INFORMATION

main74562-47010iZRR7#..CBU,IV5200706-201004

74571AFILM, LABEL COVER

mainC625944010iZRR70..(S,SI,Z,ZS)..CBU; ZRR70..(SI,ZS)..CBU201006-201102

74751LABEL, TIRE PRESSURE INFORMATION

main42661-28B00iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201004

main42661-28B10iZRR7#..(S,SI,Z,ZS)..(CBU,IV5); ZRR70..(S,SI,Z,ZS)..CBU201004-201401

main42661-D8050iZRR70..(S,SI,Z,ZS)..CBU; ZRR70..(SI,ZS)..CBU201006

88723HLABEL, COOLER SERVICE CAUTION

main88723-20081iZRR7#..CBU,IV5200706-201004

C6216APLATE, IDENTIFICATION NUMBER

main74512-D8010iZRR70..07S..SI..CBU201102

main74512-D8020iZRR70..08S..SI..CBU201102

main74512-D8030iZRR70..07S..S201102

main74512-D8040iZRR70..08S..S201102

main74512-D8050iZRR70..07S..SI..CBU201102

main74512-D8060iZRR70..08S..SI..CBU201102

main74512-D8070iZRR70..07S..ZS..CBU201102

main74512-D8080iZRR70..08S..ZS..CBU201102

main74512-D8090iZRR70..07S..Z201102

main74512-D8100iZRR70..08S..Z201102

main74512-D8110iZRR70..07S..ZS..CBU201102

main74512-D8120iZRR70..08S..ZS..CBU201102

mainC6216D3020iZRR70..(S,SI,Z,ZS)..CBU; ZRR70..(SI,ZS)..CBU201006-201102

15 parts on this diagram · 5 diagrams in section
