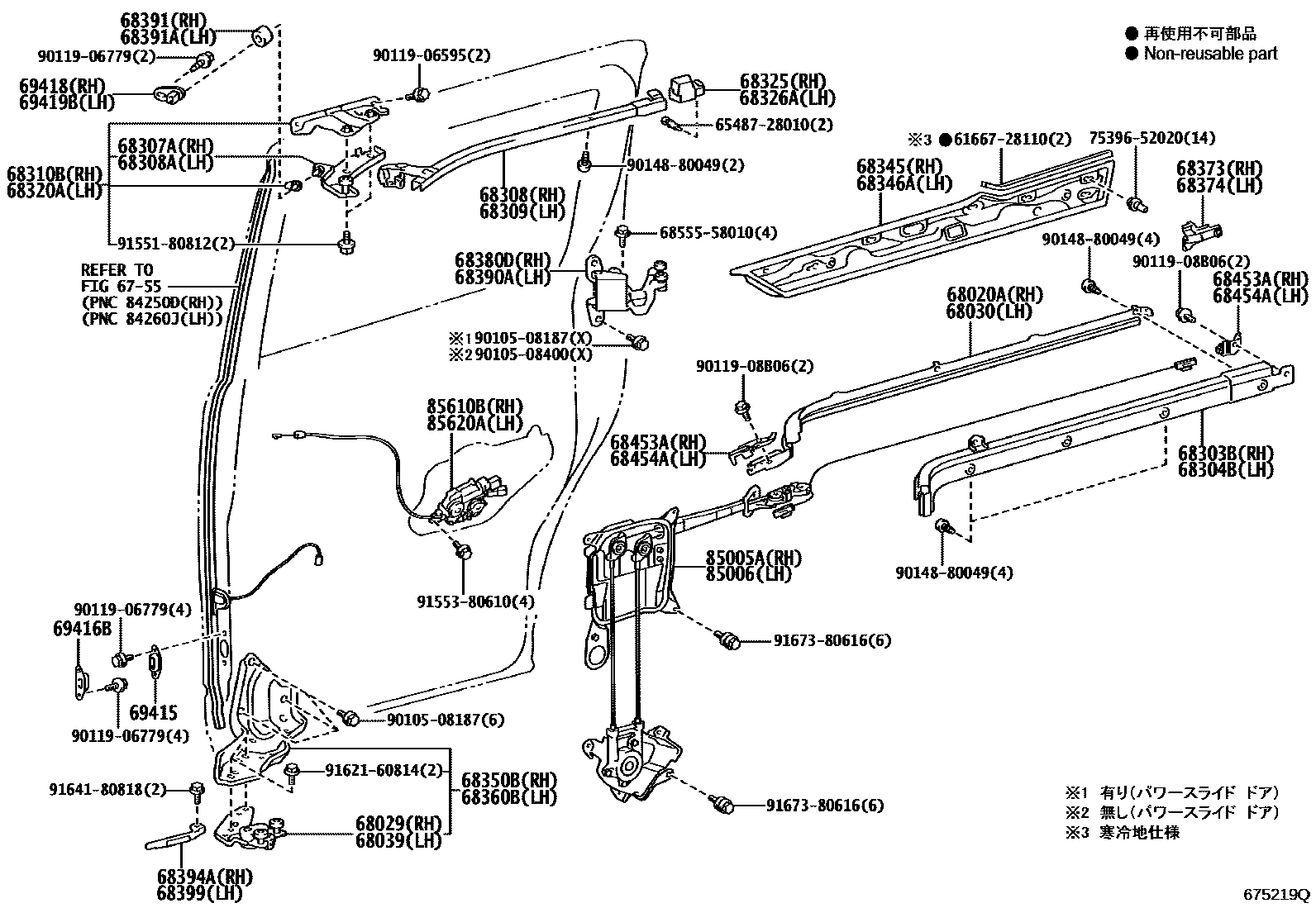

SLIDE ROLLER & RAIL

6755REAR DOOR PANEL & GLASS

→ Go to FIG 67-55

68020AGUIDE ASSY, SLIDE DOOR CABLE, RH

main68020-28020supersedes 68020-28030iZRR7#..(SI,TRASX,X,YY,ZS)..(CBU,IV5); ZRR7#..G,V; ZRR70..(SI,X,ZS)..CBU201004-201401

main68020-28030iZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5)201004-201401

68029BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER

main68029-28070iZRR7#..CBU,IV5201104-201401

main68029-28080iZRR7#..G,V200905-201004

68030GUIDE ASSY, SLIDE DOOR CABLE

main68030-28020supersedes 68030-28030iZRR7#..(S,X,Z)..CBU; ZRR7#..(TRASX,X,YY)..CBU; ZRR7#..X..IV5;ZRR7#..(G,SI,V,ZS)..(CBU,IV5); ZRR70..X..CBU201004-201401

main68030-28030iZRR7#..(S,TRASX,X,YY,Z)..CBU201004-201401

68039BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH

main68039-28080iZRR7#..CBU,IV5200706-200904

main68039-28090iZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)200905-201004

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-28090iZRR7#..CBU,IV5200706-201004

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-28120iZRR7#..CBU,IV5200706-201004

68307AROLLER SUB-ASSY, SLIDE DOOR

main68301-28040iZRR7#..CBU,IV5200706-200901

main68301-28041iZRR7#..G,V200902-201004

68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH

main68308-28060iZRR7#..CBU,IV5200706-201004

68308AROLLER SUB-ASSY, SLIDE DOOR

main68302-28030iZRR7#..CBU,IV5200706-200901

main68302-28031iZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)200902-201004

68309RAIL SUB-ASSY, SLIDE DOOR, UPPER LH

main68309-28060iZRR7#..CBU,IV5200706-201004

68310BROLLER ASSY, SLIDE DOOR, UPPER RH

main68310-28070iZRR7#..CBU,IV5200706-200901

main68310-28071iZRR7#..G,V200902-201004

68320AROLLER ASSY, SLIDE DOOR, UPPER, LH

main68320-28080iZRR7#..CBU,IV5200706-200901

main68320-28081iZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)200902-201004

68325CUSHION, SLIDE DOOR UPPER RAIL, RH

main68325-28040iZRR7#..CBU,IV5200706-201004

68326ACUSHION, SLIDE DOOR UPPER RAIL, LH

main68326-28040iZRR7#..CBU,IV5200706-201004

68345COVER, SLIDE DOOR CENTER RAIL

main60835-28010iZRR7#..CBU,IV5200706-201004

68346ACOVER, SLIDE DOOR CENTER RAIL, LH

main60836-28010iZRR7#..CBU,IV5201004-201401

68350BROLLER ASSY, SLIDE DOOR, LOWER RH

main68350-28070iZRR7#..CBU,IV5201104-201401

main68350-28080iZRR7#..CBU,IV5201004-201103

68360BROLLER ASSY, SLIDE DOOR, LOWER LH

main68360-28090iZRR7#..CBU,IV5200706-200904

main68360-28100iZRR7#..CBU,IV5201004-201103

68373MOULDING, SLIDE RAIL END, RH

main68373-28070iZRR7#..CBU,IV5200706-201004

68374MOULDING, SLIDE RAIL END, LH

main68374-28140iZRR7#..CBU,IV5201004-201401

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-28070supersedes 68380-28080iZRR7#..G,V200706-201004

main68380-28080iZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5)201004-201008

main68380-28090iZRR7#..CBU,IV5201008-201401

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-28090supersedes 68390-28100iZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)200706-201004

main68390-28100iZRR7#..(S,TRASX,X,YY,Z)..CBU201004-201008

main68390-28110iZRR7#..CBU,IV5201008-201401

68391CUSHION, SLIDE DOOR UPPER ROLLER, RH

main68391-28040iZRR7#..CBU,IV5200706-201004

68391ACUSHION, SLIDE DOOR UPPER ROLLER, LH

main68391-28040iZRR7#..CBU,IV5200706-201004

68394APLATE, SLIDE DOOR LOWER RAIL, RH

main68394-28020iZRR7#..CBU,IV5201004-201401

68399PLATE, SLIDE DOOR LOWER RAIL, LH

main68399-28030iZRR7#..CBU,IV5201004-201401

68453ABRACKET, SLIDE DOOR RAIL COVER, NO.2 RH

main68451-28030iZRR7#..(SI,TRASX,X,YY,ZS)..(CBU,IV5); ZRR7#..G,V; ZRR70..(SI,X,ZS)..CBU201004-201401

main68453-28010iZRR7#..(SI,TRASX,X,YY,ZS)..(CBU,IV5); ZRR7#..G,V; ZRR70..(SI,X,ZS)..CBU201004-201401

68454ABRACKET, SLIDE DOOR RAIL COVER, NO.2 LH

main68452-28030iZRR7#..(05S,08S)..(TRASX,X,YY)..CBU; ZRR7#..08S..X..CBU; ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)200706-201004

main68454-28010iZRR7#..(S,X,Z)..CBU; ZRR7#..(TRASX,X,YY)..CBU; ZRR7#..X..IV5;ZRR7#..(G,SI,V,ZS)..(CBU,IV5); ZRR70..X..CBU201004-201401

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-28021×2iZRR7#..CBU,IV5201004-201401

69416BSTOPPER, SLIDE DOOR DOWN MALE

main69046-28020×2iZRR7#..CBU,IV5201004-201401

main69046-28080×2iZRR7#..CBU,IV5200706-200806

main69046-58010×2iZRR7#..CBU,IV5200807-200909

69418STOP, SLIDE DOOR OPEN

main69418-28100iZRR7#..CBU,IV5200706-201004

69419BSTOP, SLIDE DOOR OPEN, LH

main69419-28040iZRR7#..CBU,IV5201004-201401

85005AMOTOR UNIT, SLIDE DOOR, RH

main85005-28041iZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5); ZRR7#..G,V200706-200812

main85005-28080iZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5); ZRR7#..G,V200812-201004

main85005-28081iZRR7#..(SI,TRASX,X,YY,ZS)..(CBU,IV5); ZRR7#..G,V; ZRR70..(SI,X,ZS)..CBU201004-201005

main85005-28090iZRR7#..(SI,TRASX,X,YY,ZS)..(CBU,IV5); ZRR7#..G,V; ZRR70..(SI,X,ZS)..CBU201005-201204

main85005-28180iZRR7#..(SI,TRASX,X,YY,ZS)..(CBU,IV5); ZRR7#..G,V; ZRR70..(SI,X,ZS)..CBU201204-201305

main85005-28181iZRR7#..(SI,TRASX,X,YY,ZS)..(CBU,IV5); ZRR7#..G,V; ZRR70..(SI,X,ZS)..CBU201306-201401

85006MOTOR UNIT, SLIDE DOOR, LH

main85006-28060iZRR7#..(05S,08S)..(TRASX,X,YY)..CBU; ZRR7#..08S..X..CBU; ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)200812-201004

main85006-28061iZRR7#..(S,X,Z)..CBU; ZRR7#..(TRASX,X,YY)..CBU; ZRR7#..X..IV5;ZRR7#..(G,SI,V,ZS)..(CBU,IV5); ZRR70..X..CBU201004-201005

main85006-28071iZRR7#..(05S,08S)..(TRASX,X,YY)..CBU; ZRR7#..08S..X..CBU; ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)200706-200812

main85006-28090iZRR7#..(S,X,Z)..CBU; ZRR7#..(TRASX,X,YY)..CBU; ZRR7#..X..IV5;ZRR7#..(G,SI,V,ZS)..(CBU,IV5); ZRR70..X..CBU201005-201204

main85006-28160iZRR7#..(S,X,Z)..CBU; ZRR7#..(TRASX,X,YY)..CBU; ZRR7#..X..IV5;ZRR7#..(G,SI,V,ZS)..(CBU,IV5); ZRR70..X..CBU201204-201305

main85006-28161iZRR7#..(S,X,Z)..CBU; ZRR7#..(TRASX,X,YY)..CBU; ZRR7#..X..IV5;ZRR7#..(G,SI,V,ZS)..(CBU,IV5); ZRR70..X..CBU201306-201401

85610BMOTOR ASSY, SLIDE DOOR LOCK RELEASE, RH

main85610-28040iZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5); ZRR7#..G,V200706-201004

85620AMOTOR ASSY, SLIDE DOOR LOCK RELEASE, LH

main85620-28060iZRR7#..(05S,08S)..(TRASX,X,YY)..CBU; ZRR7#..08S..X..CBU; ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)200706-201004

6166728110REINFORCEMENT, SEAT BELT ANCHORAGE, LOWER RH

main61667-28110

6548728010CLIP, CORNER PROTECTOR

main65487-28010

6855558010BOLT, DOOR STAY

main68555-58010

7539652020CLIP, OUTSIDE MOULDING, NO.2

main75396-52020

9010508187

main90105-08187

9010508400

main90105-08400

9011906595

main90119-06595

9011906779

main90119-06779

9011908B06

main90119-08B06

9014880049

main90148-80049

9155180812

main91551-80812

9155380610

main91553-80610

9162160814

main91621-60814

9164180818

main91641-80818

9167380616

main91673-80616

52 parts on this diagram · 1 diagram in section
