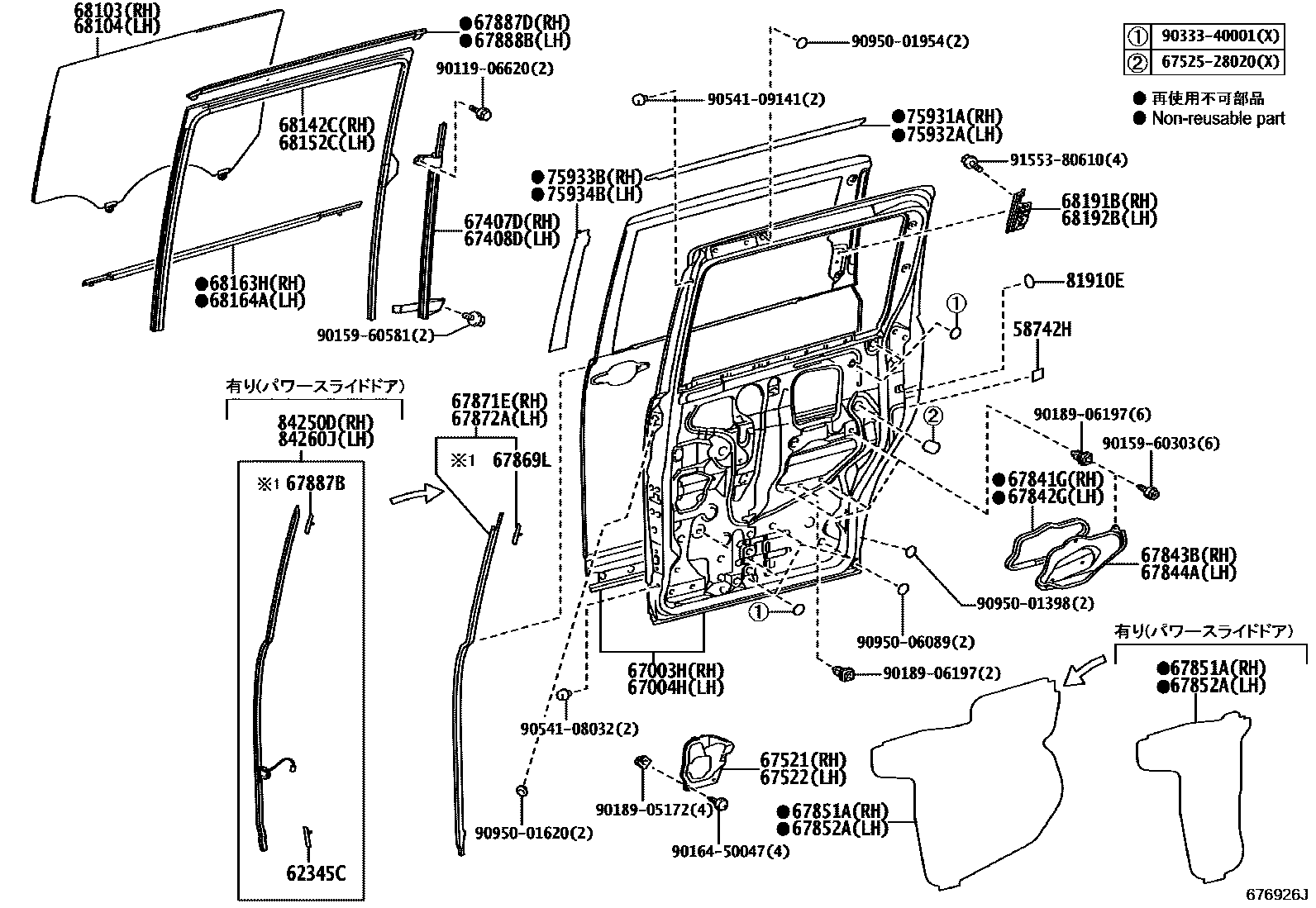

REAR DOOR PANEL & GLASS

0001 1������� 0002 1������� 0003 1������

58742HPROTECTOR, SLIDE DOOR, LH

main58743-28010iZRR7#..CBU,IV5200706-200710

main58743-28020iZRR7#..CBU,IV5201004-201401

62345CCLIP(FOR WEATHERSTRIP, SLIDE DOOR)

main67869-28030iZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5); ZRR7#..G,V200706-201004

main67869-28040iZRR7#..(S,X,Z)..CBU; ZRR7#..(SI,TRASX,X,YY,ZS)..(CBU,IV5); ZRR7#..G,V; ZRR7#..X..IV5;ZRR7#..(SI,ZS)..(CBU,IV5); ZRR70..(SI,X,ZS)..CBU201004-201401

67003HDOOR SUB-ASSY, SLIDE, RH

main67003-28520iZRR7#..(S,SI,Z,ZS)..(CBU,IV5); ZRR7#..08S..(SI,ZS)..CBU201004-201401

main67003-28510iZRR7#..(TRASX,X,YY)..(CBU,IV5); ZRR75..X..CBU;ZRR70..08S..X..CBU201004-201401

main67003-28530supersedes 67003-28510iZRR7#..(TRASX,X,YY)..(CBU,IV5); ZRR7#..G,V; ZRR70..X..CBU; ZRR75..X..CBU;ZRR70..08S..X..CBU201004-201401

main67003-28540iZRR7#..(SI,ZS)..(CBU,IV5); ZRR7#..08S..(SI,ZS)..CBU; ZRR70..(SI,ZS)..CBU201004-201401

main67003-28550iZRR7#..05S; ZRR7#..X..CBU201004-201401

main67003-28560iZRR7#..(S,SI,Z,ZS)..CBU200706-201004

main67003-28570iZRR7#..05S; ZRR7#..G,V; ZRR7#..X..CBU; ZRR70..X..CBU201004-201401

main67003-28580iZRR7#..(SI,ZS)..CBU; ZRR70..(SI,ZS)..CBU201004-201401

67004HDOOR SUB-ASSY, SLIDE, LH

main67004-28510supersedes 67004-28420iZRR7#..(05S,08S)..(TRASX,X,YY)..CBU; ZRR7#..08S..X..CBU; ZRR7#..G,V;ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU200706-201004

main67004-28520iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201004

main67004-28530iZRR7#..05S; ZRR7#..X..CBU201004-201401

main67004-28540iZRR7#..05S; ZRR7#..G,V; ZRR7#..X..CBU; ZRR70..X..CBU201004-201401

main67004-28550iZRR7#..(S,SI,Z,ZS)..CBU200706-201004

main67004-28600supersedes 67004-28590iZRR7#..S,Z201004-201401

67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH

main67407-28040iZRR7#..CBU,IV5201004-201401

67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH

main67408-28070iZRR7#..CBU,IV5201004-201401

67521COVER SUB-ASSY, SLIDE DOOR PANEL, RH

main67521-28050iZRR7#..CBU,IV5200706-201004

67522COVER SUB-ASSY, SLIDE DOOR PANEL, LH

main67522-28040iZRR7#..CBU,IV5200706-201004

67841GCOVER, SLIDE DOOR SERVICE HOLE, RH

main67846-28010iZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5); ZRR7#..G,V200706-201004

67842GCOVER, SLIDE DOOR SERVICE HOLE, LH

main67846-28010iZRR7#..(05S,08S)..(TRASX,X,YY)..CBU; ZRR7#..08S..X..CBU; ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)200706-201004

67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH

main67843-28020iZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5); ZRR7#..G,V200706-201004

67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH

main67844-28020iZRR7#..(05S,08S)..(TRASX,X,YY)..CBU; ZRR7#..08S..X..CBU; ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)200706-201004

67851ACOVER, SLIDE DOOR SERVICE HOLE, NO.1

main67851-28110iZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5)201004-201401

main67851-28120supersedes 67851-28110iZRR7#..(SI,TRASX,X,YY,ZS)..(CBU,IV5); ZRR7#..G,V; ZRR70..(SI,X,ZS)..CBU201004-201401

67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2

main67852-28130iZRR7#..(S,TRASX,X,YY,Z)..CBU201004-201401

main67852-28140supersedes 67852-28130iZRR7#..(05S,08S)..(TRASX,X,YY)..CBU; ZRR7#..08S..X..CBU; ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)200706-201004

67869LCLIP, REAR DOOR WEATHERSTRIP

main67869-28010iZRR7#..(05S,08S)..(TRASX,X,YY)..CBU; ZRR7#..08S..X..CBU; ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200712-201004

67871EWEATHERSTRIP, SLIDE DOOR, NO.1 RH

main67865-28040iZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5)200706-200711

main67865-28041iZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5)200712-201004

main67865-28050iZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5)201204-201401

67872AWEATHERSTRIP, SLIDE DOOR, NO.1 LH

main67866-28020iZRR7#..(05S,08S)..(TRASX,X,YY)..CBU200706-200711

main67866-28021iZRR7#..(05S,08S)..(TRASX,X,YY)..CBU200712-201004

main67866-28040iZRR7#..(S,TRASX,X,YY,Z)..CBU201204-201401

67887BCLIP(FOR REAR DOOR WEATHERSTRIP)

main67869-28010×2iZRR7#..(S,X,Z)..CBU; ZRR7#..(SI,TRASX,X,YY,ZS)..(CBU,IV5); ZRR7#..G,V; ZRR7#..X..IV5;ZRR7#..(SI,ZS)..(CBU,IV5); ZRR70..(SI,X,ZS)..CBU201004-201401

67887DWEATHERSTRIP, SLIDE DOOR, NO.2 RH

main67887-28100iZRR7#..CBU,IV5200706-200803

main67887-28101iZRR7#..CBU,IV5200804-200808

main67887-28102iZRR7#..CBU,IV5201004-201401

67888BWEATHERSTRIP, SLIDE DOOR, NO.2 LH

main67888-28110iZRR7#..CBU,IV5200706-200803

main67888-28111iZRR7#..CBU,IV5200804-200808

main67888-28112iZRR7#..CBU,IV5200809-201004

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-28210iZRR7#..CBU,IV5200706-201004

main68103-28211iZRR7#..CBU,IV5201102-201401

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-28230iZRR7#..CBU,IV5200706-201004

main68104-28231iZRR7#..CBU,IV5201102-201401

68142CRUN, REAR DOOR GLASS, RH

main68142-28120iZRR7#..CBU,IV5200706-201004

68152CRUN, REAR DOOR GLASS, LH

main68152-28090iZRR7#..CBU,IV5200706-201004

68163HWEATHERSTRIP, REAR DOOR GLASS, OUTER RH

main68163-28050iZRR7#..CBU,IV5201004-201401

68164AWEATHERSTRIP, REAR DOOR GLASS, OUTER LH

main68164-28050iZRR7#..CBU,IV5201004-201401

68191BRUN, REAR DOOR GLASS, NO.2 RH

main68191-28010iZRR7#..CBU,IV5201004-201401

68192BRUN, REAR DOOR GLASS, NO.2 LH

main68192-28010iZRR7#..CBU,IV5200706-201004

75931ATAPE, BLACK OUT, OUTER UPPER RH

main75931-28040iZRR7#..CBU,IV5200706-201004

75932ATAPE, BLACK OUT, OUTER UPPER LH

main75932-28040iZRR7#..CBU,IV5200706-201004

75933BTAPE, BLACK OUT, OUTER FRONT RH

main75933-28040iZRR7#..CBU,IV5200706-201004

75934BTAPE, BLACK OUT, OUTER FRONT LH

main75934-28040iZRR7#..CBU,IV5201004-201401

81910EREFLECTOR ASSY, REFLEX

main81910-21030×2iZRR7#..CBU,IV5200706-201004

84250DSENSOR ASSY, POWER SLIDE DOOR, RH

main84250-28170iZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5); ZRR7#..G,V200706-200711

main84250-28171iZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5); ZRR7#..G,V200712-201002

main84250-28270iZRR7#..(SI,TRASX,X,YY,ZS)..(CBU,IV5); ZRR7#..G,V; ZRR70..(SI,X,ZS)..CBU201004-201401

84260JSENSOR ASSY, POWER SLIDE DOOR, LH

main84260-28070iZRR7#..(05S,08S)..(TRASX,X,YY)..CBU; ZRR7#..08S..X..CBU; ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)200706-200711

main84260-28071iZRR7#..(05S,08S)..(TRASX,X,YY)..CBU; ZRR7#..08S..X..CBU; ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)200712-201002

main84260-28080iZRR7#..(S,X,Z)..CBU; ZRR7#..(TRASX,X,YY)..CBU; ZRR7#..X..IV5;ZRR7#..(G,SI,V,ZS)..(CBU,IV5); ZRR70..X..CBU201004-201401

6752528020COVER, SLIDE DOOR PANEL, LOWER

main67525-28020

9011906620

main90119-06620

9015960303

main90159-60303

9015960581

main90159-60581

9016450047

main90164-50047

9018905172

main90189-05172

9018906197

main90189-06197

9033340001

main90333-40001

9054108032

main90541-08032

9054109141

main90541-09141

9095001398

main90950-01398

9095001620

main90950-01620

9095001954

main90950-01954

9095006089

main90950-06089

9155380610

main91553-80610

50 parts on this diagram · 3 diagrams in section
